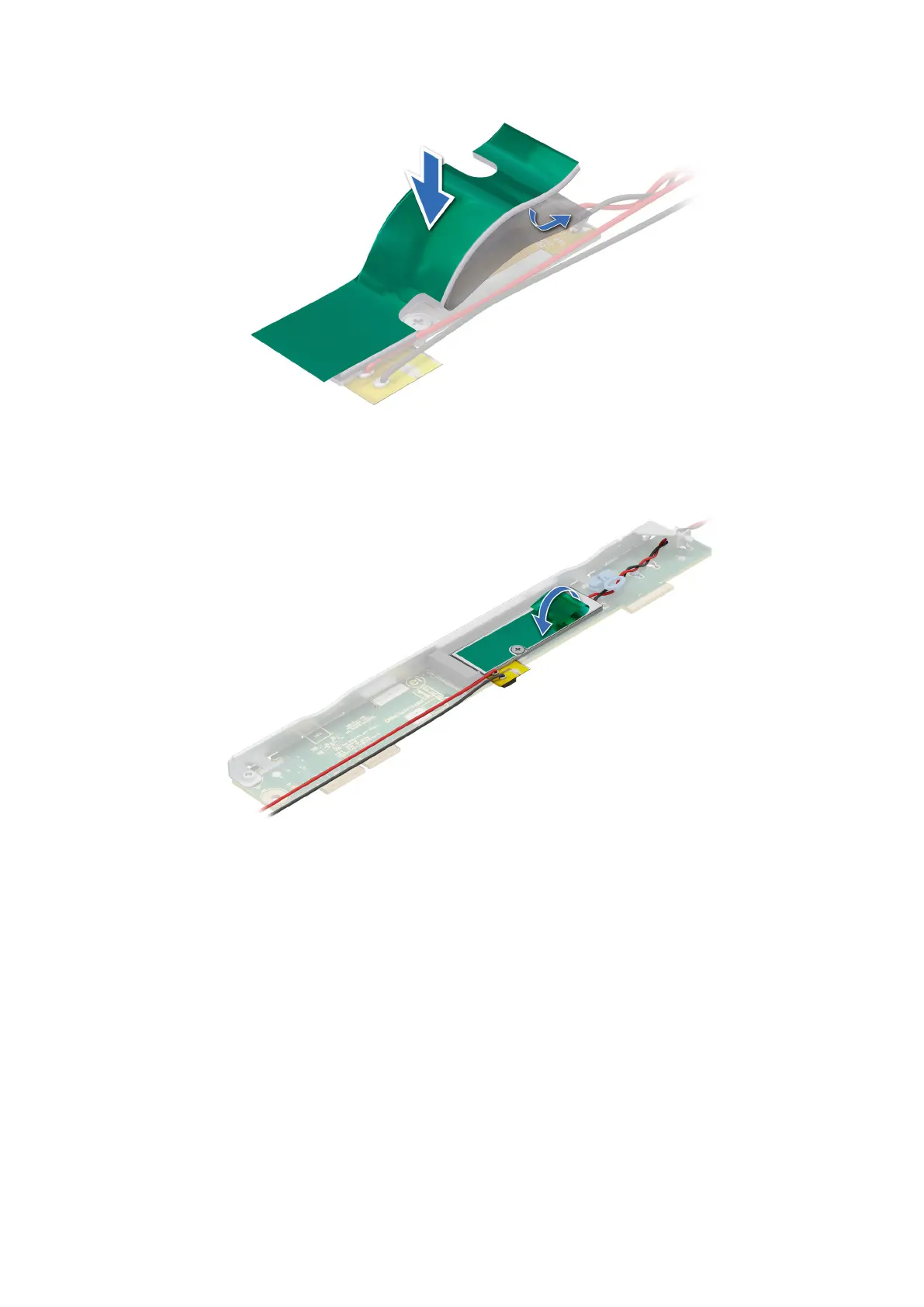

Figure 23. Removing the release paper from thermal pad
2. Pull to remove the cover from thermal pad.
Figure 24. Removing cover from thermal pad
Removing the M.2 direct riser module
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
1. Using a Phillips 2 screwdriver, loosen the captive screw that secure the M.2 direct riser.
2. Lift the riser using the blue touch point to disengage it from the connector on the system board.
Installing and removing system components
65
