Dell PowerEdge XR8620t

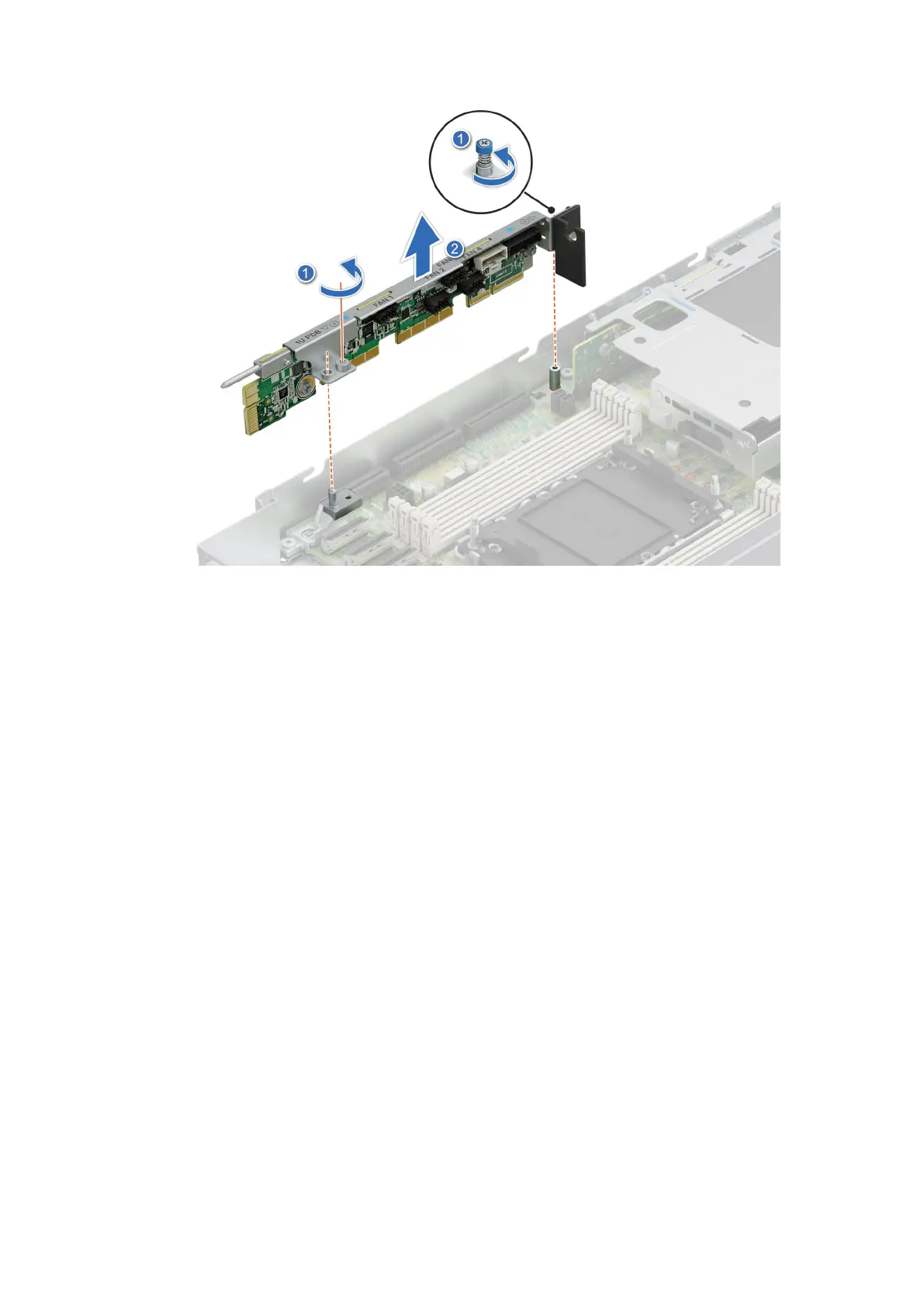

Figure 69. Removing the 1U power distribution board
2. Lift the board to remove it from the system.
Next steps
Replace the 1U power distribution board.
Installing the 1U power distribution board
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the 2U top sled from the 2U node.
4. Remove the Riser 2.
Steps
1. Align the slots of the Power distribution board (PDB) with the fix hook on the 1U node.
2. Using a Phillips 2 screwdriver, tighten the screws to secure the PDB on the 1U sled.
