Steps
1. Using the Phillips 2 screwdriver, loosen the captive screws that secure the side cover to the 2U sled.
2. Slide the side cover outward to remove it from the sled.

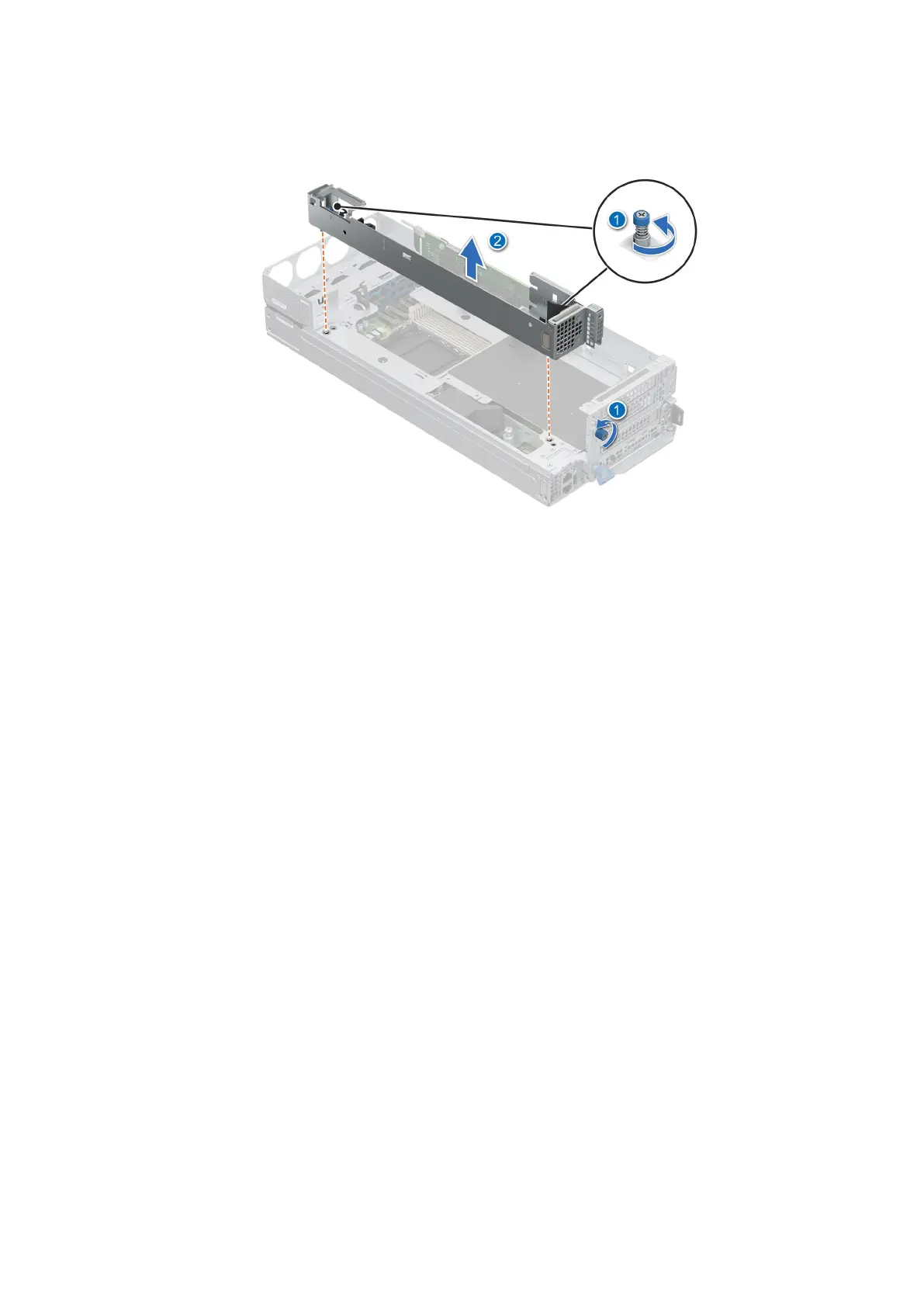

Figure 36. Removing the 2U side cover
Next steps
Remove the 2U top sled from the 2U node.
Installing the side cover
Prerequisites
1. Follow the safety guidelines listed in Safety Instructions.
2. Follow the procedure listed in Before working inside your system.
3. Install the 2U top sled on the 2U node.
Steps
1. Align the side cover with the slot on the 2U sled.
2. Using a Phillips 2 screwdriver, tighten the captive screws to secure the 2U side cover.
74
Installing and removing system components
