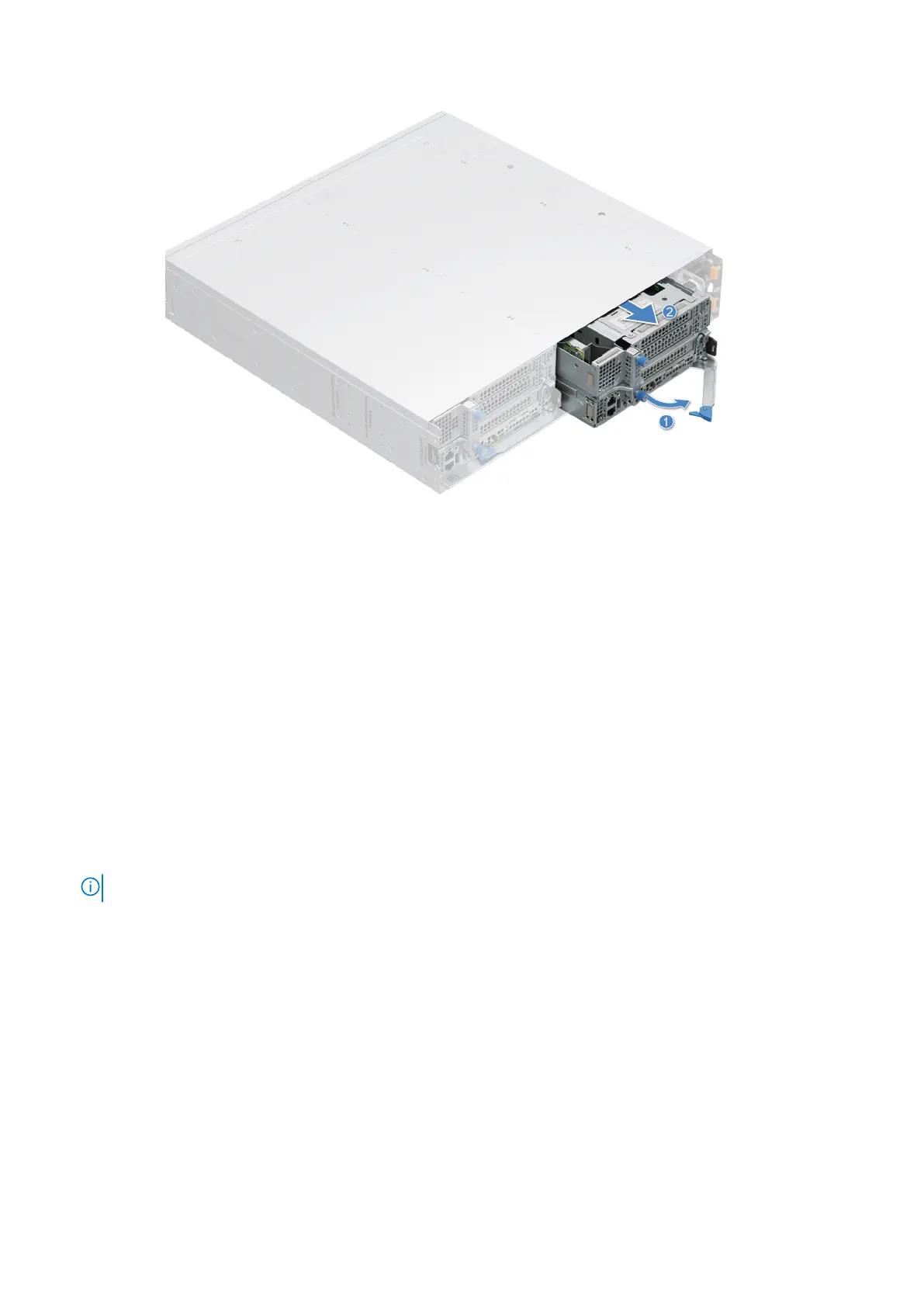

Figure 17. Removing a sled from XR8000r
Next steps
Installing the sled
Installing a sled
Prerequisites
Follow the safety guidelines listed in Safety instructions.
Steps
1. Pull the blue lever on the sled to free the sled handle.
2. Holding the sled with both hands, align the sled along the sled-bay into the chassis.
3. Slide the sled into the chassis, ensure that the sled handle is in lock position.
4. Push the sled handle inwards so that it locks into place and secures the sled in the chassis.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.
Installing and removing system components 59
