Dell PowerEdge XR8620t User Manual

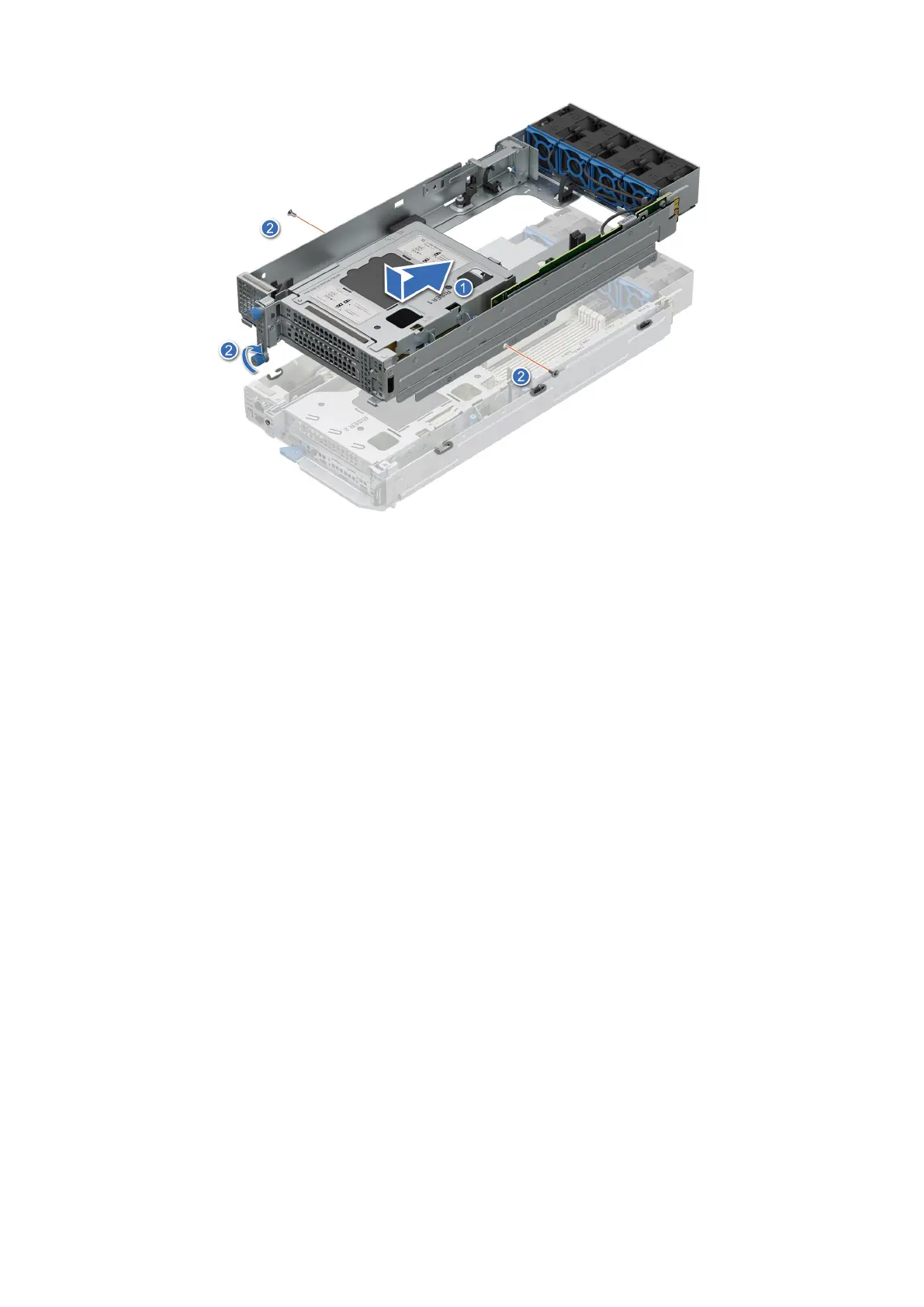

Figure 39. Installing the 2U top sled on the 2U node
Next steps
1. Connect the sideband cables between the 1U and 2U PDBs
2. Connect the Riser1 4x signal cables to connectors on the system board
3. Install the side cover.
4. Install the M.2 direct riser
5. Install the air shroud.
6. Install the sled cover.
7. Follow the procedure listed in After working inside your system
Storage interposer module
Removing the storage interposer module
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the M.2 direct riser module.
Steps
1. Using Phillips 2 screwdriver, remove the screw that secure the storage interposer module to the system.
Installing and removing system components
77
