Dell PowerEdge XR8620t User Manual

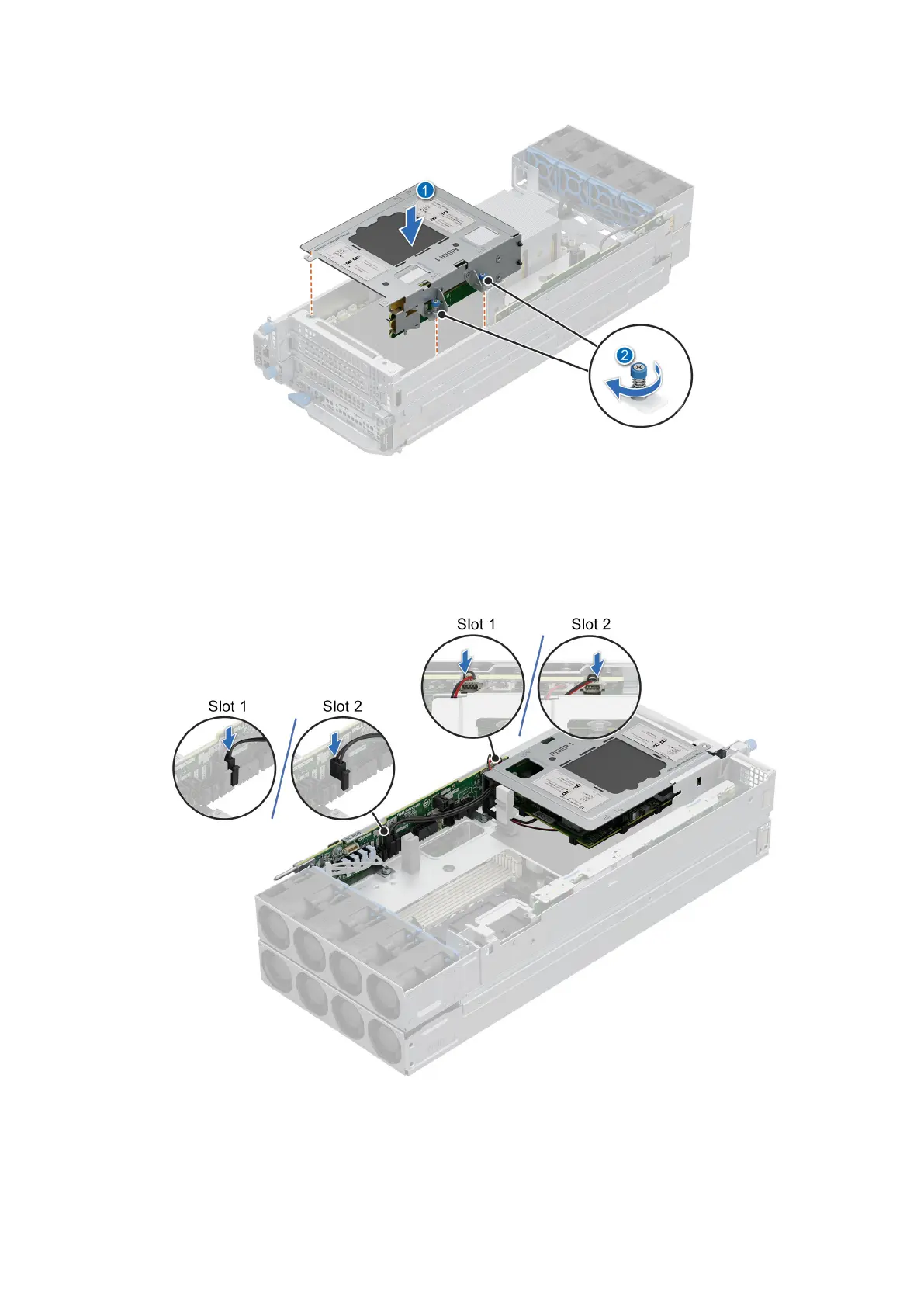

Figure 54. Installing the expansion card riser 1
4. Connect the riser card power cables to 2U PDB and 4x signal cables to connectors on the system board.
5. For HM Configuration, connect heater cables from the HM PCIe card on the riser to the 2U power distribution board (heater
9, heater 10), and connect sensor cables from the PCIe card to sensor ports on the system board (sensor 4, sensor 8).
Figure 55. Connecting cables from Riser 1 to 2U PDB
Installing and removing system components
89
