NOTE: Observe the fan cable routing or make a note of the fan cable routing.
Steps
1. Lower the fan module into the cage until it is seated firmly.
NOTE: The airflow directional arrow outward on the fan indicates Reverse-Air-Flow (RAF).

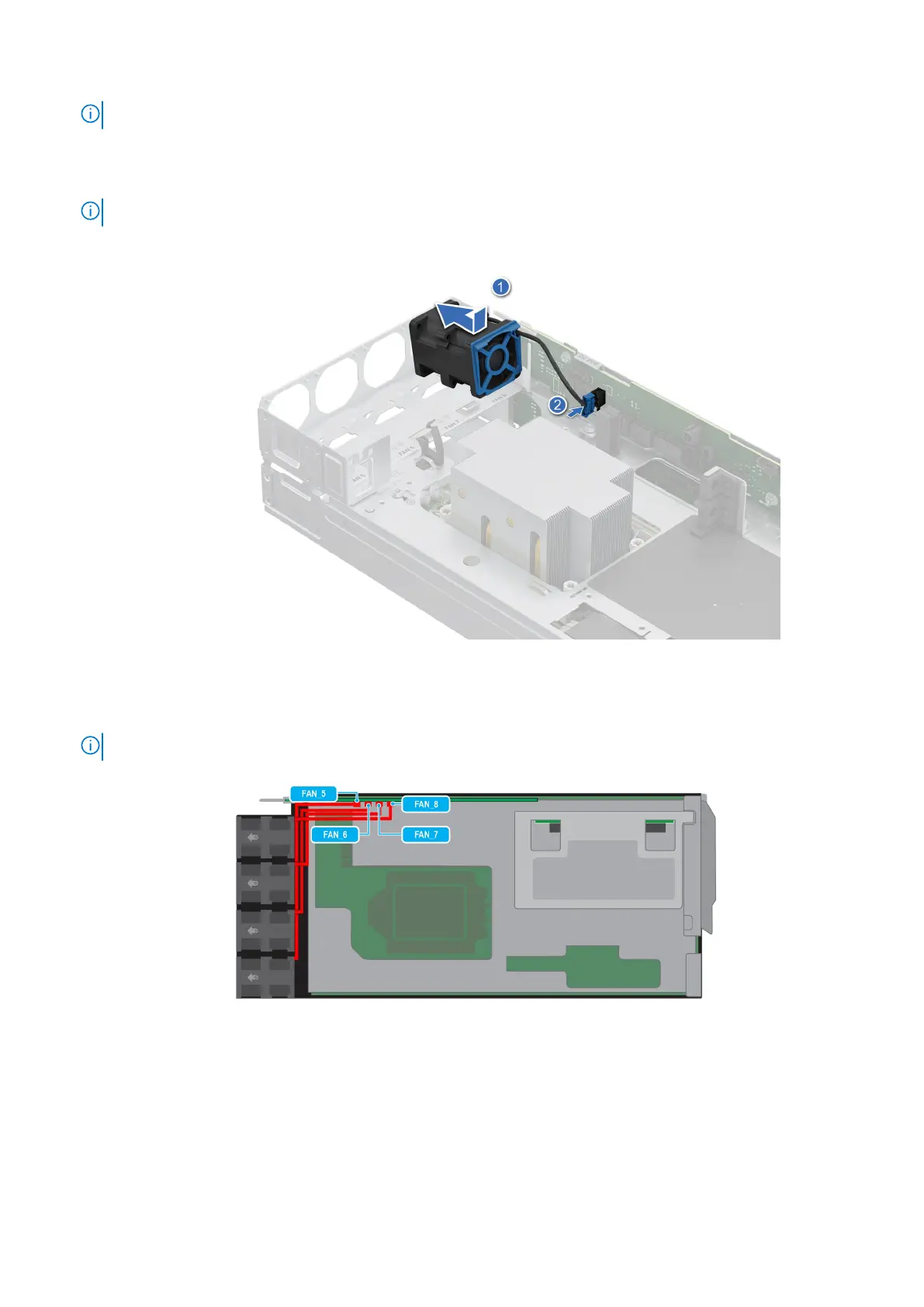

Figure 44. Installing a cooling fan
2. Route the fan cables properly through the fan guard and connect the cable to the connector on the power distribution board
(PDB) of the 2U sled as shown in the image below.
NOTE: Fan 5, 6, 7 and 8 are connected to the 2U PDB.
Figure 45. 2U sled fan cable routing
Next steps
Install the air shroud .
