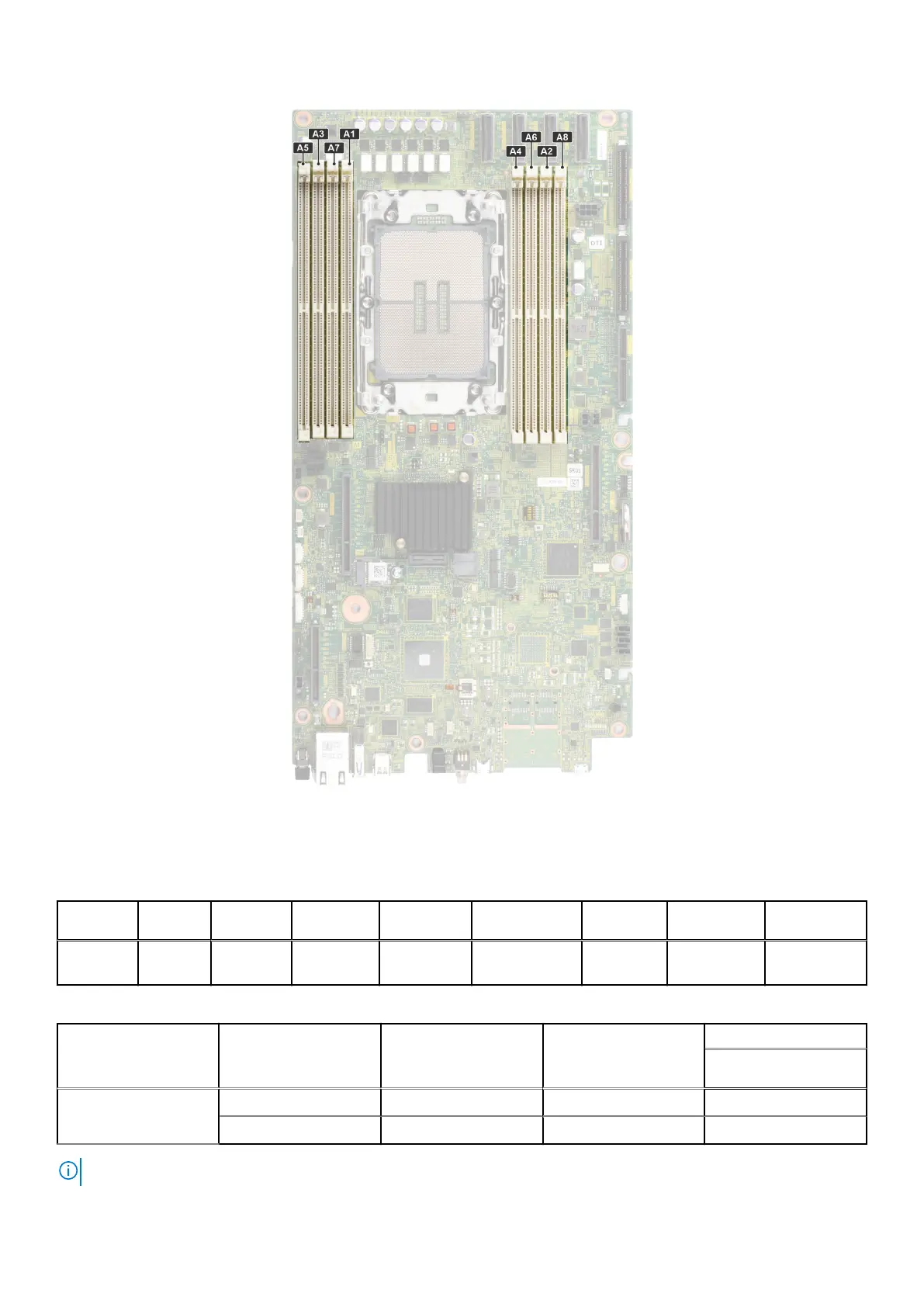

Figure 77. Memory channels
Memory channels are organized as follows:
Table 72.
Memory channels
Processor Channel
A
Channel B Channel C Channel D Channel E Channel F Channel G Channel H
Processor
1
Slots A1 Slots A7 Slots A3 Slots A5 Slots A4 Slots A6 Slots A2 Slots A8
Table 73. Supported memory matrix
DIMM type Rank Capacity DIMM rated voltage Operating Speed
1 DIMM per channel
(DPC)
RDIMM 1 R 16 GB DDR5 (1.1 V) 4800 MT/s
2 R 32 GB, 64 GB DDR5 (1.1 V) 4800 MT/s
NOTE: The processor may reduce the performance of the rated DIMM speed.
