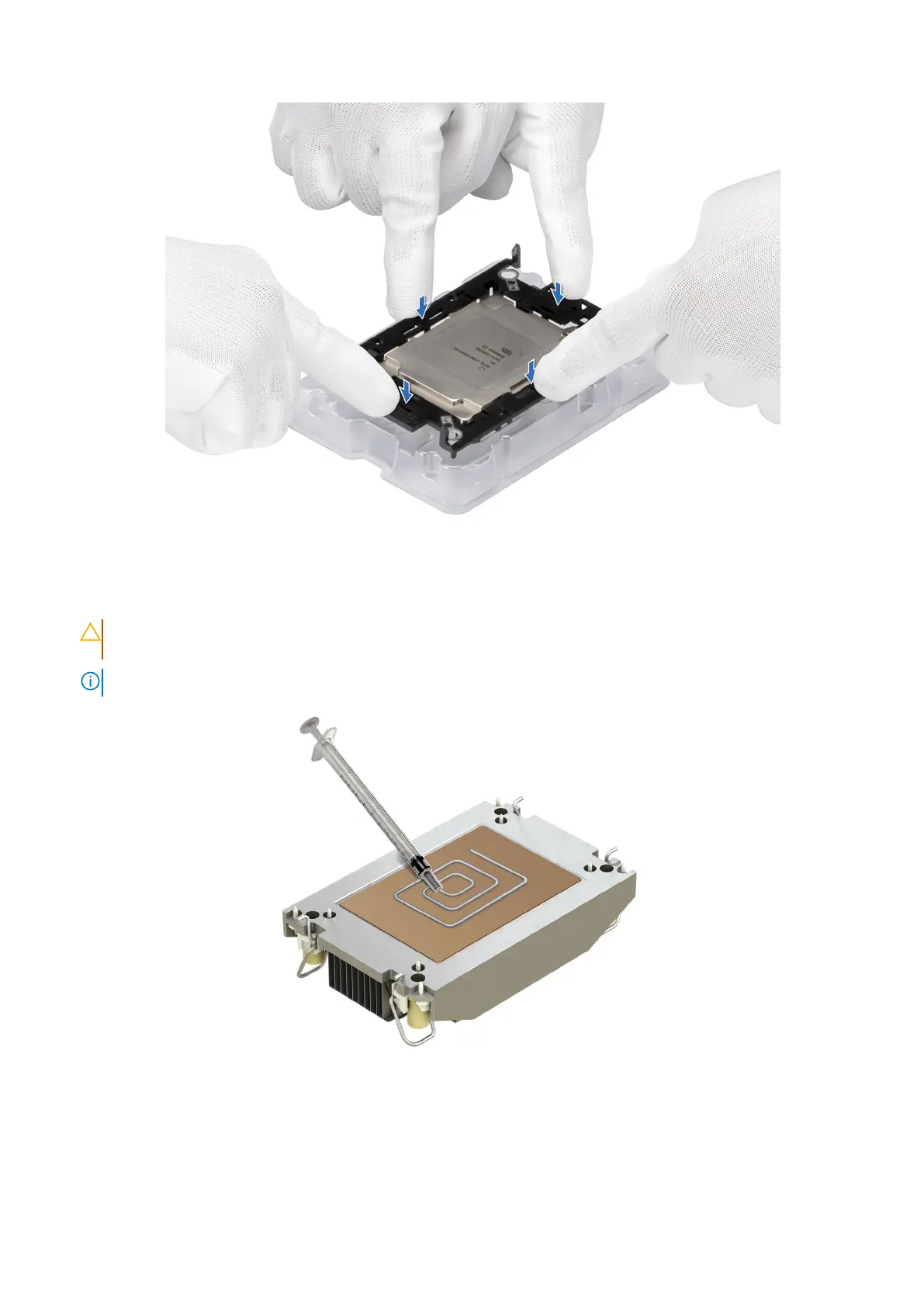

Figure 87. Press the retaining clip on the four sides
4. If you are using an existing heat sink, remove the thermal grease from the heat sink by using a clean lint-free cloth.
5. Apply the thermal grease in a thin spiral design on the bottom of the heat sink.
CAUTION:
Applying too much thermal grease can result in excess grease coming in contact with and
contaminating the processor socket.
NOTE: The thermal grease syringe is intended for single use only. Dispose the syringe after you use it.
Figure 88. Applying thermal grease
6. For new heat sink, pull and remove the plastic cover from the base of heat sink.
116
Installing and removing system components
