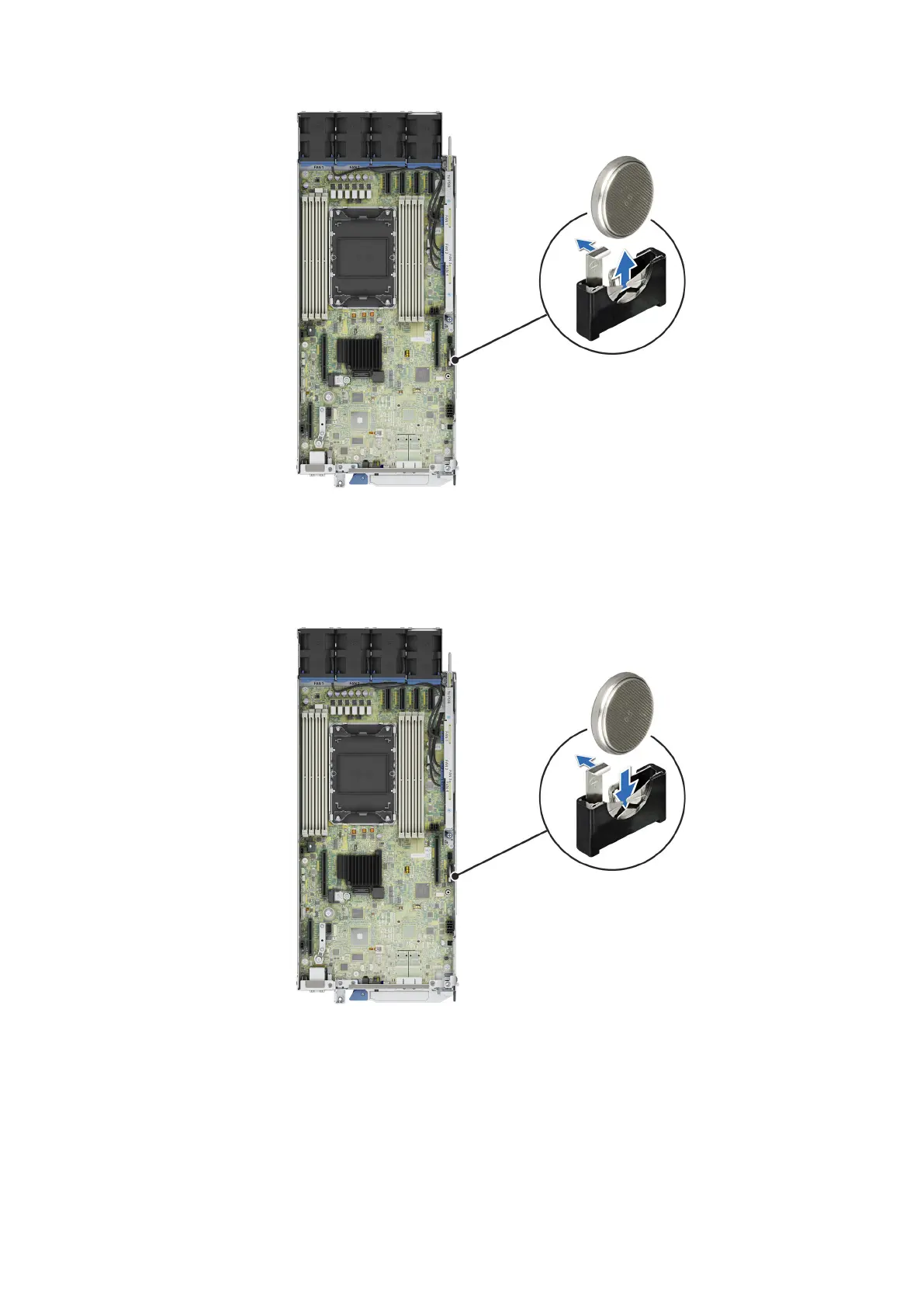

Figure 93. Removing the system battery
2. To install a new system battery:
a. Hold the battery with the positive side facing up and slide it under the securing tabs.
b. Press the battery into the connector until it snaps into place.
Figure 94. Installing the system battery
Next steps
1. Follow the procedure listed in the After working inside your system.
2. Confirm that the battery is operating properly, by performing the following steps:
a. Enter the System Setup, while booting, by pressing F2.
b. Enter the correct time and date in the System Setup Time and Date fields.
Installing and removing system components
121
