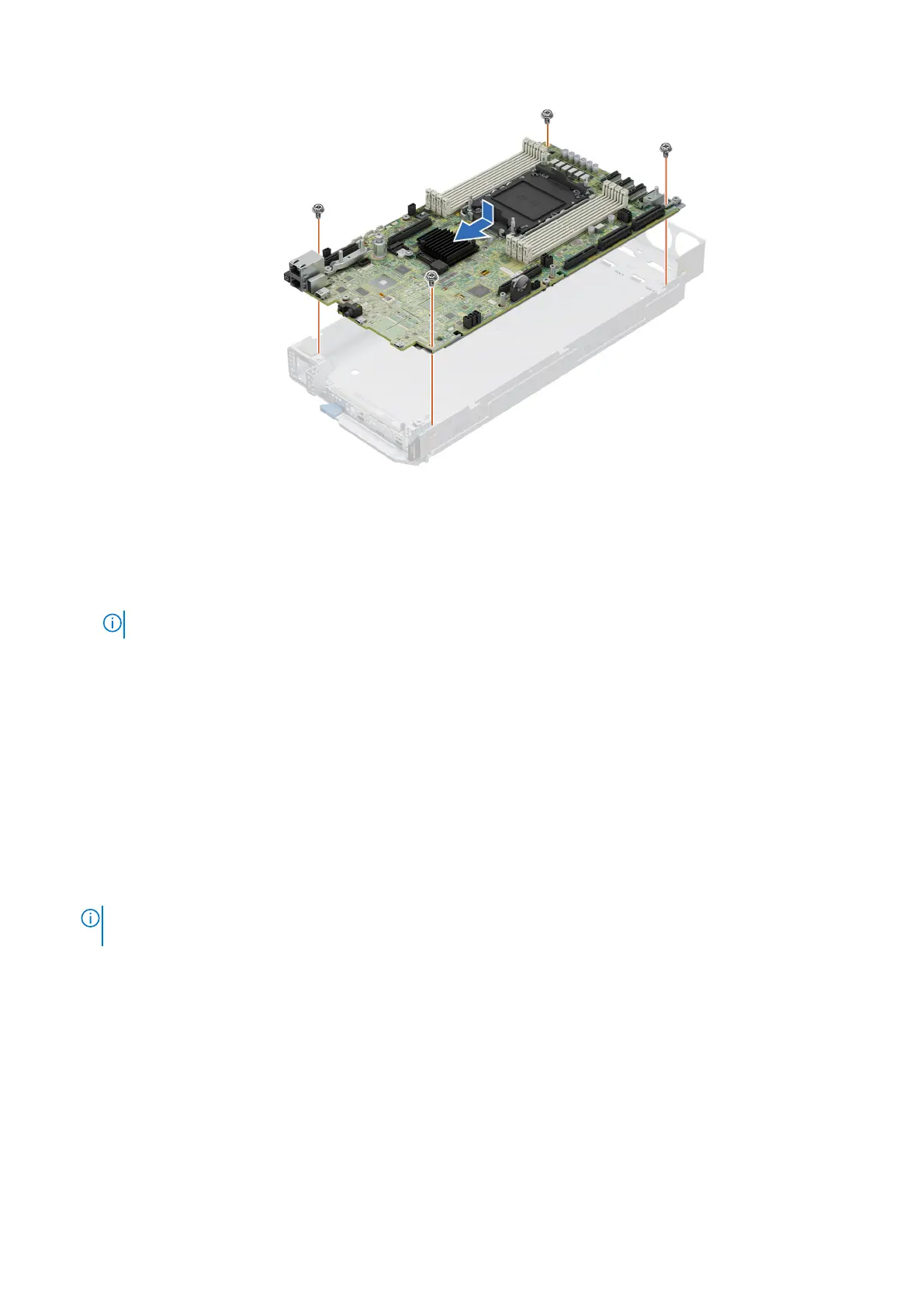

Figure 96. Installing the system board
Next steps
1. Replace the following components:
a. Trusted platform module (TPM).
NOTE: The TPM Module must be replaced only while installing new system board.
b. Processor
c. Heatsink
d. Memory modules
e. Riser 2
f. 1U Power distribution board
g. 2U sled from the 1U sled
h. 2U Power distribution board
i. 2U Cooling fans
j. Riser 1
k. side cover
l. Storage Interposer module
m. M.2 Direct Riser
n. Air shroud
2. Reconnect all cables to the system board.
NOTE:
Ensure that the cables inside the system are routed along the chassis wall and secured using the cable securing
bracket.
3. Ensure that you perform the following steps:
a. Use the Easy Restore feature to restore the Service Tag. See the Restoring the system by using the Easy Restore
feature section.
b. If the service tag is not backed up in the backup flash device, enter the system service tag manually. See the Manually
update the Service Tag by using System Setup section.
c. Update the BIOS and iDRAC versions.
Re-enable the Trusted Platform Module (TPM). See the upgrading the Trusted Platform Module section.
4. If you are not using Easy Restore, import your new or existing iDRAC Enterprise license. For more information, see the
Integrated Dell Remote Access Controller User's Guide
5. Follow the procedure listed in After working inside your system.
124
Installing and removing system components
