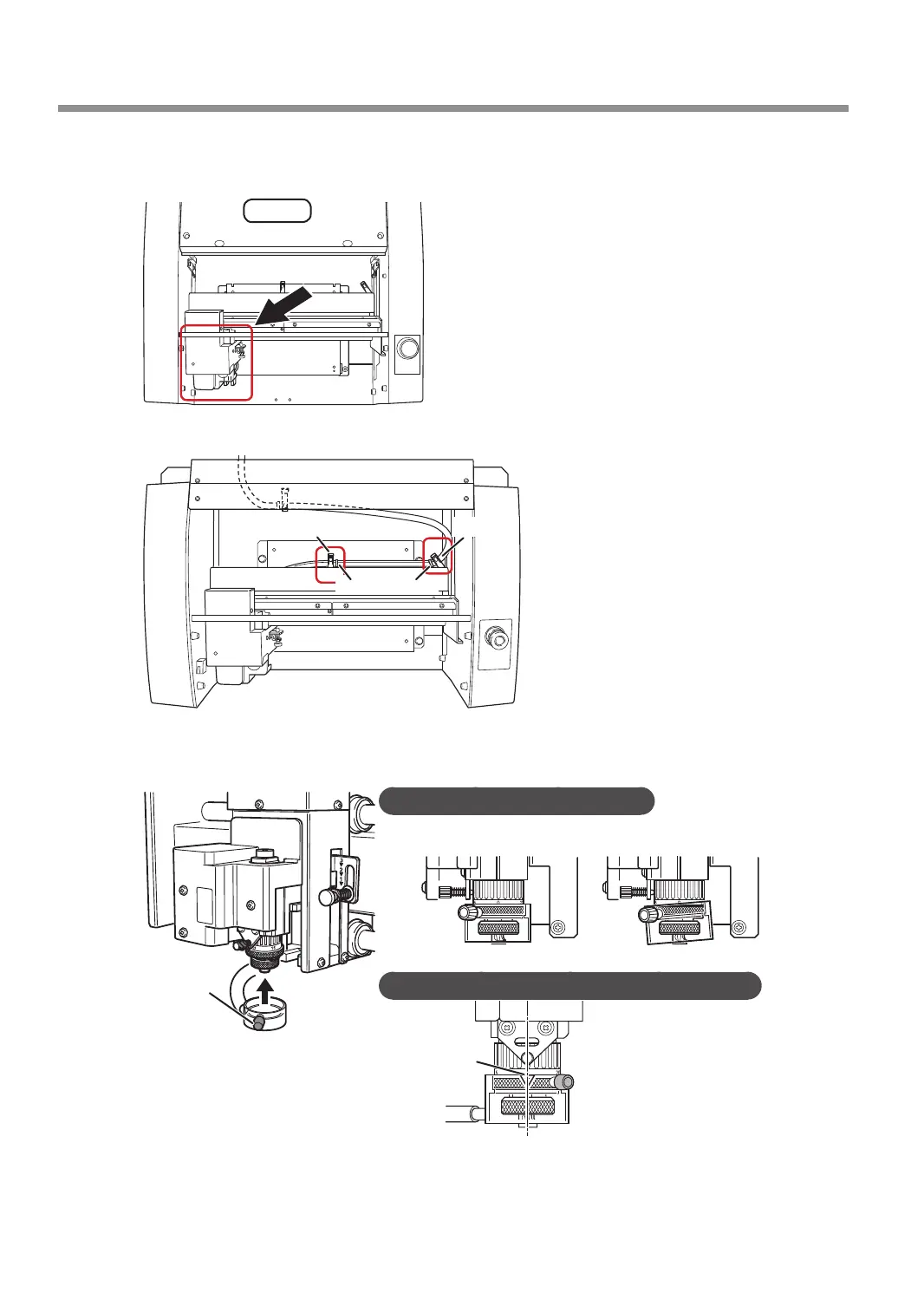

Slowly move the spindle head by hand to the front left.
Be careful not to apply strong impact.
Top
G
Fasten the hose with the (two) clamps in the center of this machine.
Clamp Clamp
Retaining band
H
Attach the vacuum adapter to the nose unit.
Secure the vacuum adapter while pressing it against the top.
Point 1: Attach it so that it is level.
Good Not Good
1 Attach from below
2 Tighten the screw
Screw
Point 2: Tighten so that the notch is on the front.
Failing to do so may lead to the
hose bending during operation,
disabling the suction of the cutting
waste.
Notch
