C

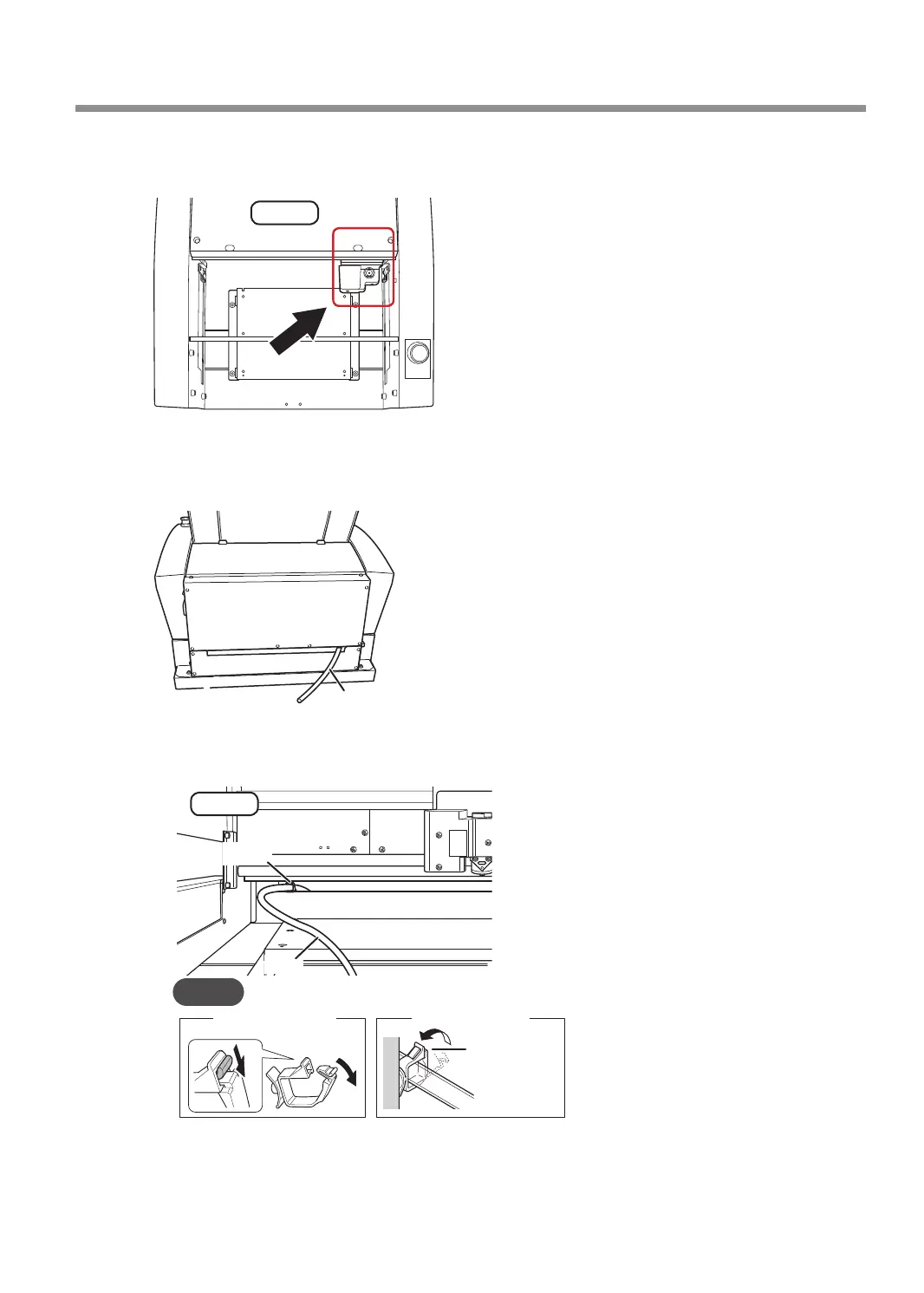

Slowly move the spindle head by hand to the back of the workpiece table on the right side.
Be careful not to apply strong impact.
Top
D
Pass the end of the dust collection hose ("hose") from the front to the back of this
machine.
Back
Hose
E
Fasten the hose with the clamp close to the back of this machine.
Fasten at the position of the retaining band on the hose.
Fasten at the
position where
you hear a
"click."
Opening the clamp Closing the clamp
MEMO
Hose
Clamp
Workpiece table
Front
