H

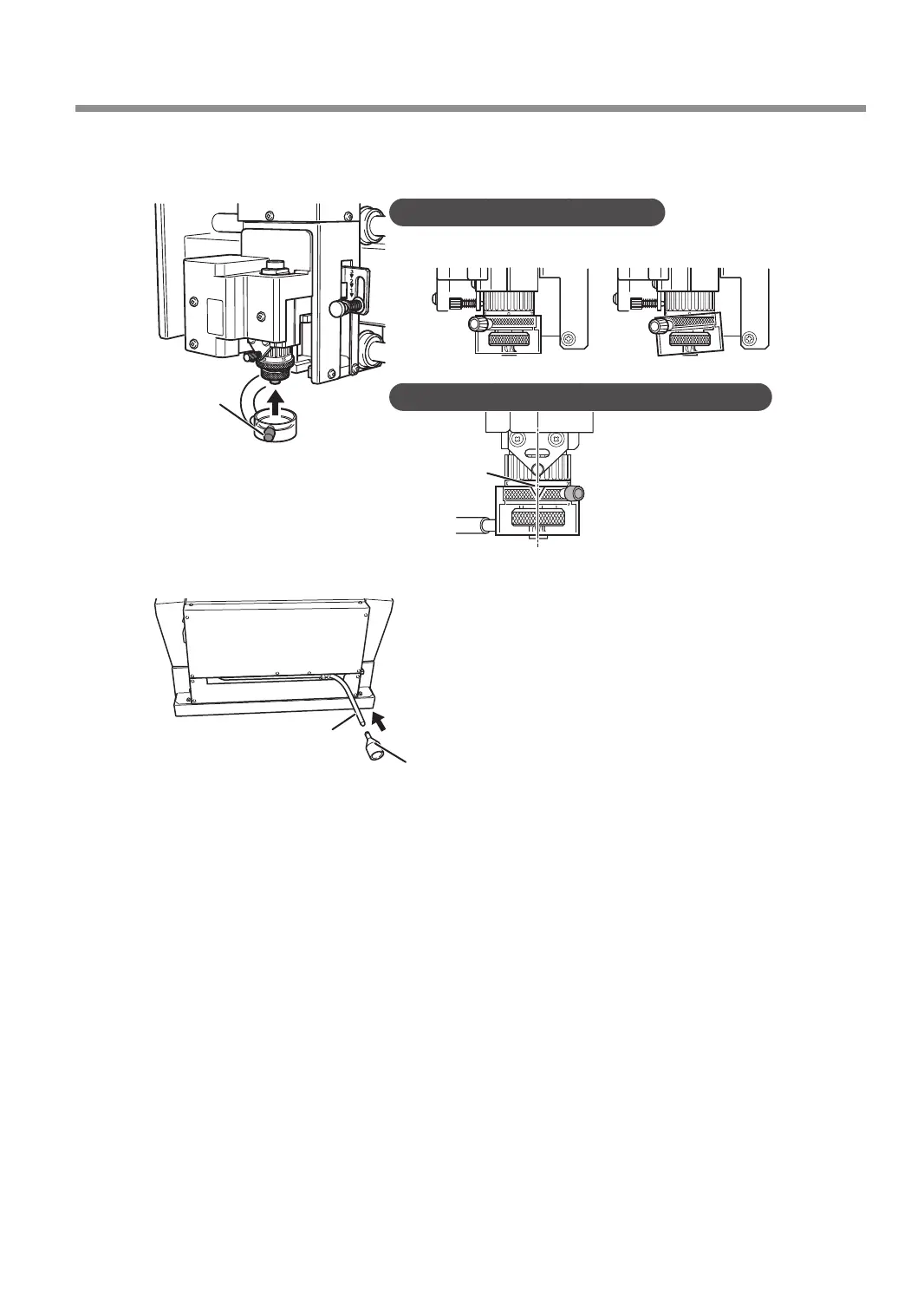

Attach the vacuum adapter to the nose unit.
Secure the vacuum adapter while pressing it against the top.
Point 1: Attach it so that it is level.
Good Not Good
1 Attach from below
2 Tighten the screw
Screw
Point 2: Tighten so that the notch is on the front.
Failing to do so may lead to the
hose bending during operation,
disabling the suction of the cutting
waste.
Notch
I
Attach the adapter to the hose on the back of this machine.
Hose
Adapter
J
Attach a vacuum cleaner to the end of the adapter on the back.
K
Close the front cover.
Other Basic Operations
61
Chapter 3 Basic Engraving Methods
To Next Page
