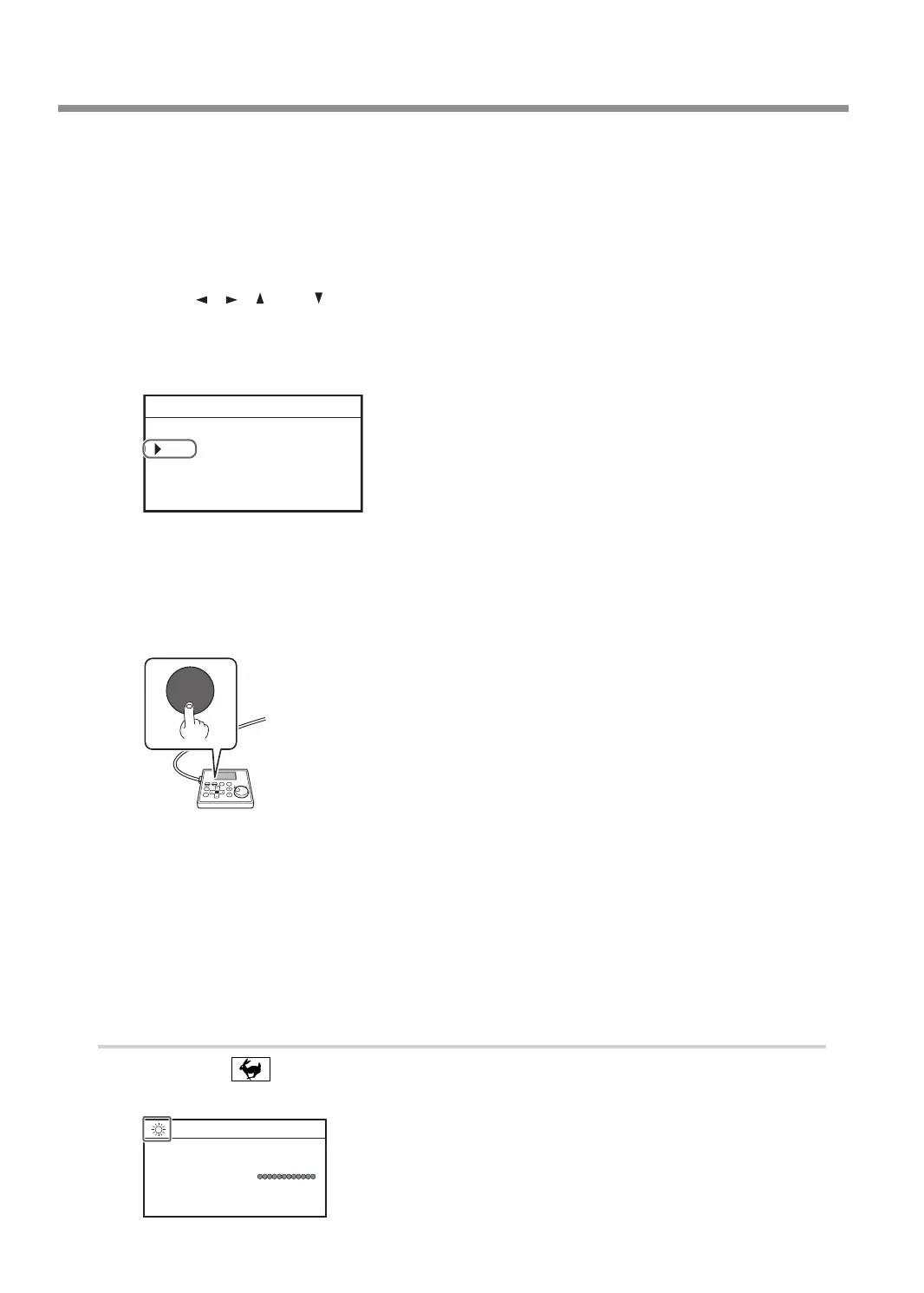

B
Close the front cover.
C
Press [ENTER/PAUSE].
The main screen is displayed.
D
Press [+Z] to raise the tool.
E
Press [ ], [ ], [ ], and [ ] to move the tool to a position on the workpiece.
F
Press [ORG.XY/POINTER].
G
Using the [Dial], select [XY] for the target axis.
ORIGIN SET XY
XY X Y
X 38.88mm
Y 17.00mm
012345678901234567 READY
H
Press [ENTER/PAUSE].
The current value is set as the origin point, and you are returned to the main screen.
I
Hold down [SPINDLE] for one second or longer.
The spindle rotates.
SPINDLE
ON/OFF
J
Press [-Z] to lower the tool until it cuts the workpiece.
The workpiece is marked.
K
Press [+Z] to raise the tool.
L
Press [SPINDLE].
Rotation of the spindle stops.
2.
Examine the laser pointer correction values.
A
Hold down and press [ORG.XY/POINTER].
The laser pointer turns on, and the current values of the laser pointer are displayed on the main screen.
X 50.00mm
Y 30.00mm
Z 20.00mm S 5000rpm
012345678901234567 READY
Correction
76
Chapter 4 Maintenance
To Next Page
