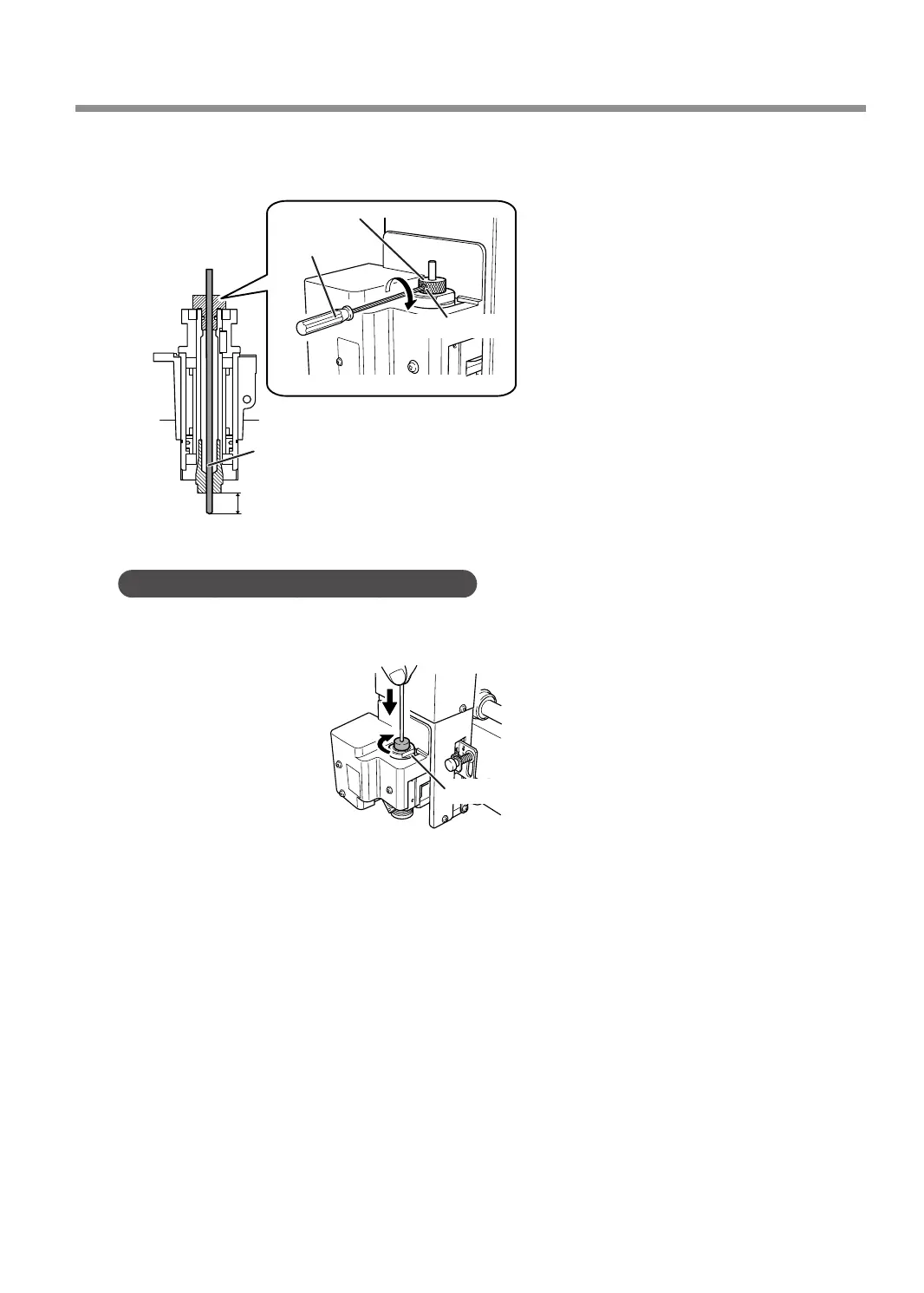

Secure the diamond scraper in place where the tip is extended by about 10 mm (0.4 in.).
Tighten the mounting screw for the cutter holder.
Hexagonal
screwdriver
Cutter holder
Mounting screw
Diamond scraper
Approximately 10 mm (0.4 in.)
This completes the installation of the diamond scraper.
Point: If diamond scraper insertion is difcult
If the diamond scraper catches on the solid collet and is dicult to insert, loosening the cutter holder makes
insertion of the diamond scraper easier. Note that inserting it forcibly may result in damage to the workpiece.
After inserting the diamond scraper, tighten the cutter holder again.
