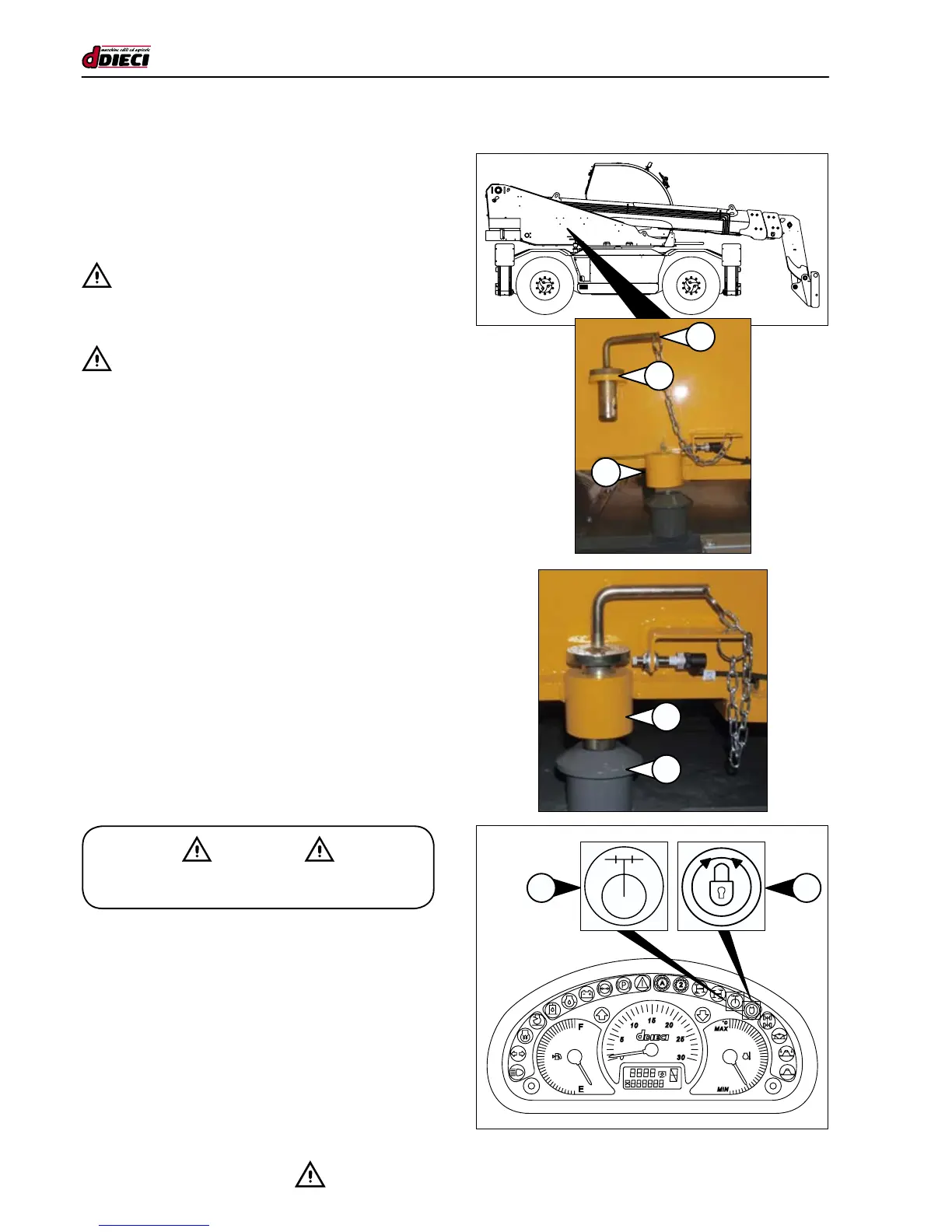

TURRET ROTATION LOCKING PIN
(g.39/C)
The turret rotation locking pin is used to block the turret
when it is aligned with the lower chassis. The pin is located
on the right side of the machine (g.39/C Pos “1”).
- CAUTION:
When the pin is not in use, it must be stored in its housing
(g.39/C Pos.“2”).
- CAUTION:
During road use the turret must be locked.
To insert the rotating lock:
- Place any loads on the ground.
- Completely retract and lower the telescopic boom.
- Align the turret with the lower chassis. The pilot light
in the instrument cluster (g.41/C Pos “A”) will indicate
whether the operation has been carried out correctly.
- Engage the parking brake.
- Switch off the machine and remove the ignition key.
- Get out of the cab and insert the locking pin in its hou-
sing (g.39/C Pos.“3”).
- The locking pin is correctly positioned when it passes
through the housing on the upper chassis (fig.40/C
Pos.“1”) and is inserted in the housing on the lower
chassis (fig.40/C Pos.“2”). The pilot light in the instru-
ment cluster (g.41/C Pos.“B”) will indicate that the pin
has been inserted.
- If the pin does not enter correctly, place the pin in its
housing (g.40/C Pos.“1”), get back in the cab and turn
the turret (using very small movements) until the pin falls
into the housing (g.40/C Pos.“2”).
- CAUTION -
Do not attempt to rotate the machine when
the locking device is inserted.
