Maintenance and adjustment
- CAUTION: - Read the SAFETY REGULATIONS (in this manual) carefully for the safety of all personnel and the machine.
(g.10/D)
3
2
1
1
(g.8/D)
MIN
MAX
B
A
(g.11/D)
CC
BRAKES
(g.8/D Pos.”2”, g.9/D Pos.”2”)
Hydraulic brakes do not require registration.
Periodically check the reservoir that is behind the seat
(g.10/D Pos.”1”), the oil must not be below the lower notch
”B” (MIN) (g.11/D); for expiry see the summary table at the
start of the chapter (page D/5).
To top up:
- Unscrew tank cap (fig.12/D Pos.”1”), turning it anti-
clockwise.
- Check that oil is level. If it is not, ll the reservoir to level
“A”(MAX) (g.11/D).
- Tighten tank cap (g.11/D Pos.”1”), turning it clockwise.
Do not tighten it excessively.
- Clean any spillage.
A slight lowering of the level is due to normal consumption of
the brake pads.
- ATTENTION:
If the brake pedal run is excessive or too elastic, inform the
DIECI dealer in order to eliminate the defect.
- ATTENTION:
Periodically check the condition of all hoses and/or piping.
of the brakes. If the level is drastically reduced there is a leak
in the system. Contact the DIECI dealer for the replacement
of any damaged, corroded or ruined piping.
- ATTENTION:
Always use the recommended type of oil, as indicated in the
lubricants table (See page D/12 oils table).
- ATTENTION:
Brake oil is very dangerous. Consult chapter “B” for safety
precautions.
- ATTENTION:
This type of oil can ruin the painted surfaces and the plastic
parts of the dashboard.
- ATTENTION -
IT IS PROHIBITED to operate with brake oil level
below minimum “B” (MIN) (g.11/D).
Brakes may not work properly
creating a risk of accidents.

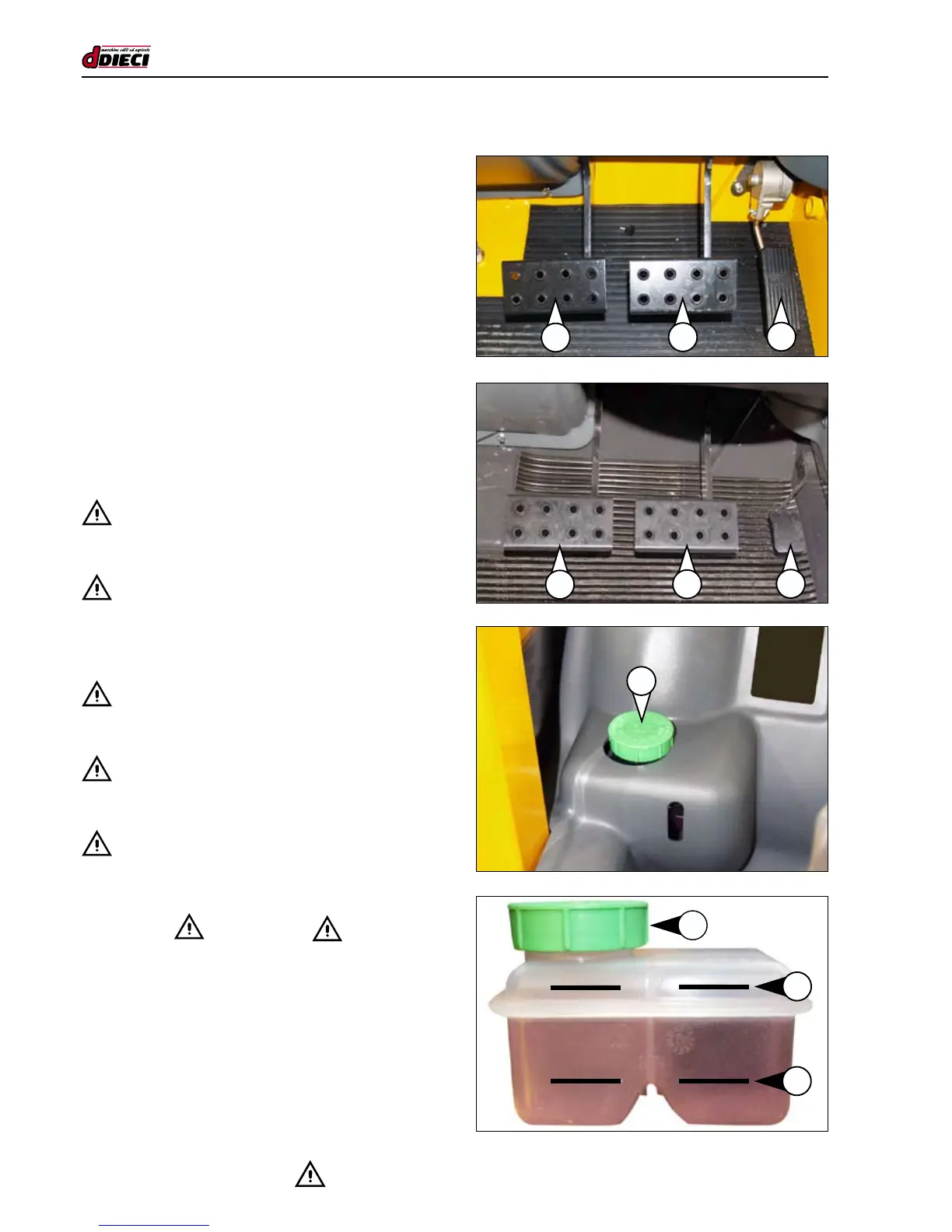

(g.9/D) (Pegasus 38.16)
