Dieci Pegasus - Instrument Cluster Pilot Lights

C/15
- CAUTION: - Read the SAFETY REGULATIONS (in this manual) carefully for the safety of all personnel and the machine.

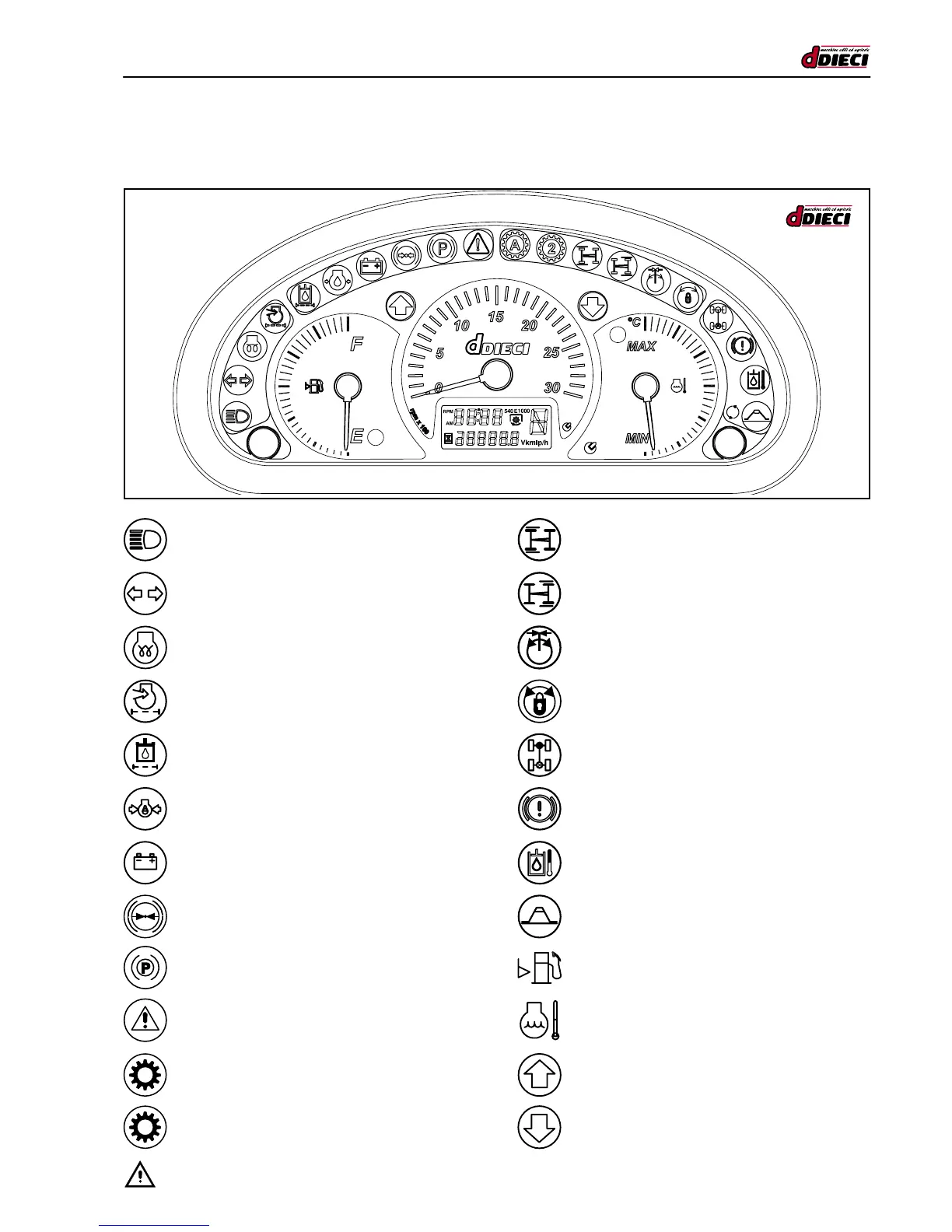

INSTRUMENT CLUSTER PILOT LIGHTS
(g.17/C)
Hydrostatic oil lter pilot light
(red)
General alarm pilot light
(red)
Reverse gear pilot light
(green)
Forward gear pilot light
(green)
Parking brake pilot light
(red)
Mechanical gear engaged pilot light.
(green)
Generator pilot light
(red)
Insufcient pressure in the parking brake
accumulator pilot light.
(red)
Turret and chassis aligned exactly pilot light
(green)
Turret rotation locking pin inserted pilot light
(red)
Fuel level indicator
Water temperature indicator
(g.17/C)
Engine oil pressure pilot light
(red)
Speed gear engaged pilot light.
(green)
Front axle alignment pilot light
(yellow)
Rear axle alignment pilot light
(yellow)
Rear axle oscillation lock inserted pilot light
(yellow)
Stabilisers lowered correctly pilot light
(green)
Direction indicator pilot light
(green)
High beam headlights pilot light
(blue)
A
Glow plug preheat pilot light
(yellow)
Blocked air lter pilot light
(red)
2
