Dieci Pegasus - Steering Wheel (Adjustment)

C/11
- CAUTION: - Read the SAFETY REGULATIONS (in this manual) carefully for the safety of all personnel and the machine.
1
(g.11/C)
1
(g.10/C)
(g.9/C)
1

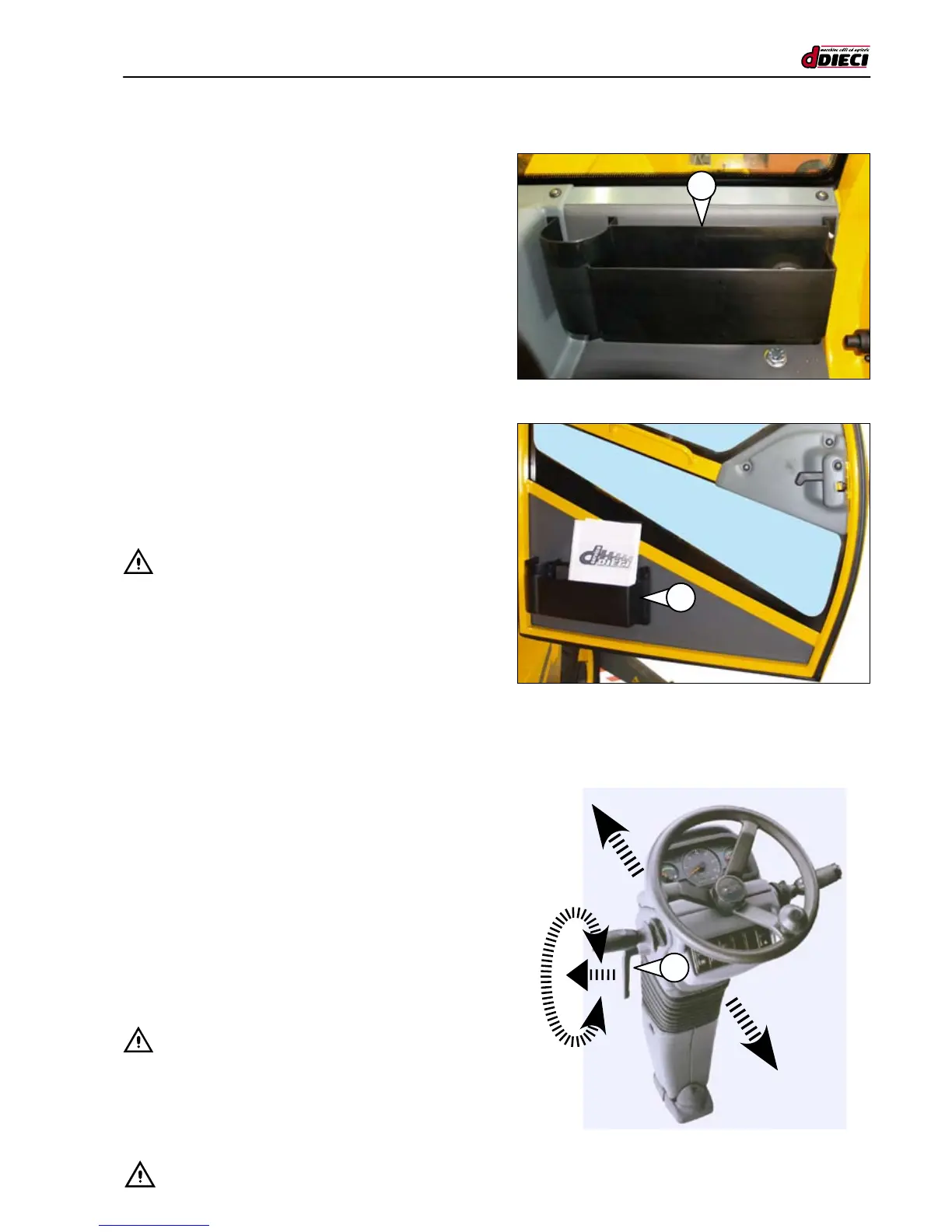

COURTESY COMPARTMENT
(g.9/C Pos.“1”)
- Located behind the seat.
TECHNICAL DOCUMENT COMPARTMENT
(g.10/C Pos.“1”)
All technical documentation must be kept in its compartment
inside the cab door (g.10/C Pos.“1”).
The use and maintenance manual and the spare parts cata-
logue must always be available inside the machine in case
they need to be consulted.
- CAUTION:
The operation manual and the spare parts catalogue are an
integral part of the machine and must stay with the machine
when it is sold on to a new owner. The manual must always
be stored carefully and must always be kept onboard the
machine (in the language spoken by the operator) for rapid
consultation. If the manual becomes worn and/or even par-
tially damaged or illegible, replace immediately.
STEERING WHEEL (adjustment)
(g.11/C)
To adjust the steering wheel inclination:
- Turn lever “1” (g.11/C) towards the front of the machine
to release.
- Push or pull the steering wheel until you reach the desi-
red position.
- Turn lever “1” (g.11/C) towards yourself to lock the ste-
ering wheel in position. Screw rmly to lock securely.
If lever “1” (g.11/C) is now locked in an inconvenient posi-
tion, pull the lever towards the left and turn.
- CAUTION:
The steering wheel is adjusted correctly when the operator
is able to grip the most distant part of the steering wheel
while keeping elbows slightly bent and the back leaning
rmly against the backrest.
