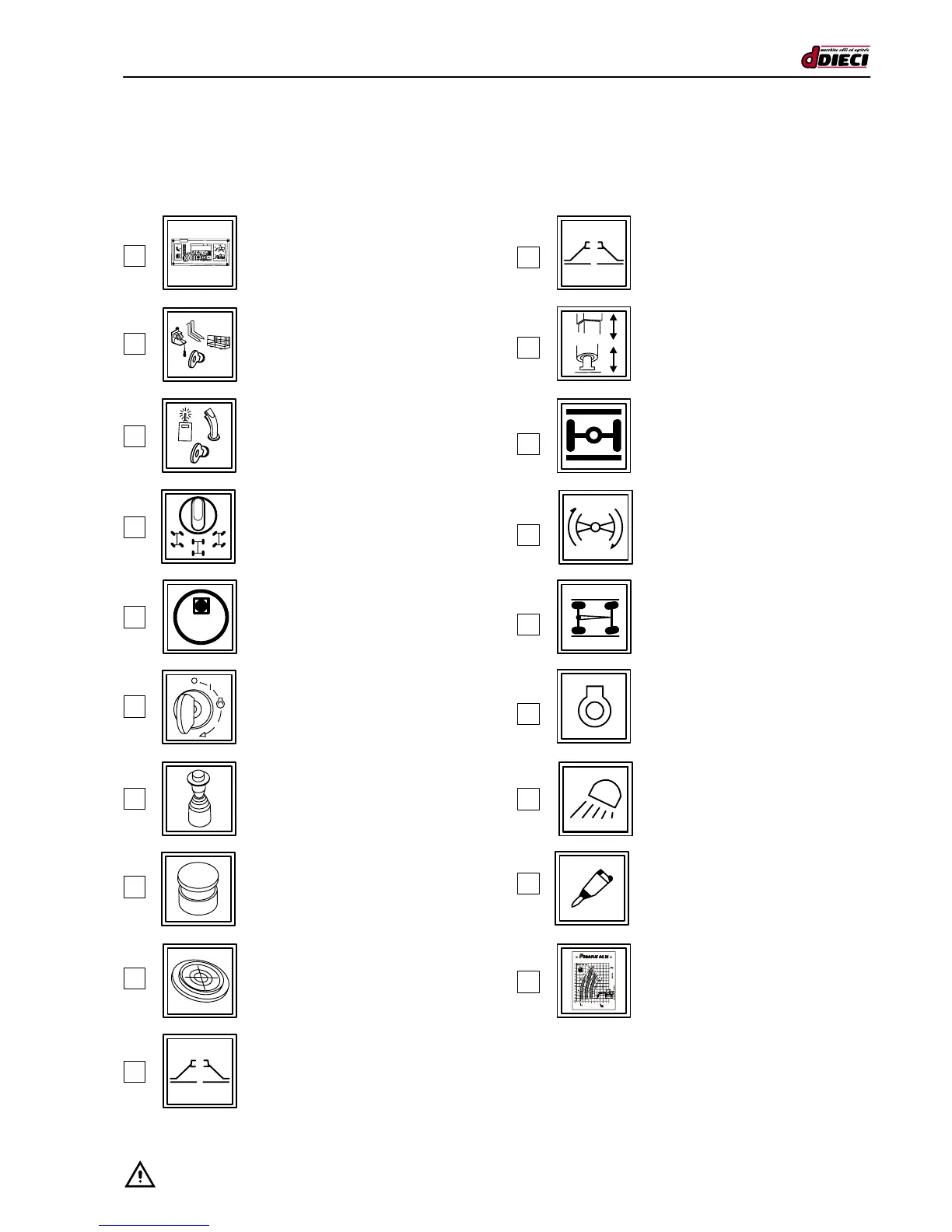

RIGHT-SIDE DASHBOARD – SWITCHES – SELECTORS - PUSHBUTTONS
Steering type selector
Selector to select machine fun-
ctions controlled from onboard the
machine or using radio control
Machine function selector
(forks/basket/winch)
Auxiliary power outlet
EMERGENCY BUTTON
hydraulic system and engine shutdown
Stabiliser control selector
Ignition key
Anti roll-over device - 3B6
Rear axle oscillation lock switch
Beam/foot selector
Only with 8-movement stabilisers
Machine levelling switch
Manual electronic accelerator
Load capacity diagrams
Stabiliser switch
FRONT right/left
Stabiliser switch
REAR right/left
Spirit level
Boom head solenoid valve switch
Optional
Boom head work spotlight switch
Optional
4
3
2
5
8
7
6
1
Allineamento ruote
anteriori/posteriori
9
12
13
14
15
16
10
11
17
18
19
MAX
180W
