Dieci Pegasus - Steering Selector

Getting to know and using the machine
C/40
Model E.T. PEGASUS
- CAUTION: - Read the SAFETY REGULATIONS (in this manual) carefully for the safety of all personnel and the machine.
(g.63/C)
1
(g.64/C)
(g.65/C)
2
1
A
B
C
A
B
C

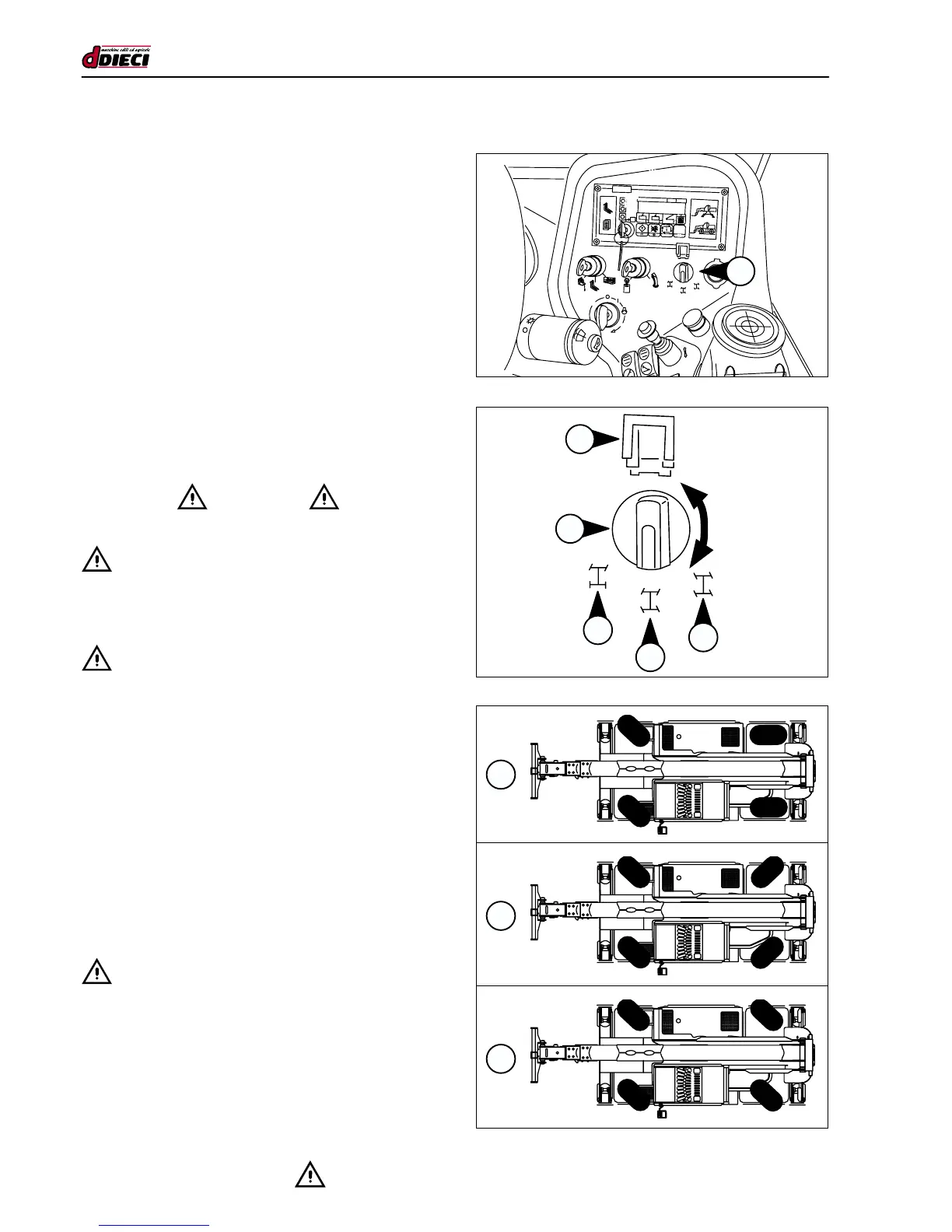

STEERING SELECTOR
(g.63/C Pos “1”)
Turn the selector (g.63/C Pos.“1”) to obtain 3 types of steering:
Normal steering - (g.65/C Pos “A”)
This type of steering allows front steering only.
To enable front steering, turn selector “1” (g.64/C) to posi-
tion “A” (g.64/C) indicated on the steering functions label.
Radial steering - (g.65/C Pos.“B”)
This type of steering allows maximum steering left and right.
To enable radial steering, turn selector “1” (g.64/C) to posi-
tion “B” (g.64/C) indicated on the steering functions label.
Crab steering - (g.65/C Pos.“C”)
This type of steering allows crab steering with parallel
front and rear wheels (sideways machine movement).
To enable crab steering, turn lever “1” (g.64/C) to posi-
tion “C” (g.64/C) indicated on the steering functions label.
- CAUTION -
Select the steering type when the machine is at a standstill.
- CAUTION:
For road use, the steering control lever must be positio-
ned in Pos.“B” (fig.64/C) and locked using the locking pin
(g.64/C Pos.“2”); (4-wheel steering mode).
- CAUTION:
Before selecting a new type of steering mode, align the whe-
els by following the procedure described below. The wheels
must also be aligned while the machine is at a standstill.
Alignment (standard)
1. Position selector “1” (g.64/C) in position “B” (g.64/C)
indicated on the steering functions label.
2. Turn the steering wheel observing just the rear wheels
until they are completely straightened.
3. Position selector “1” (g.64/C) in position “A” (g.64/C)
indicated on the steering functions label.
4. Turn the steering wheel observing just the front wheels
until they are completely straightened.
5. At this point, the front and rear wheels are aligned and it
is now possible to select the type of desired steering.
- CAUTION:
It is recommended to align the wheels regularly (every 8-10
hours) depending on the continued use of the machine.
