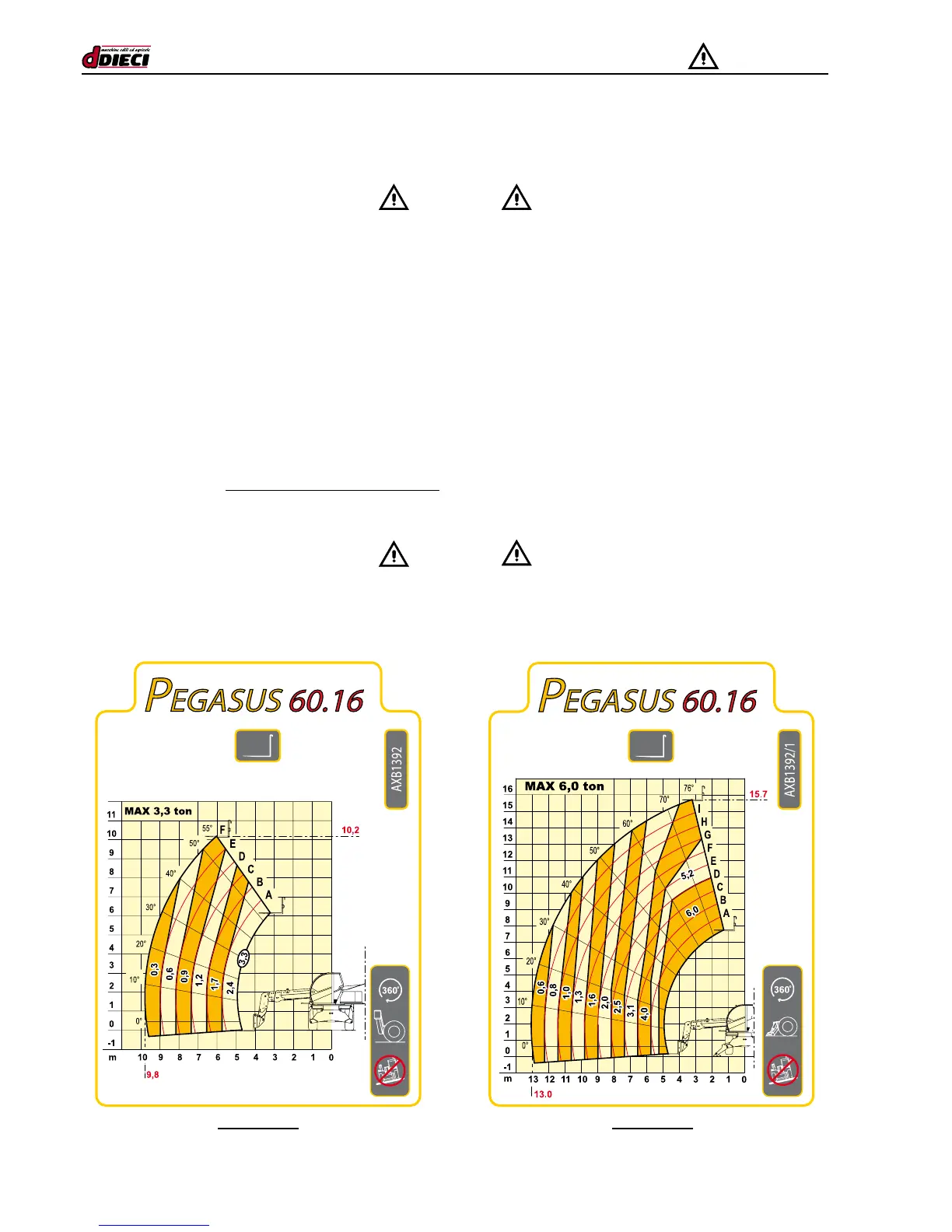

Example “A”
(Without stabiliser feet and rotating turret)
Example “B”
(With stabiliser feet and rotating turret)
LOAD TABLES
- CAUTION -
CHECK THE LOAD TABLES OF YOUR MACHINE IN CHAPTER "H" - TECHNICAL INFORMATION SHEETS
The Safe Working Load -SWL of these machines depends on their extension range and boom angle.
This machine is equipped with anti roll-over devices.
For further information about the safe load indicator, see the relevant paragraph (chapter "C" - Getting to Know Your Machine
- "anti roll-over device").
The load table inside the cab illustrates the safe working loads in relation to the various boom positions.
The extension of the boom is marked with the letters: "A" "B" "C" "D".
The load table illustrates the maximum height and extension achievable without exceeding the safe load. The telehandler is also
equipped with its own load table. The load table is calculated using a telehandler with standard forks. There are also additional
Load Tables, which apply to the different boom accessories.
The load table indicated is only to be intended as an example.
Before lifting or positioning loads, consult the load tables in the handbook on the right of the instrument cluster or consult chap-
ter "H" (machine technical information sheets) in this manual.
- CAUTION -
The limits given in the load Tables refer to the machine at a halt.
Do not lift or extend the boom when the machine is in motion.
Retract the boom completely and lower it as far as possible before moving with a load.
Check which boom attachment is assembled on the machine and then consult the relevant load table.
