Dieci Pegasus - Identifying Machine Parts - Eight Movement Stabilisers

D/7
- CAUTION: - Read the SAFETY REGULATIONS (in this manual) carefully for the safety of all personnel and the machine.
1. Rear right stabiliser
2. Rear right light
3. Epicyclic reduction gear
4. Wheel
5. Oscillation lock cylinder
6. Turret rotation locking pin
7. Boom safety support rod
2
6
8
9
7
10
11
18
14
16
19
17
3
6
8
12
13

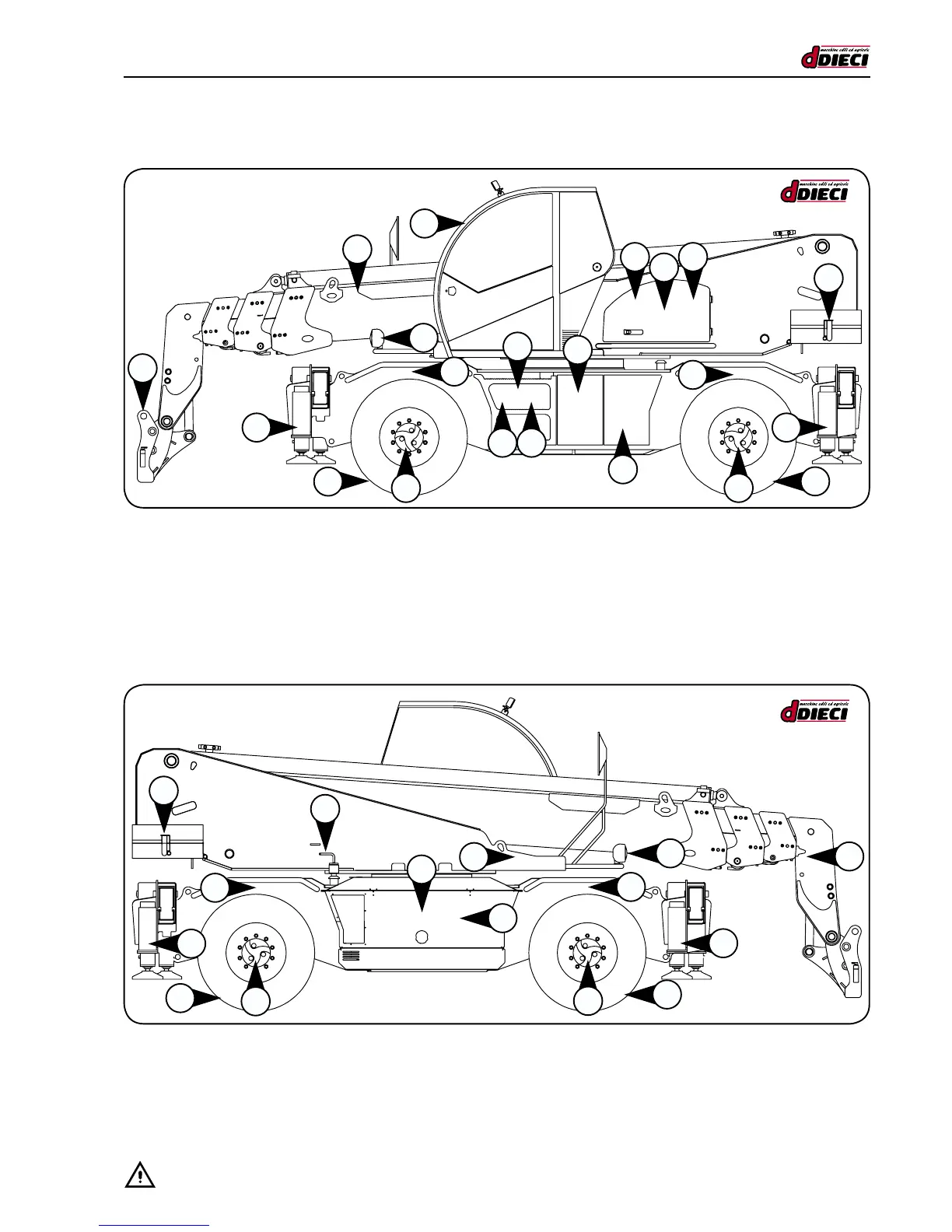

Machine left side
1. Cab
2. Telescopic boom
3. Attachment holder plate
4. Front left stabiliser
5. Rear left stabiliser
6. Epicyclic reduction gear
7. Machine levelling cylinder
8. Wheel
9. Front left light
10. Battery
11. Toolbox
12. Hydrostatic system oil lter
13. Hydraulic oil tank
14. Diesel fuel tank
15. Oscillation lock cylinder
16. Control unit and timing system bonnet
17. Control unit
18. Timing system
19. Rear left light
8. Engine bonnet
9. Diesel engine
10. Levelling cylinder
11. Front right light
12. Front right stabiliser
13. Boom head electrical connector
1
4
Machine right side
2
3
3
6
8
9
4
10
12
13
7
5
4
11
1
IDENTIFYING MACHINE PARTS - Eight movement stabilisers.
(Pegasus 45.19, 45.21, 50.21, 40.25)
5
15
