Dieci Pegasus - Rear Differential Axle Oscillation Lock

C/29
- CAUTION: - Read the SAFETY REGULATIONS (in this manual) carefully for the safety of all personnel and the machine.
COBO02.246
(g.35/C)
(g.37/C)
2
3
(g.38/C)
11
(g.36/C)
A
B
1

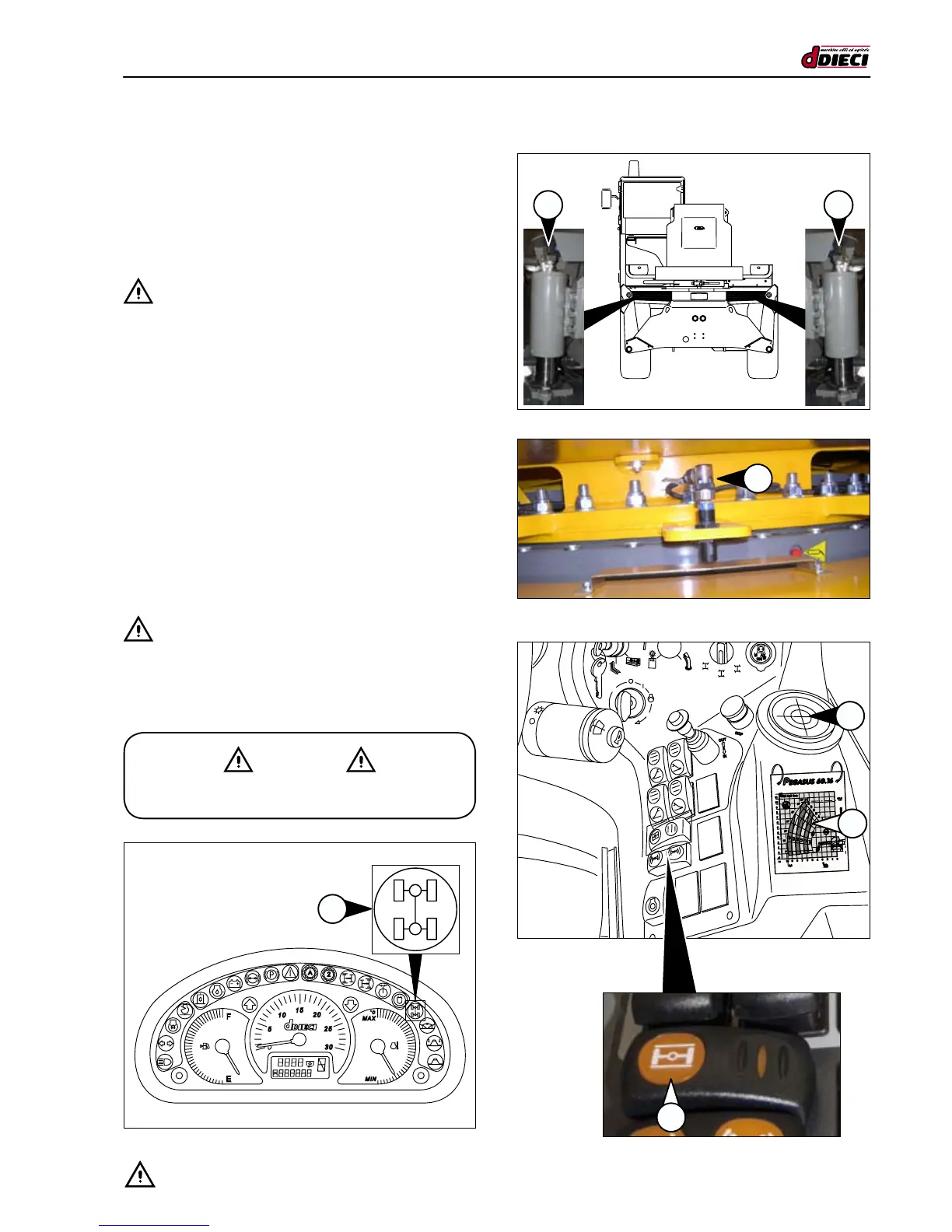

REAR DIFFERENTIAL AXLE OSCILLATION LOCK
(g.35/C Pos.“1”)
When the rear axle is locked (g.35/C Pos.“1”), this prevents
the machine from oscillating during the rotation of the ma-
chine on two wheels function. Oscillations can cause the
load to be dropped or the machine to roll-over.
- CAUTION:
Before engaging the oscillation lock, ensure the machine has
been levelled correctly using the spirit level in the cab (g.37/C
Pos.“2”). When working in rotation conditions, the machine
must be levelled according to the vertical over the entire 360°.
The lock can be enabled:
- Automatically if the turret (aligned with the lower chassis)
turns more than 15° right or left, when using the machi-
ne on wheels. The pilot light in the instrument cluster
(g.38/C Pos.“B”) will indicate that the device has been
triggered automatically (signalled by the proximity switch
(g.36/C Pos.“A”).
- Manually by using the oscillation locking switch on the
right-side dashboard (g.37/C Pos.“1”). When the switch
is pressed, the pilot light on the switch lights up as
well as the pilot light in the instrument cluster (g.38/C
Pos.“B”), indicating it has been enabled.
- CAUTION:
If the rear axle is locked, the machine cannot move in any
direction. To move, it is necessary to align the turret with the
machine and, if the differential axle lock has been manually
engaged, disengage it with the appropriate switch.
- CAUTION -
Lock the rear axle manually when the machine
is being used without stabilisers.
