Mod. E.T. PEGASUS
D/10
Maintenance and adjustment
- CAUTION: - Read the SAFETY REGULATIONS (in this manual) carefully for the safety of all personnel and the machine.
After
50 hours
After
10 hours

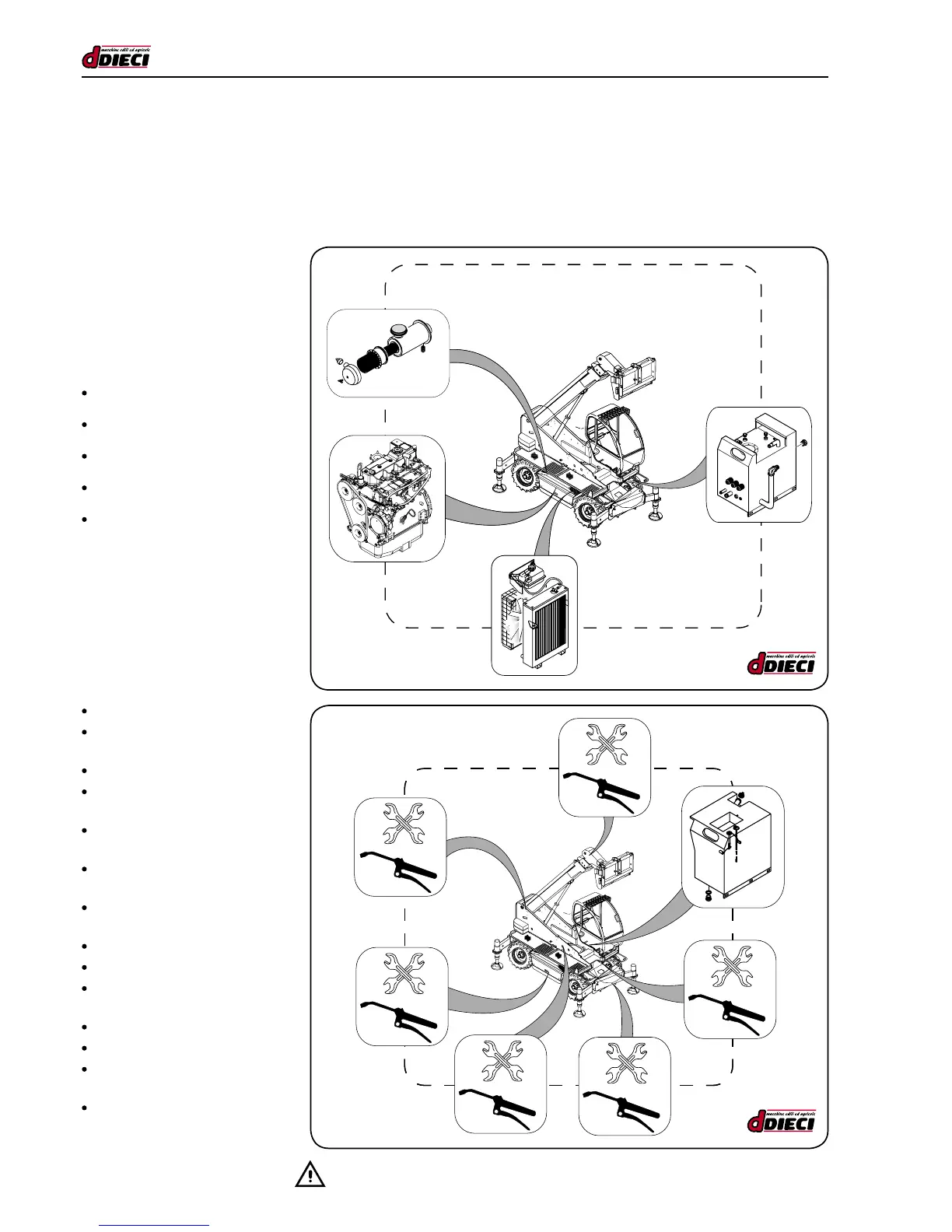

MAINTENANCE AND ADJUSTMENT SCHEDULE
On the left is a list of the maintenance procedures to carry out. The diagrams on the right indicate how often the maintenance
has to be carried out and provide an idea of where the parts are located. The asterisk (*) indicates maintenance in case the ma-
chine is used in particular environments.
Check engine oil level.
Clean the air lter.
Check water level in radiator.
Check radiator is not clogged.
Check hydraulic oil level.
Drain fuel tank.
Check for leaks on hydraulic
circuit piping
Lubricate boom joint pin.
Lubricate pivot jack head and
foot pins.
Lubricate hoisting jack head and
foot pins.
Lubricate stabiliser jack foot and
head pins.
Lubricate levelling jack head and
foot pins.
Lubricate stabiliser assembly pins.
Lubricate turret rotation fth wheel.
Lubricate front and rear wheel
pivot pins.
Rear axle oscillation bushings.
Front axle oscillation bushings.
Lubricate spiders and Cardan joints
on drive shafts.
Lubricate boom sliding blocks.
To Next Page
