Getting to know and using tha machine
Integrated devices
C/74
Model E.T. PEGASUS
- CAUTION: - Read the SAFETY REGULATIONS (in this manual) carefully for the safety of all personnel and the machine.
COMPLEMENTARY WORK DATA READINGS

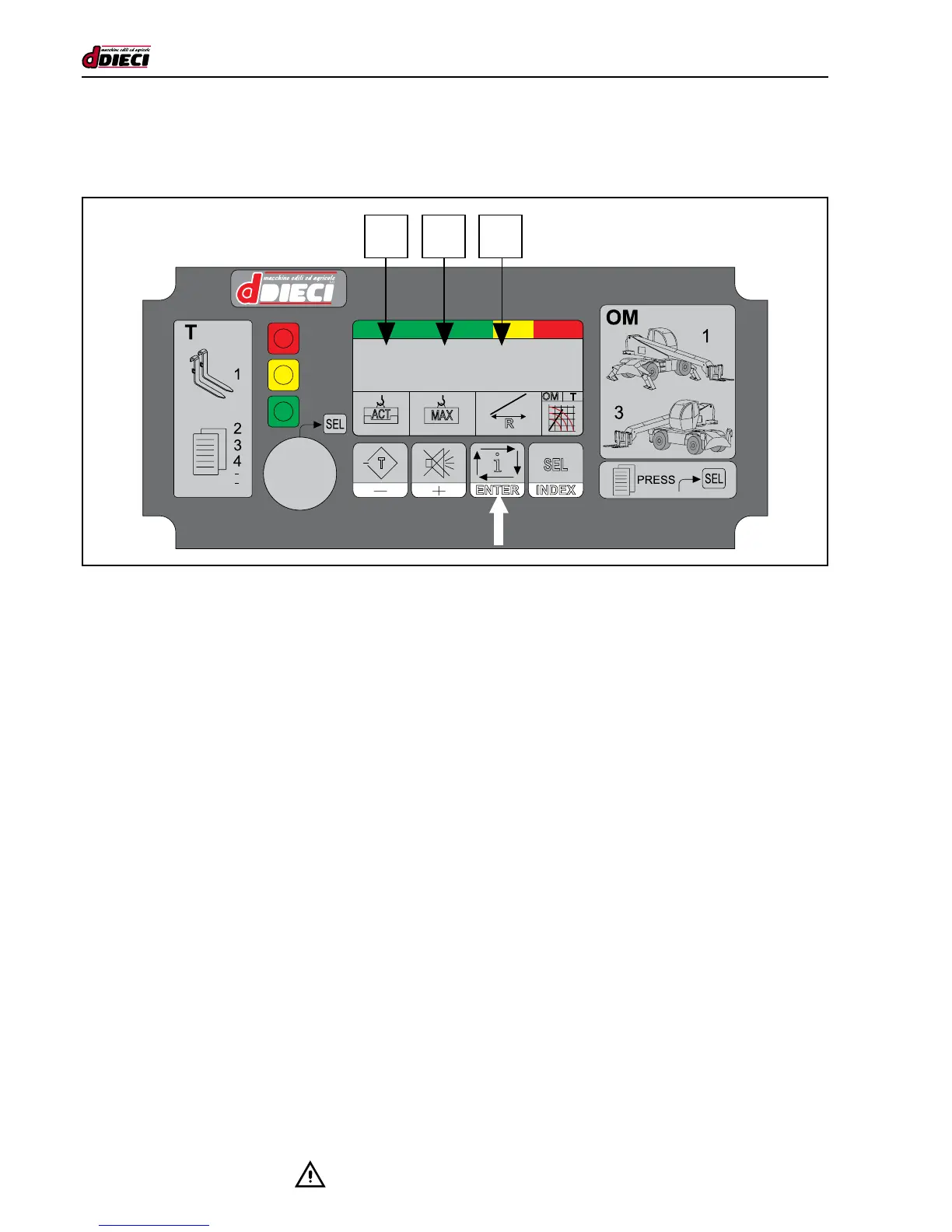

Press “ENTER” once for a few seconds to display the values regarding complementary readings.
After this the display returns to the main ACT, MAX, and R readings.
12. BOOM LENGTH
Reading in “metres” with one decimal
13. BOOM ANGLE
Reading in “degrees”.
14. HEIGHT ABOVE GROUND
Reading in “metres” with one decimal
NOTE:
If the British Imperial system is selected, the loads are indicated in “Pounds/1000” and the geometric data is expressed in “feet”.
6.7
48.5
7.5 11
13
12 14
