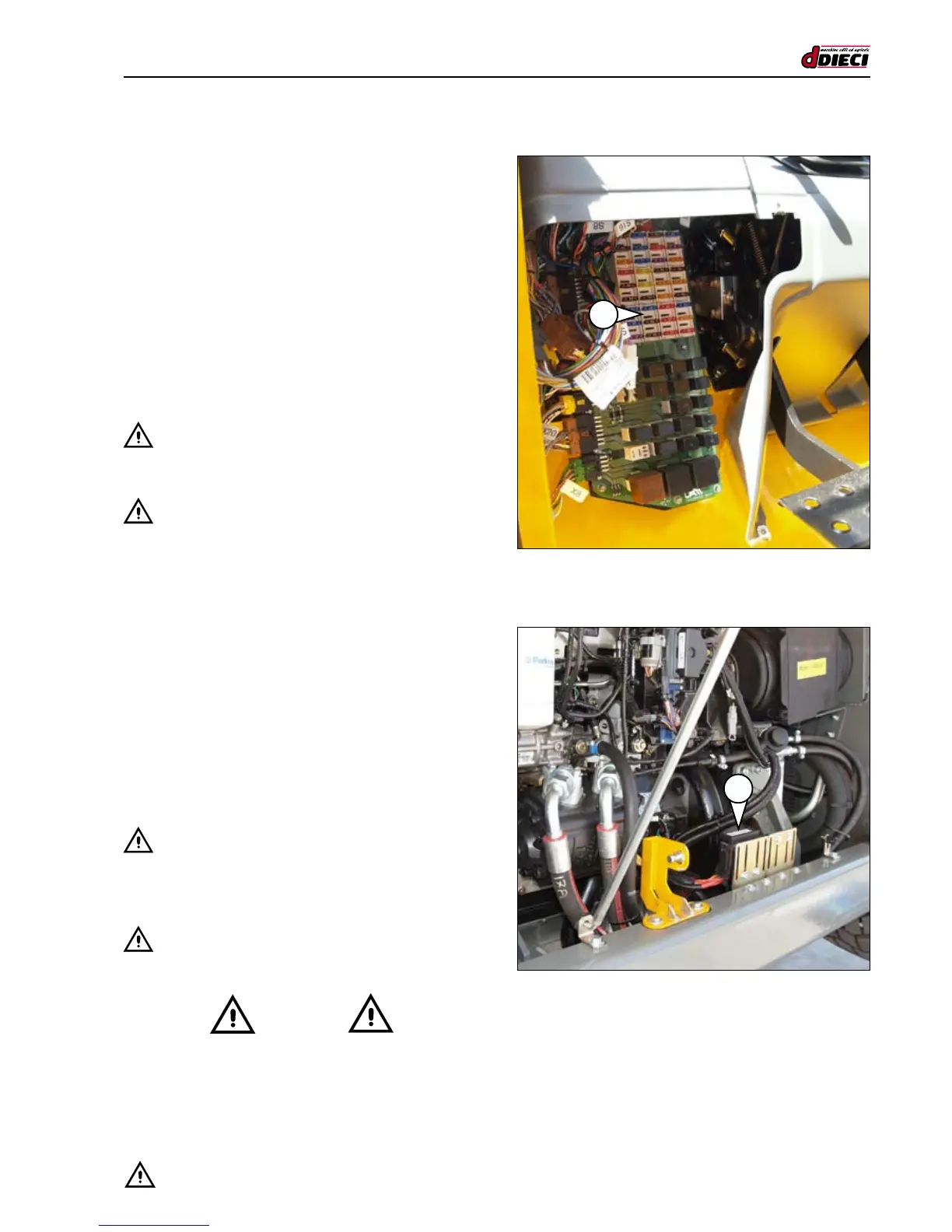

(g.99/D)
(g.100/D)
FUSES
(g. 99/D Pos. “1”)
General control unit
The general electrical circuit is protected by fuses located in
the general control board (g.99/D Pos.“1”).
To access the electronic board, remove the left plastic cover
below the dashboard by unscrewing the screws.
If there are any electrical malfunctions, rst check the condi-
tion of the fuses when looking for the source of the problem.
Use the special pliers to remove the fuses.
To replace a fuse, remove it from its housing using the spe-
cial pliers and replace with another fuse featuring the same
class, quality and amperage.
- CAUTION:
Before removing the plastic covers below the dashboard, discon-
nect the power supply by acting on the battery cut-off switch.
- CAUTION:
Never attempt to repair a fuse in any way.
Engine control unit
(g.100/D Pos. “1”)
The engine electrical circuits and connected components
are protected by a fuse control box located in the engine
compartment (g.100/D Pos.“1”).
Remove the lid on the box to access the fuses. If there are
any electrical malfunctions, rst check the condition of the
fuses when looking for the source of the problem.
To replace a fuse, remove it from its housing using the spe-
cial pliers and replace with another fuse featuring the same
class, quality and amperage. Any other type of procedure
must be carried out by authorised personnel.
- CAUTION:
Before accessing the engine compartment, switch off the
machine and remove the ignition key, disconnect the power
supply by acting on the battery cut-off switch.
- CAUTION:
Never attempt to repair a fuse in any way.
- CAUTION -
The general machine fuse is located inside
the engine control unit.
