Dieci Pegasus - Opening the Cab Door Window; Rear Window; Emergency Exit

C/9
- CAUTION: - Read the SAFETY REGULATIONS (in this manual) carefully for the safety of all personnel and the machine.
(g.4/C)
2
1
3
(g.3/C)
3
1
4
2

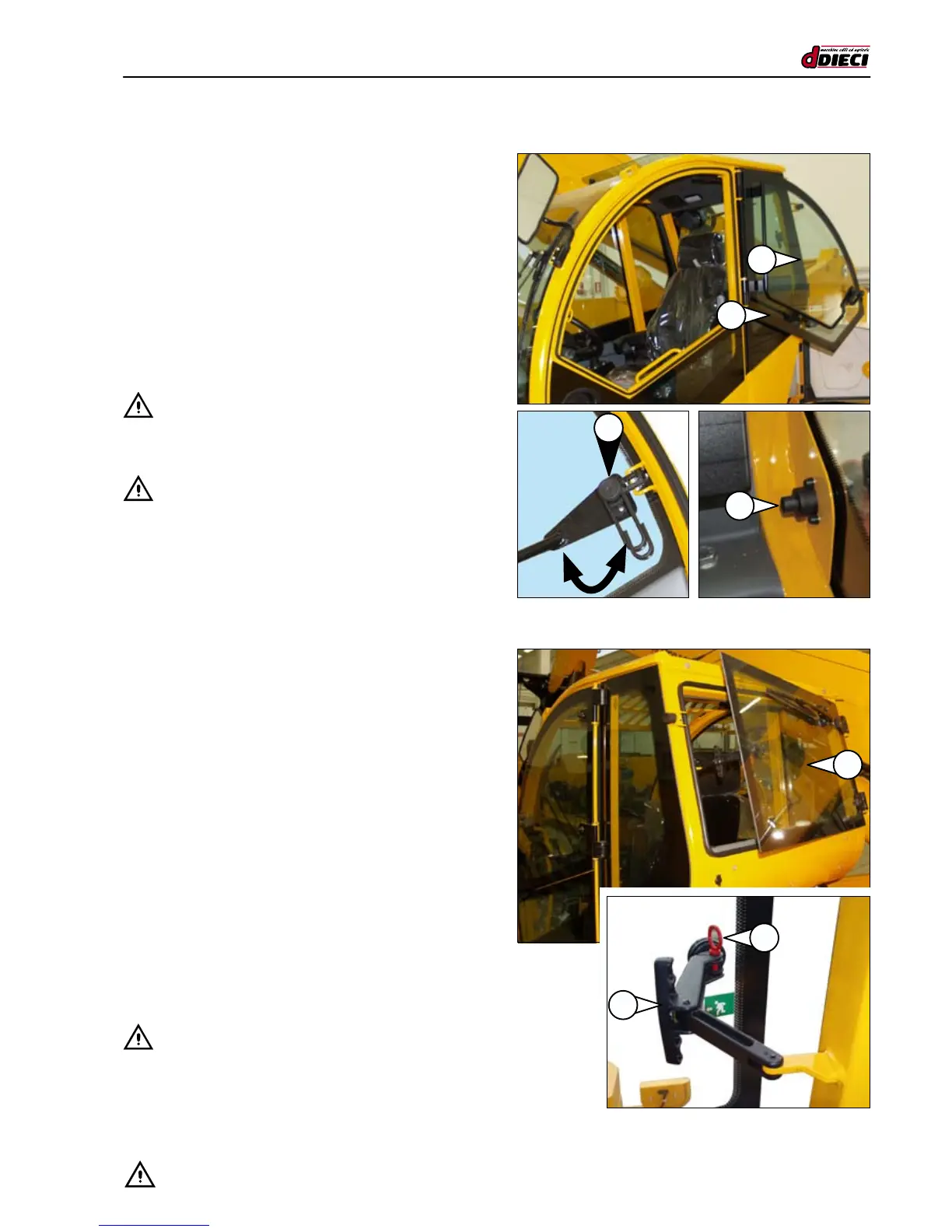

OPENING THE CAB DOOR WINDOW
(g.3/C Pos.“1”)
- To open, lower the grip turning it clockwise (g.3/C Pos. “2”).
- To fasten the window so it stays open, press lightly to
secure the window in the catch (g.3/C Pos.“3”).
- Press the button inside the cab (g.3/C Pos.“4”) to relea-
se the window and close it.
- To close the window, pull it towards you and return it to
its original position.
- Turn the grip anticlockwise to lock the window in the clo-
sed position.
- CAUTION:
Before pushing the window outwards, check there are no
obstacles in the way.
- CAUTION:
Before starting to operate the machine, ensure the door
window is fastened, whether the window is open or closed.
REAR WINDOW
(Fig. 4/C Pos. “1”)
- To open the rear window, pull the handle (g.4/C Pos.“2”)
and push the window outwards.
The window is kept open by the handle.
EMERGENCY EXIT
(Fig. 4/C)
The emergency exit is identied and marked on the rear window.
- To open the window completely in case of need, remo-
ve the locking pin (g.4/C Pos.“3”) and push the glass.
While using the machine normally, the pin must be positio-
ned as shown in the gure.
- CAUTION:
The rear window is near the telescopic boom.
RISK OF SHEARING.
