MAIN WORK DATA

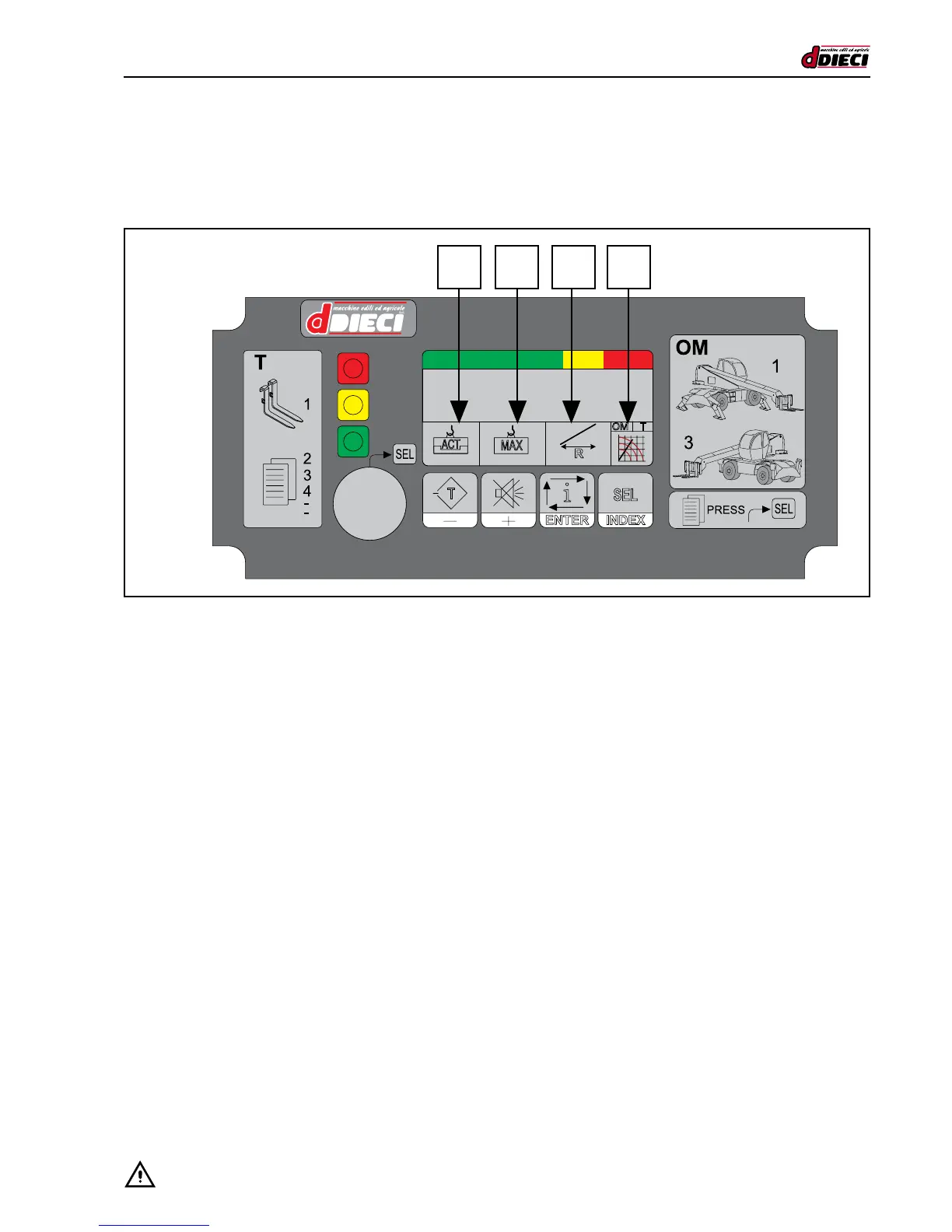

8. WEIGHT OF THE RAISED LOAD
Graphic symbol below: (ACT) Reading in “Tons” with one decimal
9. MAXIMUM LOAD ALLOWED in the present machine conguration.
Graphic symbol below: (MAX) Reading in “Tons” with one decimal
10. WORK RADIUS (measurement of the distance from the centre of the swing gear to the projection of the load application point).
Graphic symbol below: (R) Reading in “Metres” with one decimal
11. WORK CONFIGURATION
NOTE:
If the British Imperial system is selected, the loads are indicated in “Pounds/1000” and the geometric data is expressed in “feet”.
