Dieci Pegasus - Positioning the Four Movement Stabilisers

Getting to know and using the machine
C/32
Model E.T. PEGASUS
- CAUTION: - Read the SAFETY REGULATIONS (in this manual) carefully for the safety of all personnel and the machine.
4
2
(g.45/C)
(g.47/C)
A B
1
(g.46/C)
A
B
6
3
5
1
A
POSITIONING THE FOUR MOVEMENT STABILISERS
(Pegasus 70.11, 60.16, 30.16, 40.17, 38.16)

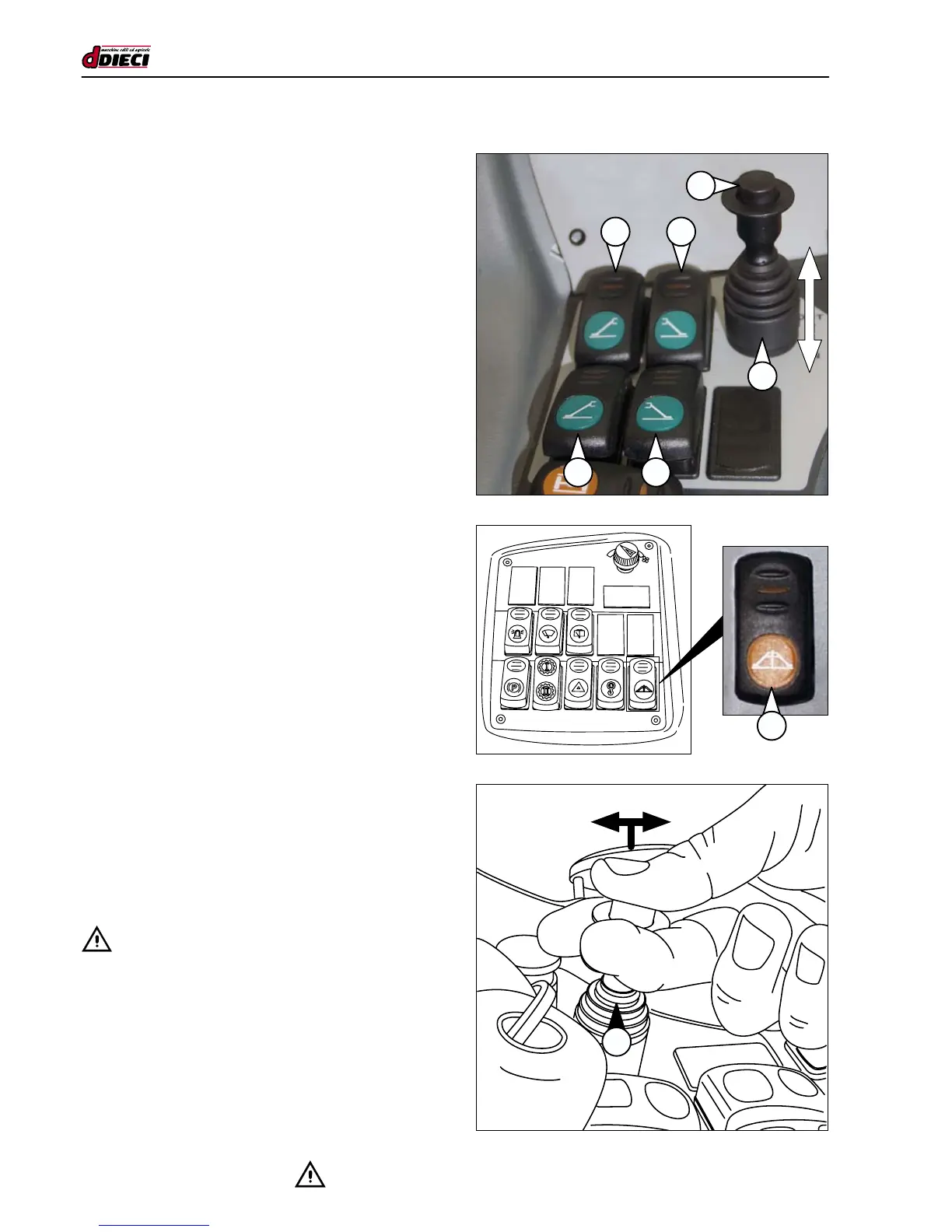

To enable the stabilisers act on the lever/selector (fig.45/C
Pos.“1”), the desired stabiliser switch (fig.45/C Pos.“2”, “3”,
“4” and “5”) and the stabiliser switch (g.46/C Pos.“A”).
The switches light up when each stabiliser is selected.
The lever/selector features a locking mechanism to avoid
accidental manoeuvres.
To enable, press the button on the top of the lever/selector
(fig.45/C Pos.“6”) and at the same time, pull to the top of
the lever/selector upwards. Then move the lever/selector to-
wards the front of the machine (g.47/C Pos.“A”) to lower the
stabilisers or towards you (g.47/C Pos.“B”) to raise them.
To ensure you have a perfect grip on the lever/selector, turn
the palm of your hand upwards and insert the lever between
your index and middle nger (g.47/C). Then push the but-
ton on the top of the lever with your thumb while at the same
time pulling the top of the lever upwards with your index and
middle nger (g.47/C).
How to operate the stabilisers
Select the stabilisers that you wish to operate:
• Front left stabiliser switch (g.45/C Pos.“2”).
• Front right stabiliser switch (g.45/C Pos.“3”).
• Rear left stabiliser switch (g. 45/C Pos. “4”).
• Rear right stabiliser switch (g. 45/C Pos. “5”).
- Press the “enable stabilisers” switch (g.46/C Pos.“A”) and
keep it pressed until you have completed the manoeuvre.
- Shift the lever/selector (fig.47/C Pos.“1”) towards the
front of the machine (fig.47/C Pos.“A”) and hold in this
position to lower the stabilisers.
- Shift the lever/selector (g.47/C Pos.“1”) towards you (g.47/C
Pos.“B”) and hold in this position to raise the stabilisers.
It is possible to select more than one stabiliser at a time by
acting on the relative switches. Then active them by shifting
the lever/selector in the desired position and then pressing
the manoeuvre switch.
- CAUTION:
To ensure you are working in complete safety, the ma-
chine must be levelled. The maximum allowed tilt is 2°.
Once the stabilisers have been positioned, always ensure the
machine is levelled correctly by checking the spirit level in the cab.
