Dieci Pegasus - Cab; External Components; Internal Components

C/7
- CAUTION: - Read the SAFETY REGULATIONS (in this manual) carefully for the safety of all personnel and the machine.

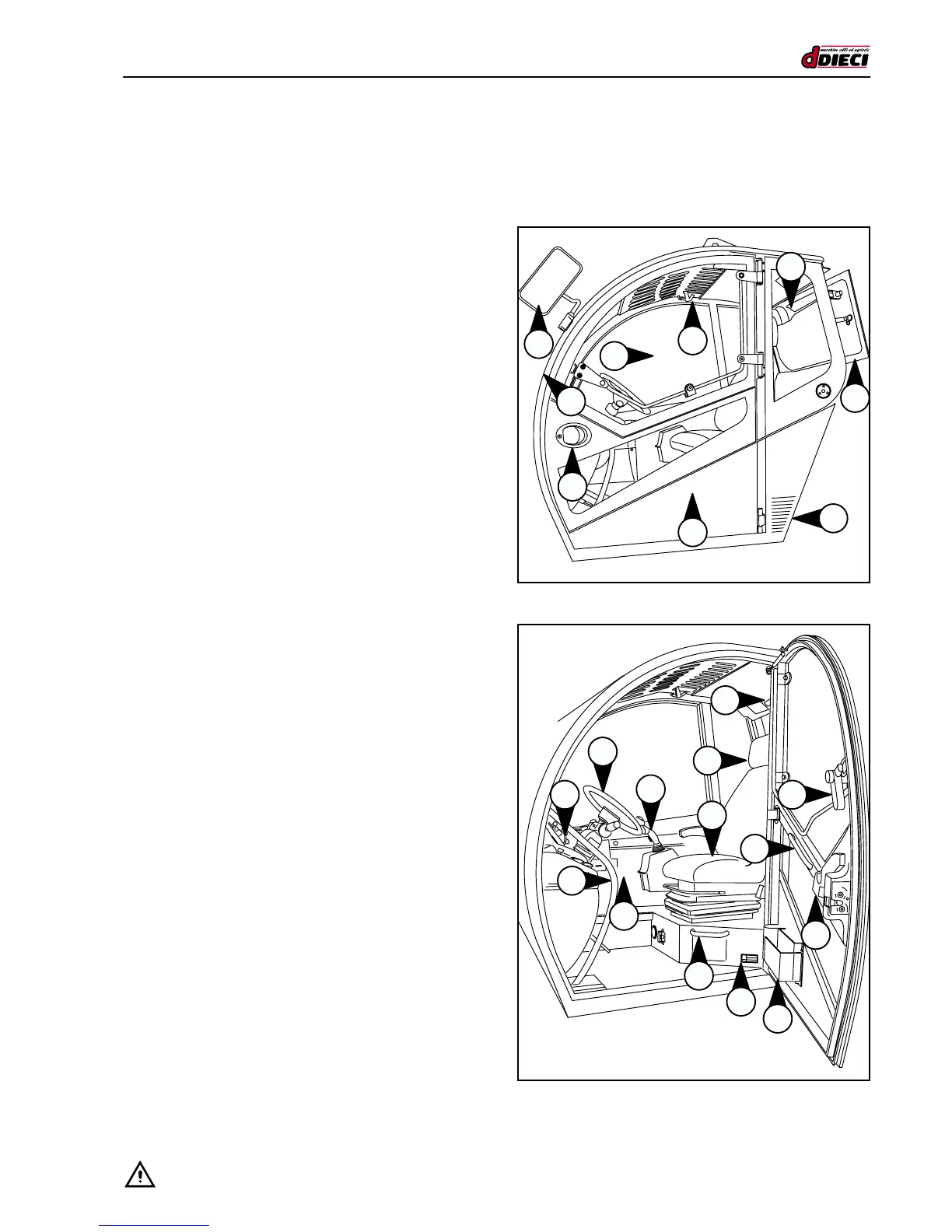

External components
Openable roof.1.
Left rear-view mirror2.
Front windscreen wiper3.
Cab door.4.
Door upper window.5.
Door handle.6.
Rear window / Emergency exit7.
Rear windshield wiper8.
Revolving light air inlet9.
Internal components
Seat.1.
Door handle.2.
Upper window handle.3.
Ashtray.4.
Courtesy compartment5.
Document compartment6.
Machine identication plate7.
Grip for climbing in/out of the cab.8.
Steering wheel. 9.
Dashboard. 10.
Joystick.11.
Indoor cab light12.
4
6
7
8
1
2
4
6
9
11
8
7
8
3
5
8
5
3
10
12
2
1
9
CAB
(Pegasus four and eight movement stabilisers)
