Dieci Pegasus - Stabilisers

C/31
- CAUTION: - Read the SAFETY REGULATIONS (in this manual) carefully for the safety of all personnel and the machine.
(g.42/C)
(g.44/C)
(g.43/C)
A
B
C
1

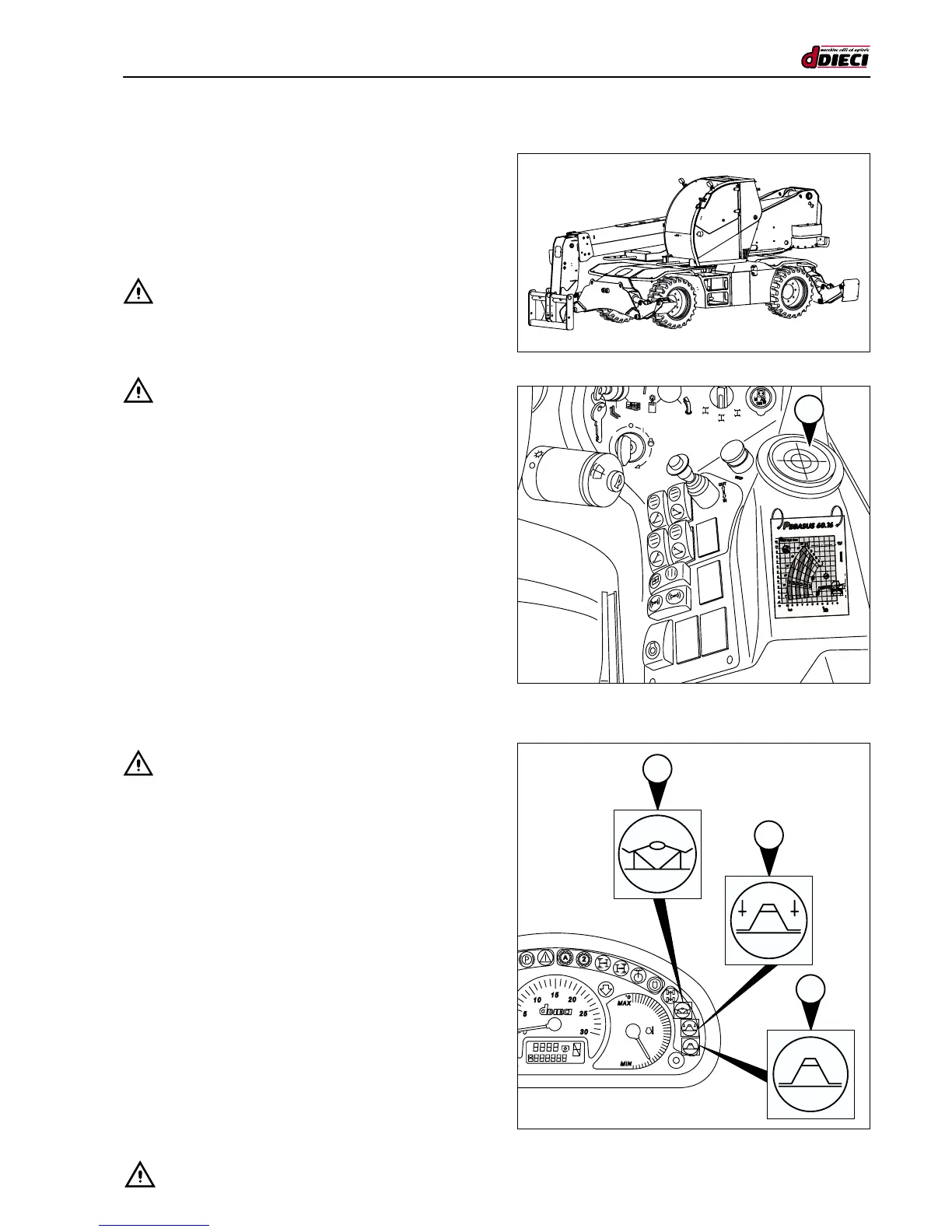

STABILISERS
The use of stabilisers improves machine stability during
lifting operations. When the machine is positioned on the
stabilisers, refer to the load diagrams.
The load control panel is able to detect automatically whe-
ther the machine is operating on tyres or stabilisers.
- CAUTION:
The machine is type-approved to work on all four completely
or partially extended stabilisers. Therefore, do not use the
machine with only 1, 2 or 3 stabilisers.
- CAUTION:
The machine is intended as correctly stabilised when all four
tyres are completely raised off the ground.
When the machine is correctly levelled on the stabilisers, this is
indicated by a spirit level installed in the cab (g.43/C Pos.“1”).
Check the spirit level to ensure the machine is levelled befo-
re starting to operate the machine.
The machine is equipped with pilot lights indicating:
- Stabilisers up (g.44/C Pos.“A”).
- Stabilisers down (g.44/C Pos.“B”).
- Stabilisers extended and positioned. Machine weight
supported properly (g.44/C Pos.“C”).
If these pilot lights do not light up, do not use the machine
until the malfunction has been found and cleared up.
A safety device prevents the stabilisers from being enabled
when the boom is more than 1.5 m above the horizontal surface.
- CAUTION:
Before using the machine on roads, completely raise and
retract all the stabilisers.
The correct sequence for the positioning the machine on the
stabilisers is as follows:
1. Place any loads on the ground.
2. Completely retract and lower the telescopic boom.
3. Align the turret with the lower chassis.
4. Level the machine.
5. Block rear axle oscillation.
6. Lower the front stabilisers.
7. Lower the rear stabilisers.
8. Level the machine if necessary using the stabilisers.
Reverse the procedure to retract the stabilisers.
