PEDALS
Accelerator
(Fig.4/D Pos.“1”)
The accelerator is electronic and does not require routine
maintenance.
Accelerator
Pegasus 38.16 (mechanical engine)
(g.5/D Pos.”1”)
The accelerator mechanically controls the injection pump.
The accelerator oil reservoir is located on the right side of
the cab.
Te low accelerator oil level is signalled by the switch-on of
the LED “1”(g.7/D) on the dashboard. The LED switches on
intermittently (T=5”; 3”on-2”off) and will be accompanied by
the buzzer for T=1.5”.
When the LED switches on:
- Interrupt the work operations.
- Bring the vehicle to a halt on at ground.
- Switch the vehicle off and remove the ignition key.
- Close and lock the cab door.
- Remove the external right lateral guard from the cab
(g.6/D Pos.”1”).
- Loosen the accelerator oil reservoir cap (g.6/D Pos.”2”)
and top-up, taking the oil to the correct level.
- Tighten the reservoir cap and re-mount the guard on the cab.
- Re-start the work operations.
- ATTENTION:
It is at the correct level when the oil is 1 cm below the top-up cap.
- ATTENTION:
Before re-starting regular work operations, check that the
alarm LED is off.
- ATTENTION:
Periodically check the condition of all hoses and/or piping.
of the brakes. If the level is drastically reduced there is a
leak in the system. Contact the DIECI dealer for the replace-
ment of any damaged, corroded or ruined piping.

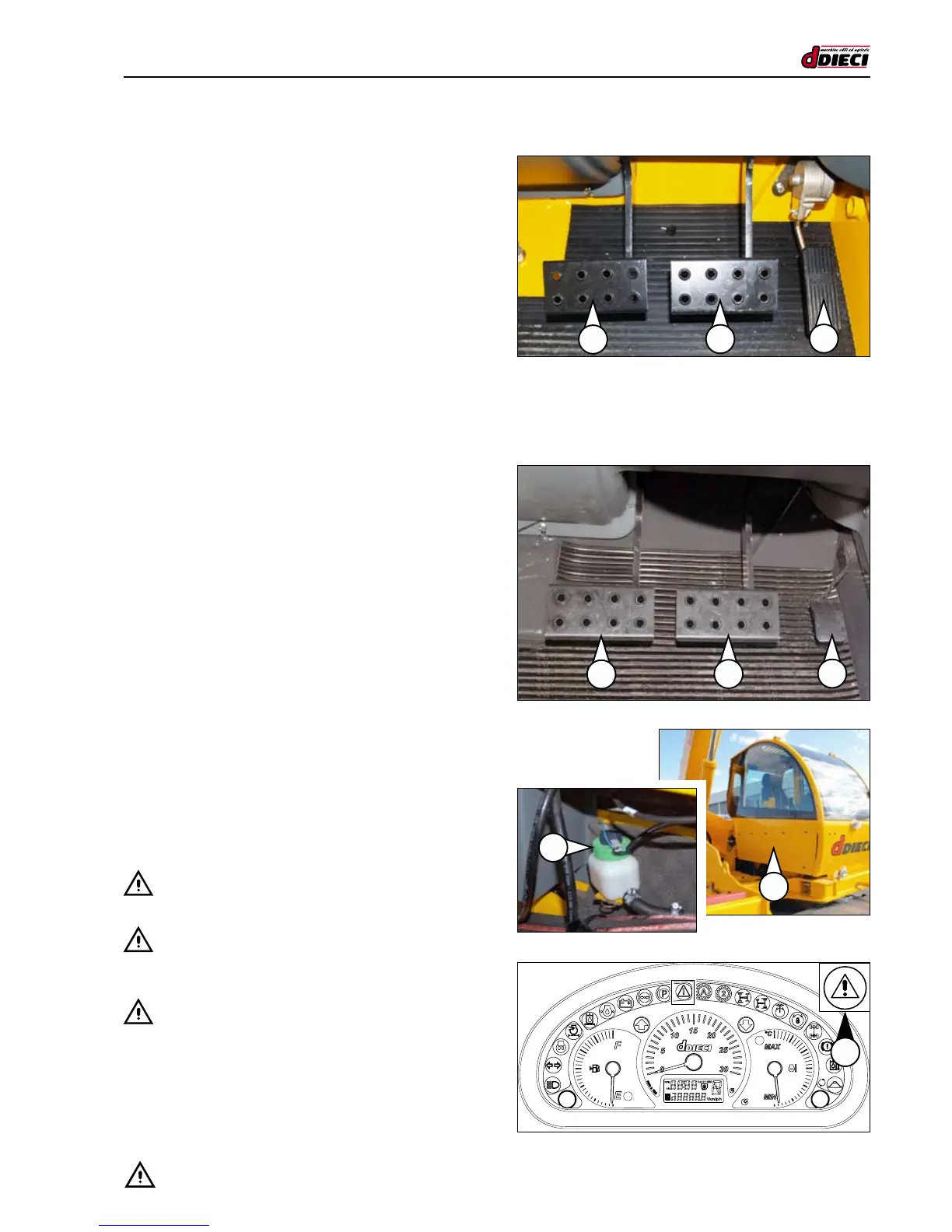

(g.4/D)
