Dieci Pegasus - Rear Light; Work Spotlight; Dual Reflector Work Spotlight

D/49
- CAUTION: - Read the SAFETY REGULATIONS (in this manual) carefully for the safety of all personnel and the machine.
1
2
1
(g.106/D) (g.107/D)
(g.108/D)
(g.109/D)
(g.110/D)
2
2
1
3
4
4
(g.105/D)
3

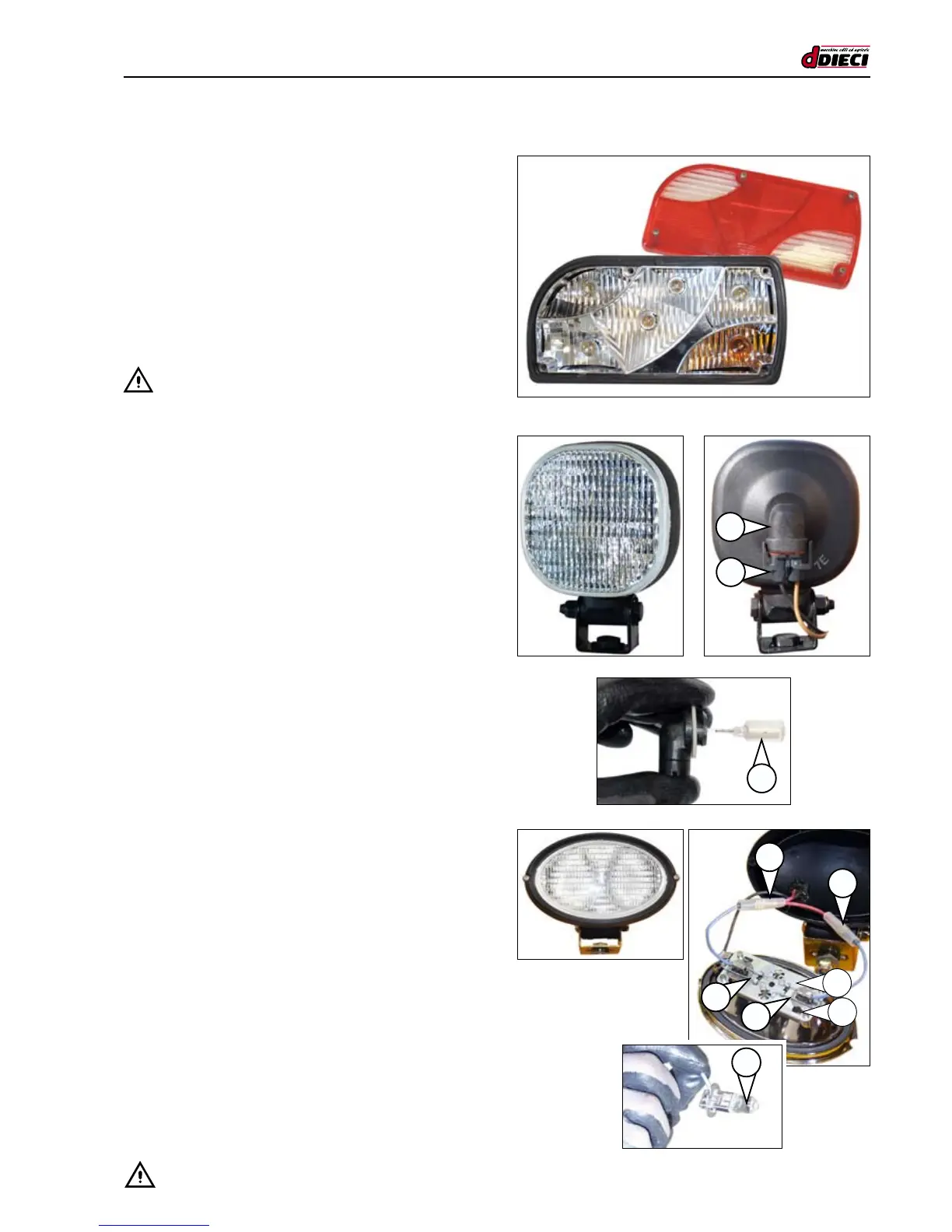

REAR LIGHT
(g. 105/D)
The rear light consists in an indicator light, rear red light,
stop light and reversing light.
To access the light bulbs:
- Stop the machine and act on the battery cut-off switch to
disconnect the power supply.
- Remove the head light power connector on the rear.
- Remove the front part of the head light by unscrewing
the screws located on the rear cover.
- CAUTION:
To re-close the head light, reverse the procedure described
above (ensure the seal is positioned correctly).
How to replace the light bulbs in the rear light.
- Press the upper part of the light bulb.
- Turn the light bulb while continuing to press to release
the light bulb.
Reverse the procedure described above to install a new light bulb.
WORK SPOTLIGHT
(g.106/D)
How to change the light bulbs
(g.108/D Pos.“1”)
- Stop the machine and act on the battery cut-off switch to
disconnect the power supply.
- Remove the spotlight power connector on the rear
(g.107/D Pos.“1”).
- Press the connector outlet on the spotlight (g.107/D Pos “2”).
- Turn the connector outlet while continuing to press to release.
Reverse the procedure described above to install a new light bulb.
DUAL REFLECTOR WORK SPOTLIGHT
(g.109/D)
How to change the light bulbs
(g.110/D Pos.“1”)
- Stop the machine and act on the battery cut-off switch to
disconnect the power supply.
- Remove the screws on the front of the spotlight.
- Remove the spotlight power connectors (g.110/D Pos.“2”).
- Push the tabs inwards to release (g.110/D Pos.“3”).
Reverse the procedure described above to install a new light
bulb. Ensure you match the slots (g.110/D Pos “4”) to gua-
rantee correct installation.
