Getting to know and using the machine
C/42
Model E.T. PEGASUS
- CAUTION: - Read the SAFETY REGULATIONS (in this manual) carefully for the safety of all personnel and the machine.
COBO02.246
(g.69/C)
(g.70/C)
A
2
1
B
C
(g.71/C)
1
2

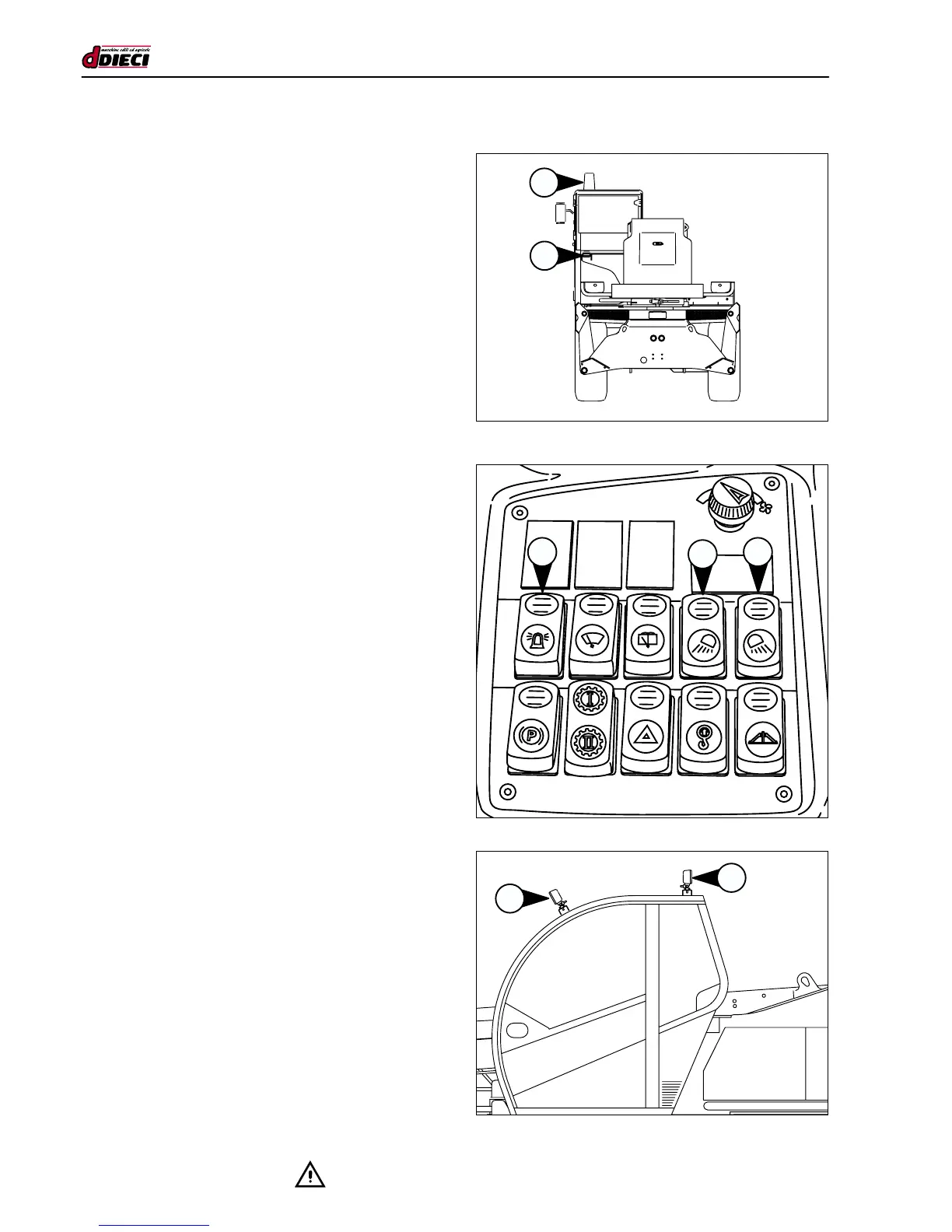

REVOLVING LIGHT SWITCH
The revolving light must be positioned above the driver’s
cab (g.69/C Pos.“1”) and must always be switched on du-
ring site and road use.
- Position the revolving light on the driver’s cab (g.69/C Pos.“1”).
- Insert the power supply connector in the outlet on the rear of
the cab (g.69/C Pos.“2”).
- Act on the switch “A” (g.70/C) to switch the light on.
A pilot light will light up on the switch to indicate the revolving
light is switched on.
FRONT CAB SPOTLIGHT SWITCH (OPTIONAL)
(g.70/C Pos.“B”)
Act on the switch (g.70/C Pos.“B”) to switch on the front work
spotlights on the cab (g.71/C Pos.“1”). A pilot light will light up
on the switch to indicate the device is switched on.
REAR CAB SPOTLIGHT SWITCH (OPTIONAL)
(g.70/C Pos.“C”)
Act on the switch (g.70/C Pos.“C”) to switch on the rear work
spotlights on the cab (g.71/C Pos.“2”). A pilot light will light up
on the switch to indicate the device is switched on.
