Dieci Pegasus - Boom Head Solenoid Valve Switch (Optional; Boom Head Work Spotlight Switch (Optional

C/45
- CAUTION: - Read the SAFETY REGULATIONS (in this manual) carefully for the safety of all personnel and the machine.
CRUSCOTTO LATERALE DESTRO - CONSENSI E SELEZIONATORI DI FUNZIONE
6
7
9
8
10
13
14
2
3
4
5
11
15
16
1
(g.76/C)
1
(g.75/C)
2
1
(g.77/C)

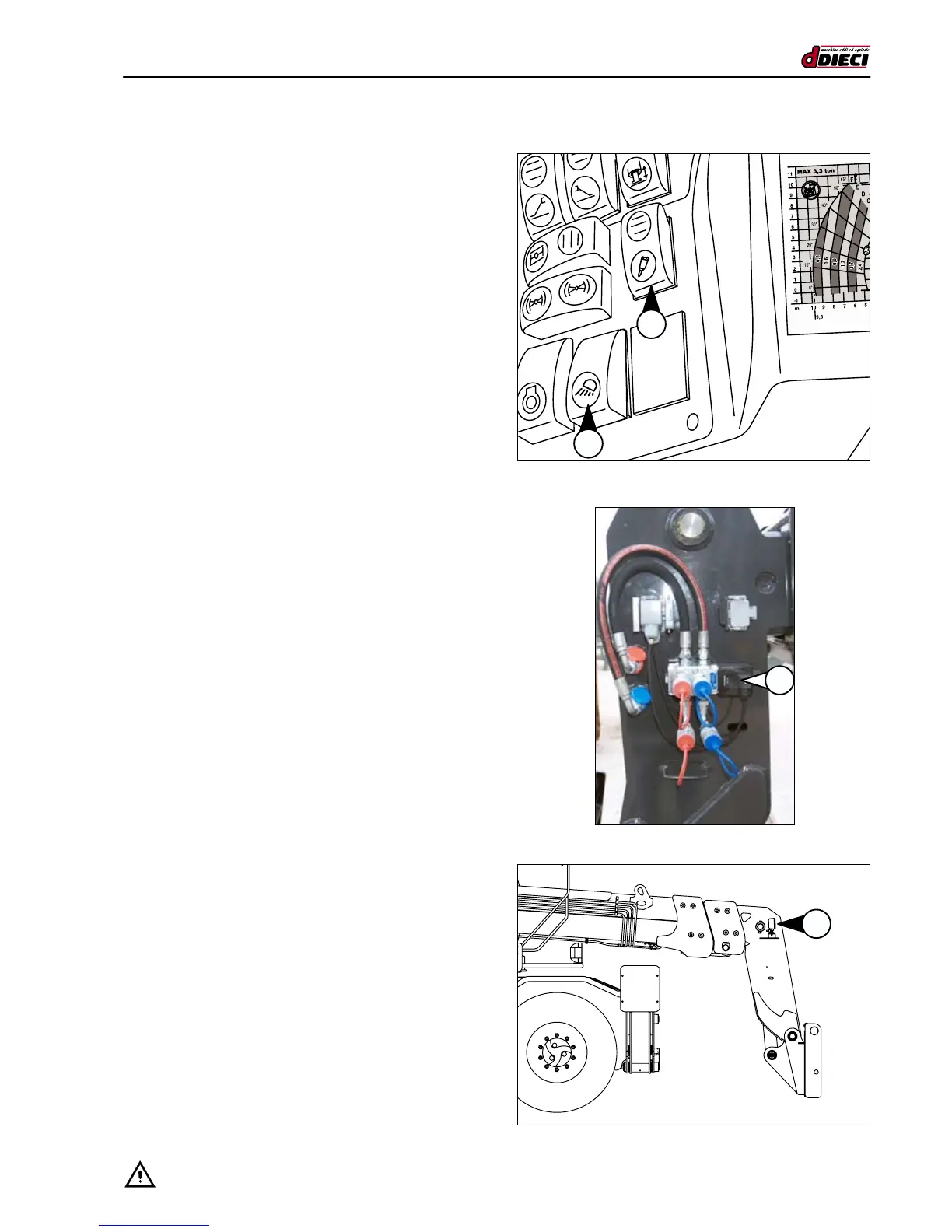

BOOM HEAD SOLENOID VALVE SWITCH
(OPTIONAL)
(g.75/C Pos.“1”)
The switch is only installed if the solenoid valve is present
on the boom head (g.75/C Pos.“2”).
With the adoption of the solenoid valve, it is possible to have
the hydraulic controls doubled on the boom head.
- Press the button (g.75/C Pos.“1”) to supply current to
the solenoid valve, which will divert the ow of oil.
The selector (fig.75/C Pos.“1”) is used in parallel with
the normal service controls; first use the selector to cho-
ose where to divert the flow of oil and then carry out the
manoeuvres with the usual service controls.
BOOM HEAD WORK SPOTLIGHT SWITCH
(OPTIONAL)
(g.75/C Pos.“C”)
Act on the switch (fig.75/C Pos.“2”) to switch on the boom
head work spotlight (g.77/C Pos.“1”). A pilot light will light
up on the switch to indicate the device is switched on.
On request, two work spotlights can be installed, one on the
right and one on the left of the boom.
