Dieci Pegasus - Machine Function Selector

Getting to know and using the machine
C/36
Model E.T. PEGASUS
- CAUTION: - Read the SAFETY REGULATIONS (in this manual) carefully for the safety of all personnel and the machine.
(g.56/C)
(g.57/C)
1
2
C
1
B
A

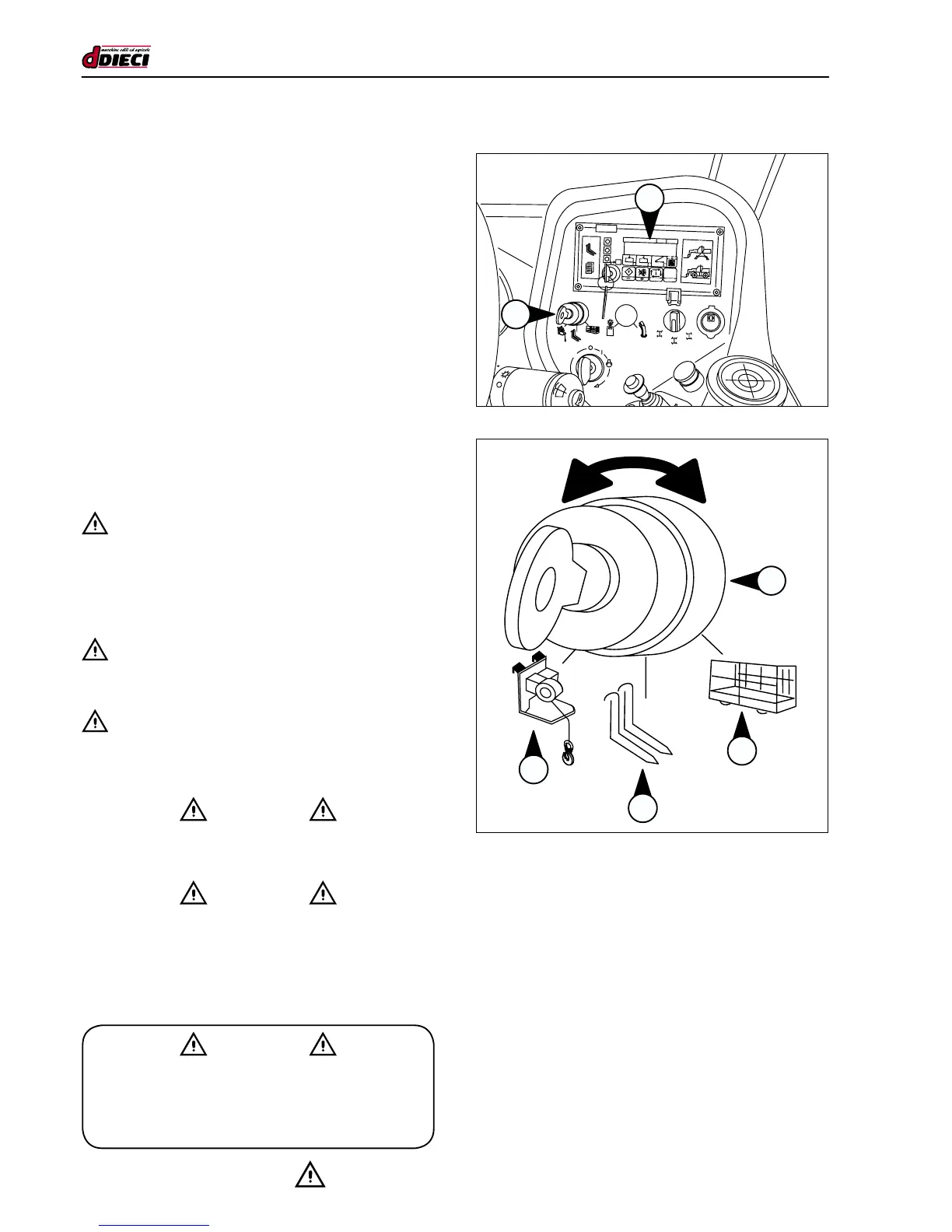

MACHINE FUNCTION SELECTOR
The machine features a “machine function selector”
(fig.56/C Pos.“1”) which, together with the control panel
(g.56/C Pos.“2”), must be set on the tool you wish to use.
There are three categories to choose from:
• WINCH
for use with winches, crane extensions, crane extensions
with winch, jibs, hook for fork carriage (g.57/C Pos.“A”).
• FORKS
for use with forks, buckets, mixing buckets, ladles, cen-
tering handler (g.57/C Pos.“B”).
• BASKETS
for use with every type of man basket which can be as-
sembled on the machine (g. 57/C Pos.“C”).
Select the desired tool by turning the key clockwise or anti-
clockwise. The selector features a key so that the site manager
can remove the key once the type of tool has been selected
and to ensure that no one else can tamper with the selector.
- CAUTION:
Before use, ensure the “machine function selector” and the
control panel are programmed to work with the tool assem-
bled on the boom head.
To nd out which tools can be used with the machine, con-
sult the DIECI price list or your dealer/reseller.
- CAUTION:
Do not assemble any attachments other than the attach-
ments recommended by DIECI.
- CAUTION:
Only use original DIECI attachments. DIECI shall not be
held liable for any damage to the machine, things or people
caused by the use of non-original attachments.
- CAUTION -
IT IS FORBIDDEN to use the machine with an attachment
assembled that is different from the attachment selected
with the “machine function selector” and the control panel.
- CAUTION -
The attachment selected with the “machine function
selector” must always correspond to the attachment
programmed on the control panel display.
IT IS FORBIDDEN to operate with different selections.
By selecting the man basket, it is not possible to select a
steering mode other than the set mode.
- CAUTION -
THE BASKET CAN ONLY BE OPERATED FROM THE
CAB WITH THE “MACHINE FUNCTION SELECTOR” ON
“FORKS” (FIG.57/C POS.“B”) AND ONLY TO LOWER THE
BASKET TO THE GROUND IF THE PERSON ON THE
BASKET IS UNWELL OR INJURED.
