DOUBLE JOYSTICK (OPTIONAL)
Electro hydraulic proportional power control with two
joysticks (optional)

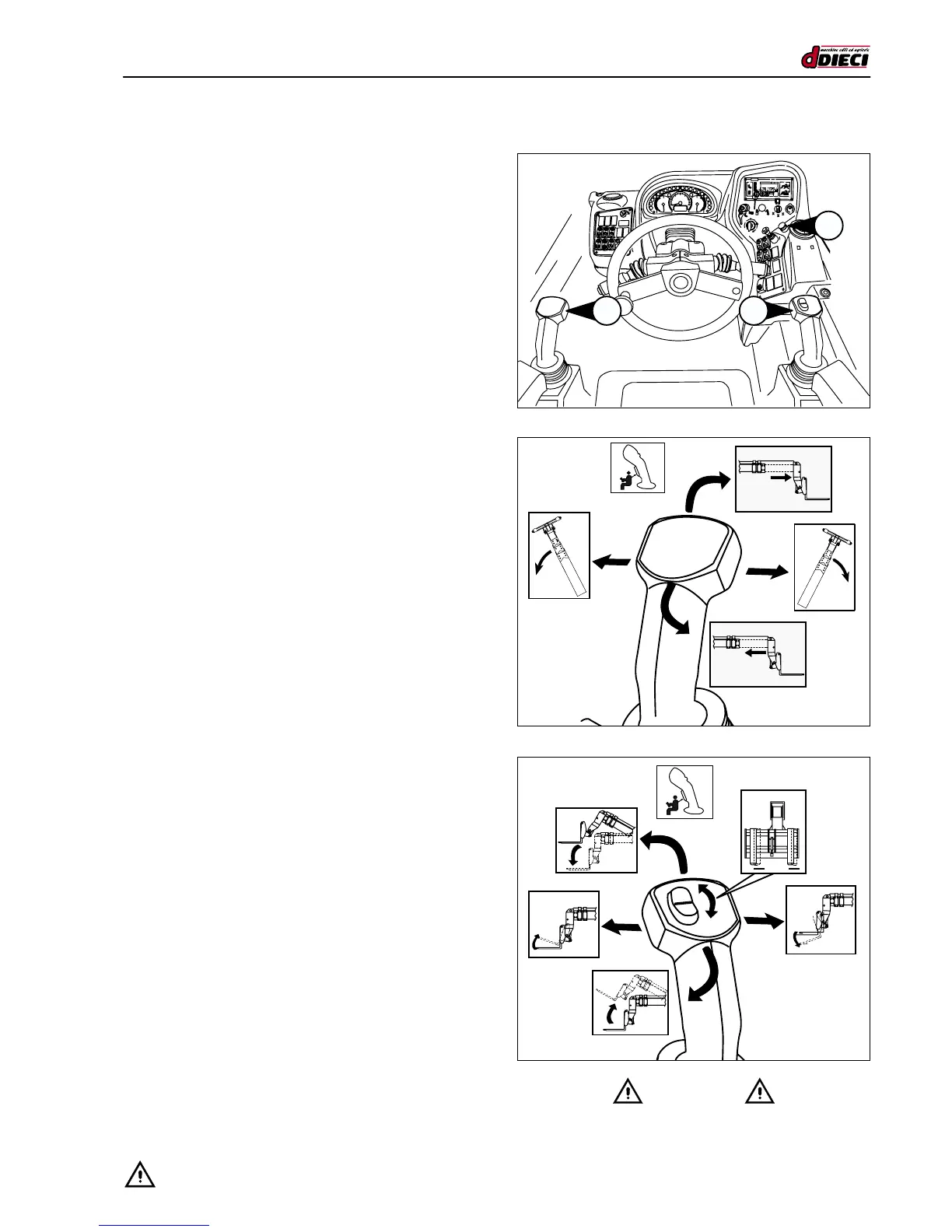

The telehandler can be equipped with 2 electro hydraulic
power controls, one positioned on the left (g.53/C Pos.“1”)
and one on the right (fig.53/C Pos.“2”) of the operator.
In machines equipped with two joysticks the left joystick hol-
der armrest is mobile, to ease getting in and out of the cab.
If the armrest is not correctly fastened into its housing, the
machine movements are disabled.
The joysticks are also protected by a “dead man” safety sy-
stem, which only allows the joystick to be moved if the but-
ton on the front grip of the joystick (g.54/C Pos.“2”, g.55/C
Pos. “2”) is pressed before and during the entire manoeuvre.
This ensures the operator cannot accidentally activate the joystick.
The power control activates:
• Raise/lower boom.
• Pivot and turn the forks.
• Extend/retract boom.
• Turn turret right/left.
• Additional movements.
Left joystick movements
(g.54/C)
- To extend the telescopic boom, push the joystick forwards
(g. 54/C Pos. “A”).
- To retract the telescopic boom, push the joystick backwards
(g. 54/C Pos. “B”).
- To rotate the turret right, shift the joystick right
(g.54/C Pos.”D”).
- To rotate the turret left, shift the joystick left
(g.54/C Pos.“C”).
Right joystick movements:
(g.55/C)
- To raise the boom, pull the joystick backwards
(g.55/C Pos.“B”).
- To lower the boom, pull the joystick forwards
(g.55/C Pos.“A”).
- To tilt the fork downwards, shift the joystick right
(g.55/C Pos.“D”).
- To tilt the fork upwards, shift the joystick left
(g.55/C Pos.“C”).
- Press selector “1” (g.55/C) towards the front or rear of
the machine to control the function of boom head auxi-
liary attachments.
It is possible to carry out manoeuvres simultaneously by mo-
ving the joysticks together.
- CAUTION -
In case of emergency, press the emergency push
button (g.53/C Pos.“3”) to disable the joystick.
