Getting to know and using tha machine
Integrated devices
C/72
Model E.T. PEGASUS
- CAUTION: - Read the SAFETY REGULATIONS (in this manual) carefully for the safety of all personnel and the machine.

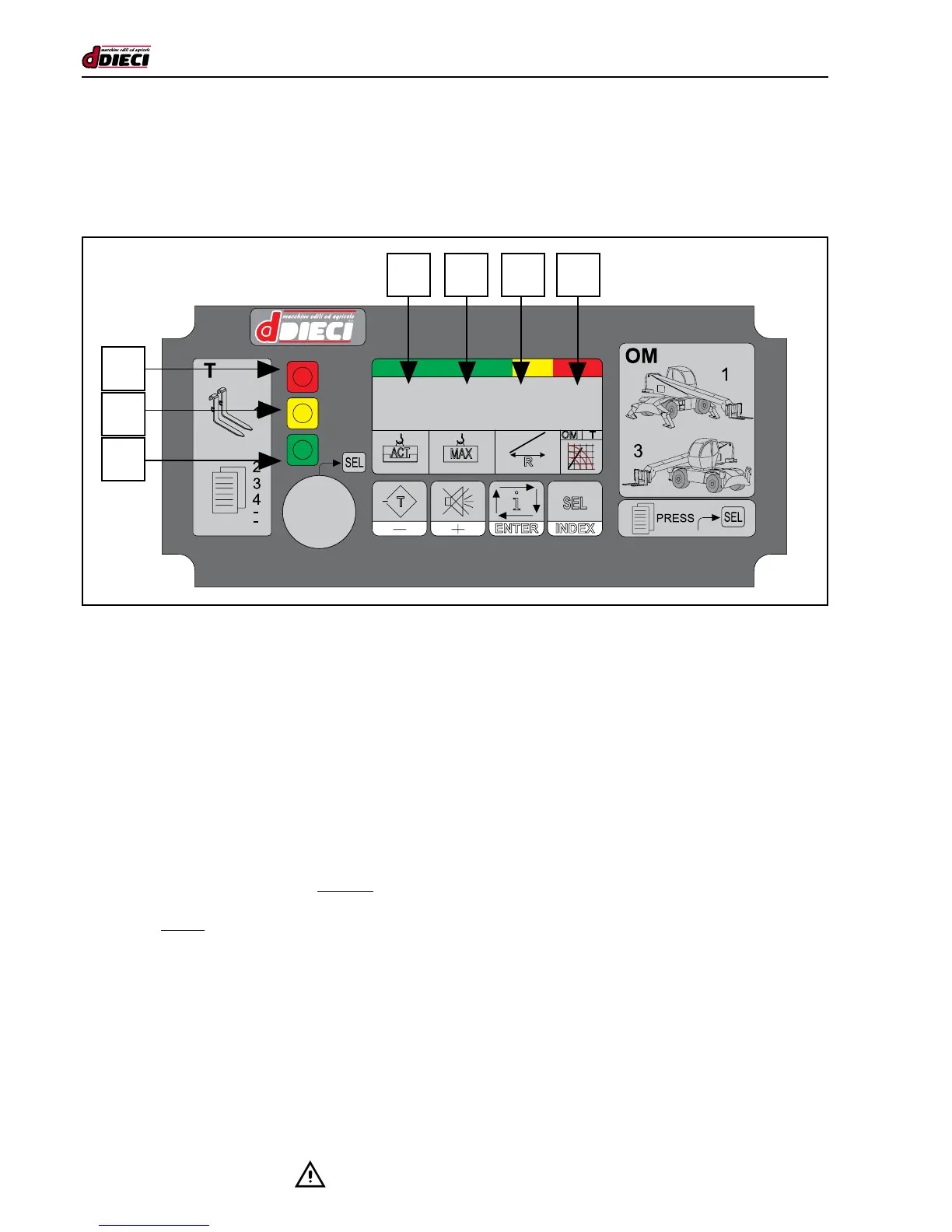

DISPLAY
Operator panel
Load condition % and alarms
1. The LCD bar on the alphanumeric display indicates the percentage of the load that is
being lifted compared to the maximum load allowed in the working conditions.
2. GREEN reference: Safety zone.
3. YELLOW reference: Warning zone (load lifted more than 90% of admitted load)
4. RED reference: Block zone (load lifted more than 100% of admitted load)
5. Green pilot light on: Safety
6. Yellow pilot light on: warning (external audible warning device enabled)
7. Red pilot light on: Movements blocked (external audible warning device enabled)
The data displayed give the operator an indication of the work conditions.
The indicated weights and measurements are subject to margins of error (10% on the maximum values).
E.g. 3.6 ton > 4.0 ton > 4.4 ton
2.2 4.0 6.1 11
2
1 3
4
6
7
5
