JOYSTICK (STANDARD)
Electro hydraulic proportional power control with joystick

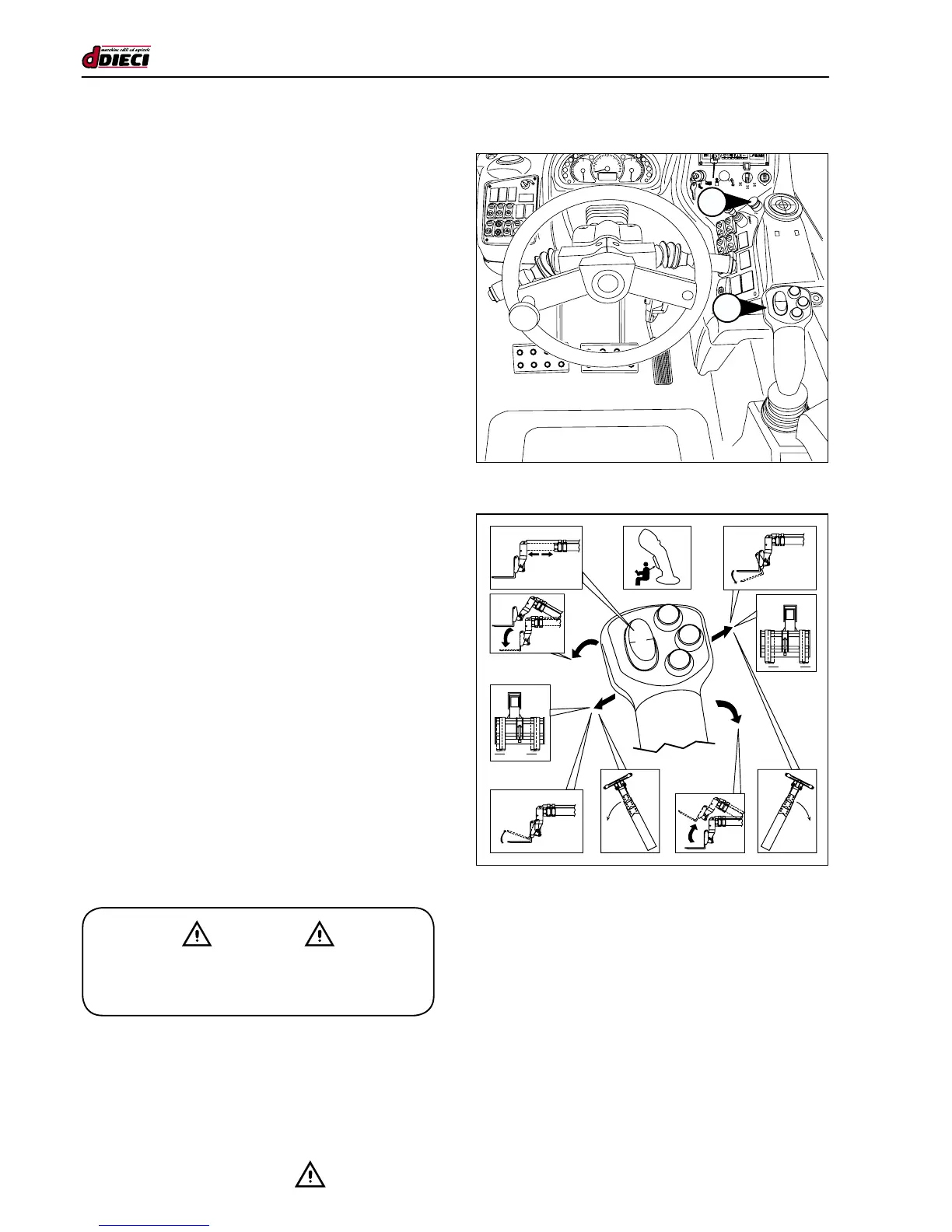

(g.51/C Pos.“1”)
The telehandler is equipped with an electro hydraulic power
control located to the right of the operator (g.51/C Pos.“1”)
The power control activates the following operations:
• Raise/lower the boom
• Pivot and turn the forks.
• Extend/retract boom.
• Turn turret right/left.
• Additional movements.
The joysticks are protected by a “dead man” safety system,
which only allows the joystick to be moved if the button on
the front grip of the joystick (fig.52/C Pos.“C”) is pressed
before and during the entire manoeuvre. This ensures the
operator cannot accidentally activate the joystick.
- To raise loads, pull the joystick backwards “B” (g.52/C).
- To lower loads, push the joystick forwards “B” (g.52/C).
- To tilt the fork downwards, press push button “1” and
move the joystick to the right (g.52/C).
- To tilt the fork upwards, press push button “1” and move
the joystick to the left (g.52/C).
- To extend the boom, press selector “A” towards the front
of the machine (g.52/C).
- To retract the boom, press selector “A” towards you (g.52/C).
- Press button “2” and shift the joystick left or right to control
the function of boom head auxiliary attachments (g.52/C).
- To rotate the turret right, press button “3” and shift the
joystick right (g.52/C).
- To rotate the turret left, press button “3” and shift the joy-
stick left (g.52/C).
It is possible to carry out manoeuvres simultaneously by moving
the joystick diagonally and activating selector “A” (g.52/C).
- CAUTION -
In case of emergency, press the emergency
push button (g.51/C Pos.“2”) to disable the joystick.
