Getting to know and using the machine
C/6
Model E.T. PEGASUS
- CAUTION: - Read the SAFETY REGULATIONS (in this manual) carefully for the safety of all personnel and the machine.
1. Front right stabiliser
2. Front left stabiliser
3. Front right wheel
4. Front left wheel
5. Attachment holder plate
6. Boom safety support rod
7. Front right light
8. Front left light
9. Cab
10. Telescopic boom
11. Left rear-view mirror
12. Right rear-view mirror
1. Rear right stabiliser
2. Rear left stabiliser
3. Rear right wheel
4. Rear left wheel
5. Timing system and control unit
6. Rear window - Emergency exit
7. Rear right light
8. Rear left light
9. Left rear-view mirror
10. Right rear-view mirror
11. Revolving light power outlet
1. Front right stabiliser
2. Front left stabiliser
3. Front right wheel
4. Front left wheel
5. Attachment holder plate
6. Boom safety support rod
7. Front right light
8. Front left light
9. Cab
10. Telescopic boom
11. Right rear-view mirror
12. Left rear-view mirror
1. Rear right stabiliser
2. Rear left stabiliser
3. Rear right wheel
4. Rear left wheel
5. Timing system and control unit
6. Rear window - Emergency exit
7. Rear right light
8. Rear left light
9. Right rear-view mirror
10. Left rear-view mirror
11. Revolving light power outlet
1
3
2
4
5
6
7
8
10
11
12
9
COBO02.246
2
1
3
7
6
10
9
5
4
8
11

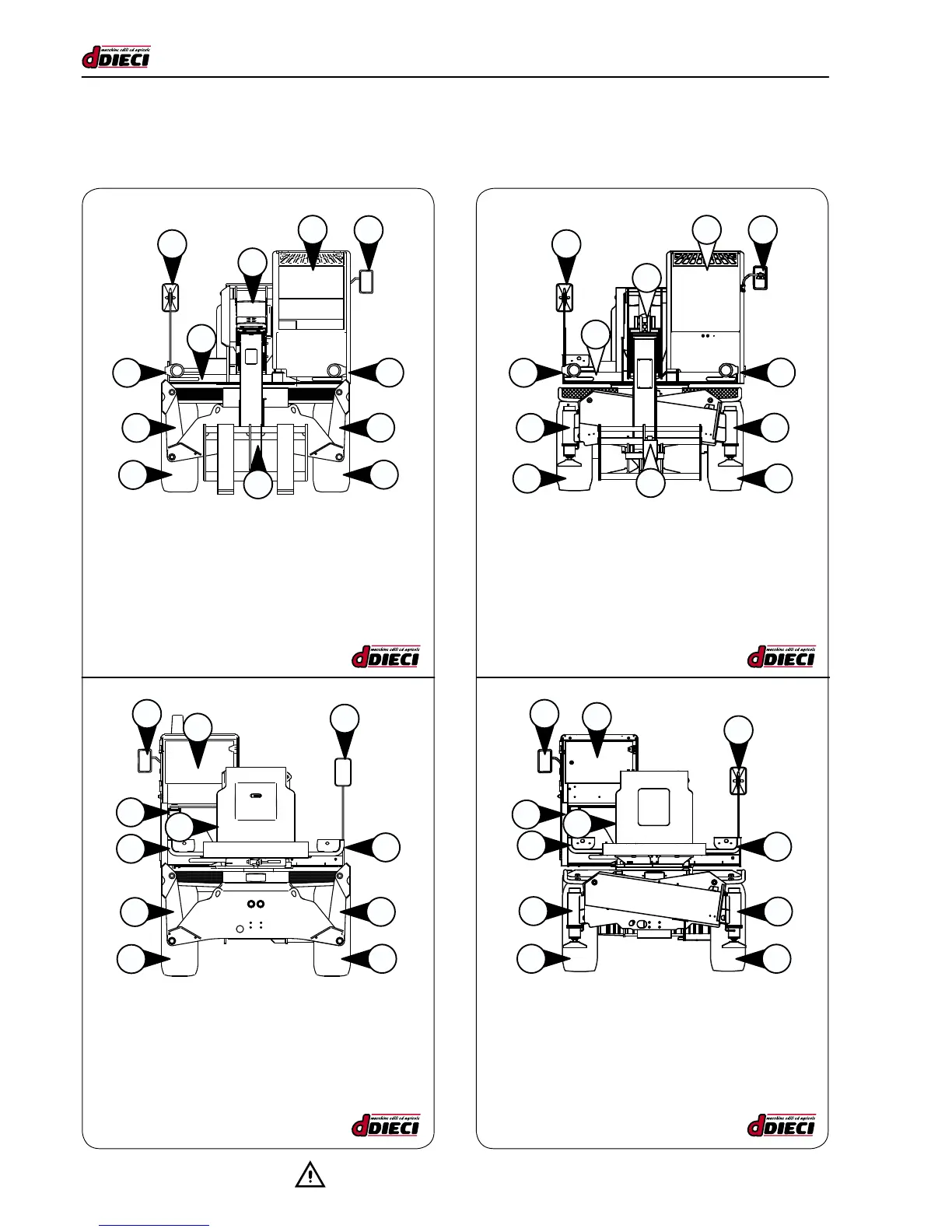

Machine with four movement stabilisers
(Pegasus 70.11, 60.16, 30.16, 40.17, 38.16)
Machine with eight movement stabilisers
(Pegasus 45.19, 45.21, 50.21, 40.25)
Front view
Rear view
COBO02.246
1
3
2
4
6
7
8
10
11
12
9
5
Front view
2
1
3
7
6
10
9
4
8
5
11
Rear view
