Dieci Pegasus - Page 297

G/5
(1.3 m)
AXB1487/3B
(4.5 m)

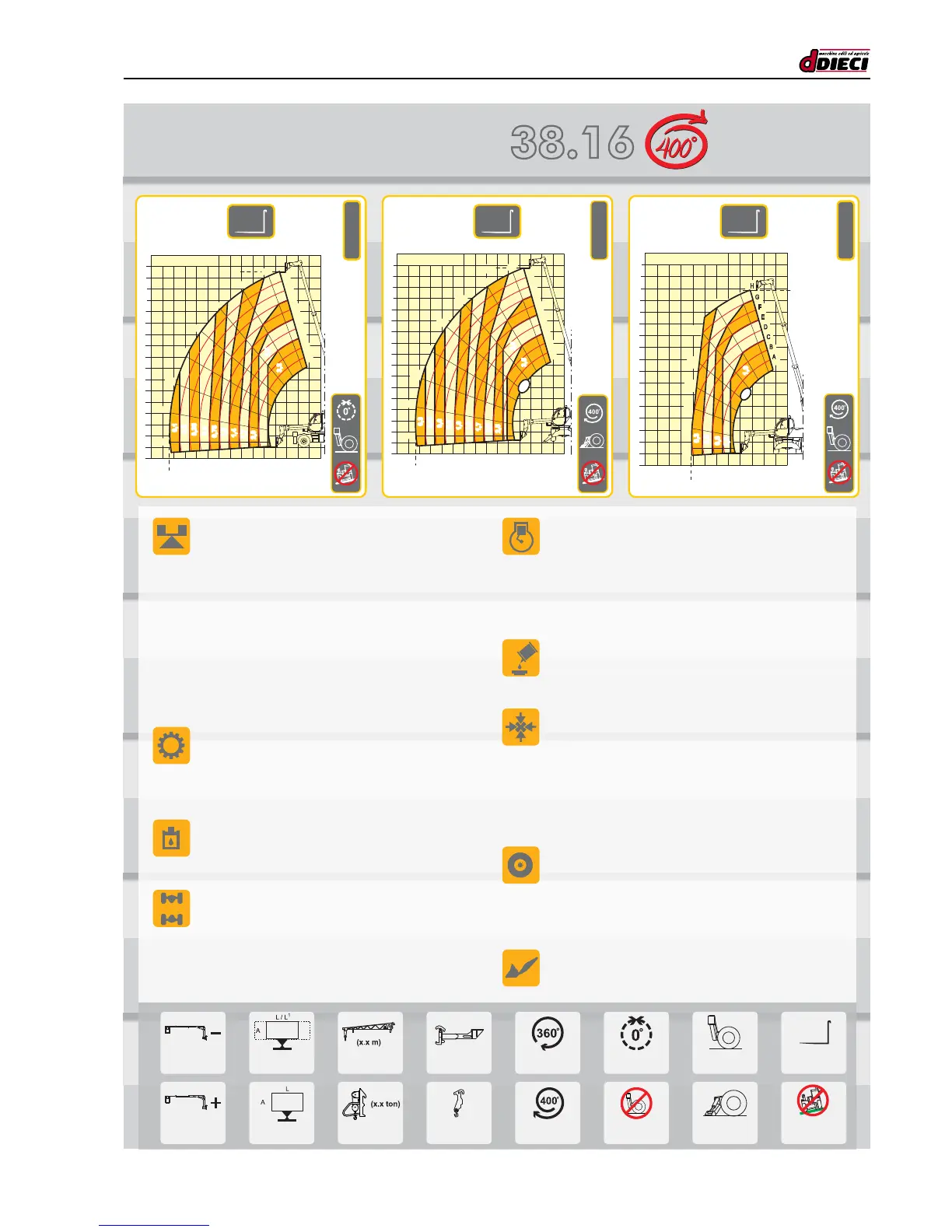

Pegasus 38.16
AXB1487/1
AXB1487
AXB1487/12
AXB1487/8
AXB1487/25B
AXB1487/24B
AXB1487/5B AXB1487/6B
+
Max.
kg
= 300 kg
(2.5 ton)
(3.3 ton)
120
240 / 420
120
215
AXB1487/2B
(2.5 m)
AXB1487/14
+
Max.
kg
= 800 kg
AXB1487/9B
MAX 2,0 ton
m
14 12 10 8 6 4 2 013 11 9 7 5 3 115
0°
10°
20°
30°
40°
50°
60°
70°
15,2
0
-1
2
1
3
4
5
6
8
7
10
9
11
14,1
12
13
14
15
16
17
1,6
1,2
0,9
0,7
0,5
0,3
0,2
0,1
2,0
1,6
1,2
0,9
0,7
0,5
0,3
0,2
0,1
2,0
A
B
C
D
E
F
G
H
I
MAX 3,3 ton
m
14 12 10 8 6 4 2 013 11 9 7 5 3 1
0°
10°
20°
30°
40°
50°
60°
70°
15,3
0
-1
2
1
3
4
12
5
6
8
7
10
9
11
15
13
14
16
17
13,15
A
B
C
D
E
F
G
H
I
1,7
1,3
0,9
0,7
0,4
0,3
0,1
2,5
3,3
1,7
1,3
0,9
0,7
0,4
0,3
0,1
2,5
3,3
17
16
14
15
13
11
12
10
8
9
7
6
4
3
5
1
0
-1
2
MAX 3,8 ton
3,8
ENGINE
IVECO NEF - TA - 74 kW ENGINE
Maximum power:............................. 74 kW (101 hp) at 2200 rpm
Operating principle:............................. four-stroke, diesel engine
Cylinder number and layout:............................. 4, vertical in line
Displacement:............. 4485 cm
3
- Aftercooler turbo compressor
Cooling system:.................................................................. liquid
SYMBOLS KEY
Extendable
front Basket
Extendable
three-sided basket
Jib
(Measurements)
Winch
(Capacity)
Continuous
rotation
Front
position
Stabilizers
raised
Front
fixed basket
Three-sided
fixed basket
Jib
(Measurements)
Fork-carrying
plate hook
Non-continuous
rotation
Do not work
on tyres
Stabilizers
lowered
DO NOT maneuver
if the machine
is NOT levelled
TYRES
Tyres:......................................................................... 405/70x20"
PERFORMANCES
Maximum capacity:........................................................ 3.800 kg
Capacity at maximum height on stabilizers:.................. 2.000 kg
Capacity at maximum height on tyres:........................... 1.700 kg
Capacity at maximum boom extension on stabilizers:...... 300 kg
Capacity at maximum boom extension on tyres:.............. 300 kg
Maximum lifting height on stabilizers:............................. 15,70 m
Maximum lifting height on tyres:..................................... 13,80 m
Maximum horizontal boom extension:............................ 13,35 m
Boom extension at maximum height:............................... 3,70 m
Fork tilting angle:.................................................................. 134°
Tearing force:............................................................. 5.700 daN
Towing force:............................................................. 7.300 daN
Maximum allowable slope:.................................................. 40 %
Total empty weight:...................................................... 13.100 kg
Max speed:..................................................................... 30 km/h
TRANSMISSION
Transmission:............... Hydrostatic with variable capacity pump
Hydraulic engine:............................... with automatic adjustment
Reversing gear:............................................... Electro - hydraulic
Inching pedal for controlled forward movement
Servocontrolled 2 speed gearbox
REFUELLING (litre)
Hydraulic system (total):...................................................... 245
Fuel tank:............................................................................... 126
STANDARD DEVICES
Hydraulic movements with proportional control distributor .
Anti-tipping device with block for hazardous movements.
Turret rotation 400°.
Oscillation block on rear axle.
Hydraulic socket for possible accessories on boom head.
Closed soundproof FOPS approved driver’s cab, with heating.
Stabilizers.
OPTIONALS AND ACCESSORIES
Optionals and Accessories:............... see the relevant catalogue.
HYDRAULIC SYSTEM
Gear pump with capacity at max speed:......................... 100 lt/1'
Max working pressure:.................................................... 230 bar
Control distributor with joystick:...................... 5 in 1 proportional
DIFFERENTIAL AXLES
Steering axles:......................... 2, with planetary reduction gears
Type of steering:..................... 4 wheels / transversal / 2 wheels
Front axle:...................................................................... levelling
Rear axle:........................................ oscillating (can be blocked)
Service brake:.................... oil bath on the 4 wheels with double
hydraulic system and servo brake
Negative parking brake.
Equipment
Forks
MAX 3,2 ton
15,50
0
-1
2
1
3
4
12
5
6
8
7
9
15
13
14
16
14 12 10 8 6 4 2 013 11 9 7 5 3 1
0°
10°
20°
30°
40°
50°
60°
70°
A
B
C
D
E
F
G
H
I
11
10
m
0,1
0,2
0,35
0,6
0,75
1,0
1,4
1,7
2,0
2,5
3,2
0,1
0,2
0,35
0,6
0,75
1,0
1,4
1,7
2,0
2,5
3,2
13,4
13,4
15,70
MAX 3,8 ton
0
-1
2
1
3
4
12
5
6
8
7
10
9
11
15
13
14
16
14 12 10 8 6 4 2 013 11 9 7 5 3 1
0°
10°
20°
30°
40°
50°
60°
70°
A
B
C
D
E
F
G
H
I
m
0,3
0,45
0,6
0,8
1,0
1,3
1,7
2,0
2,5
3,0
3,5
0,3
0,45
0,6
0,8
1,0
1,3
1,7
2,0
2,5
3,0
3,5
3,8
0
-1
2
1
3
4
12
5
6
8
7
10
9
11
15
13
14
16
m 10 8 6 4 2 011 9 7 5 3 1
0°
10°
20°
30°
40°
50°
60°
70°
A
B
C
D
E
F
G
H
8,10
MAX 2,3 ton
13,80
0,3
0,6
0,8
1,3
1,8
0,3
0,6
0,8
1,3
1,8
2,3
