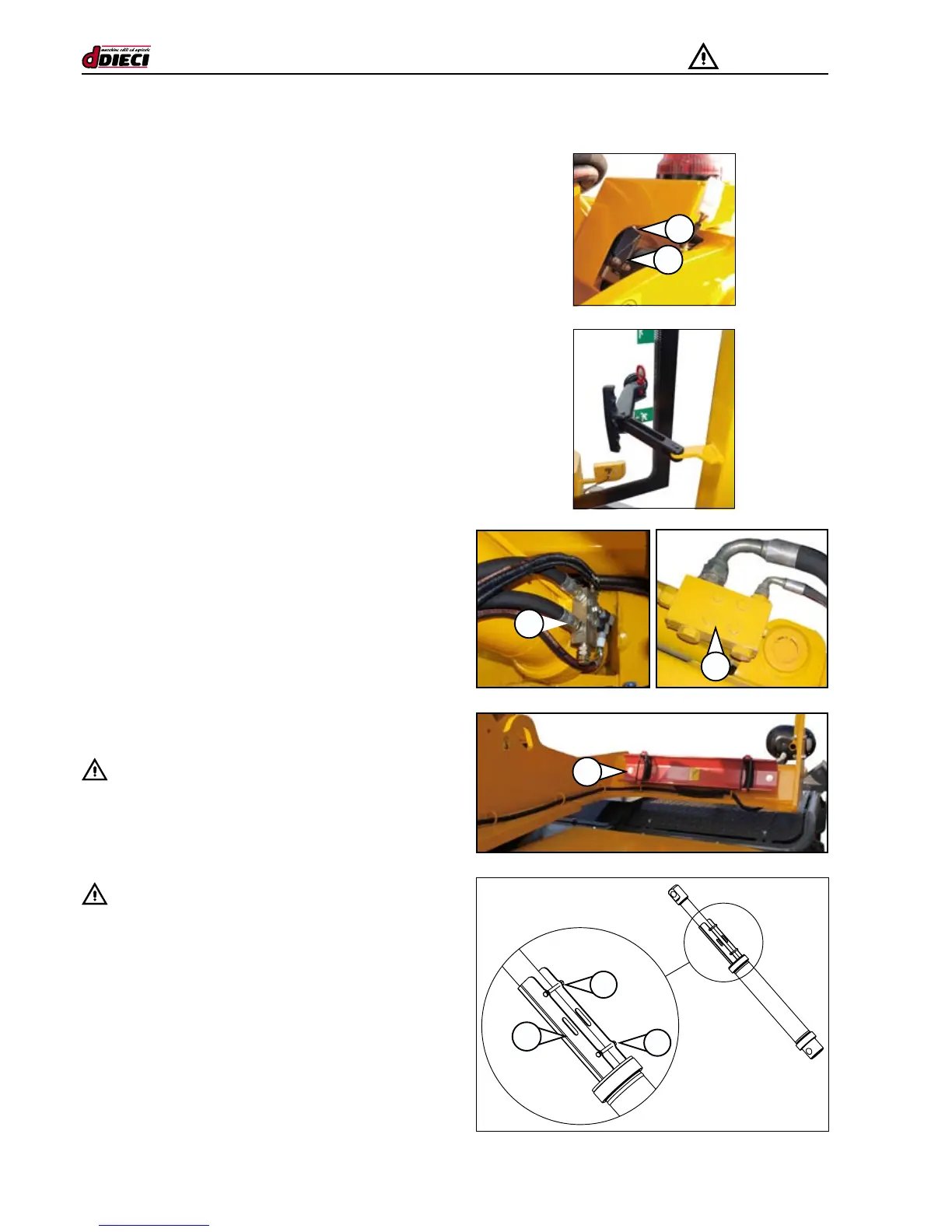

Cab emergency exit (rear cab window).
(g.14/B)
Check valve on all hydraulic cylinders.
(g.15/B - Pos.“1”)
Boom descent limit microswitch.
(g.13/B - Pos.“1”)
Boom ascent limit microswitch.
(g.13/B - Pos.“2”)
(g.17/B)
(g.16/B)
(g.15/B)
(g.14/B)
1
1
1
(g.13/B)
1
2
2
2
1
Safety rod for boom support.
(g.16/B - Pos."1")
- ATTENTION:
The boom support spacer must only be used during routine
maintenance operations.
When carrying out maintenance work on the boom raising
cylinder or on the related block valve, the boom must be supported
by a suitable raising mechanism (Minimum capacity 4 ton.)
- ATTENTION:
To insert the spacer, proceed as follows:
- Completely close the boom extensions
- Raise the boom the minimum height necessary to mount
the spacer to the rod
- Lock the spacer (fig.17/B - Pos."1") with the relevant
hooks (g.17/B - Pos."2").
