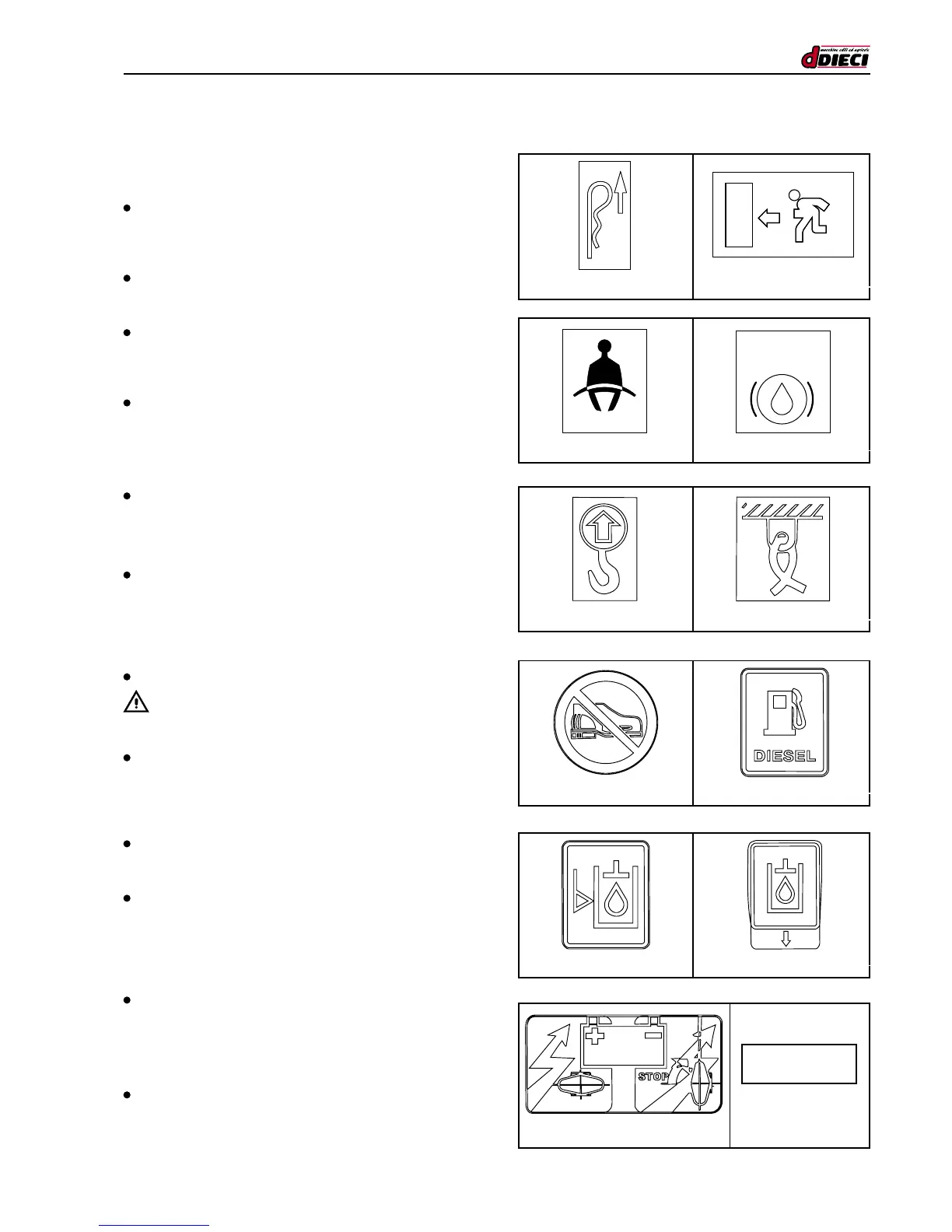

Use and maintenance stickers.
On the rear window (g.34/B)
Shows the direction in which to remove the locking pin that
prevents the window from being opened completely
On the rear window (g.35/B)
Indicates the emergency exit
On the left of the dashboard (g.36/B)
Indicates that the seat belts have to be fastened when using
the machine.
On the side of the brake oil tank (g.37/B)
Indicates the type of oil used in the braking system.
On the chassis (g.38/B)
Shows the four places where the machine can be anchored
if it needs to be lifted.
Below the chassis (g.39/B)
Shows the four places where the machine can be towed or
anchored for transportation.
On parts that must not be stepped on (g.40/B)
- DANGER:
Keep off "danger of breakage".
On the diesel tank (g. 1/B)
Type of fuel to use.
On the side of the hydraulic oil tank (g.42/B)
Hydraulic oil level indicator.
On the hydraulic oil tank (g.43/B)
Indicates the hydraulic oil top up cap.
Below the cab (g.44/B)
Indicates how to disconnect the machine electrical system.
(It is compulsory to disconnect the machine electrical system
using the battery cut-out during all maintenance operations
where the engine must be switched off).
On the four mudguards (g.45/B)
BelowIndicates the recommended tyre pressure.
