Reprocessing
122 Instructions for use Oxylog 3000 plus SW 1.n

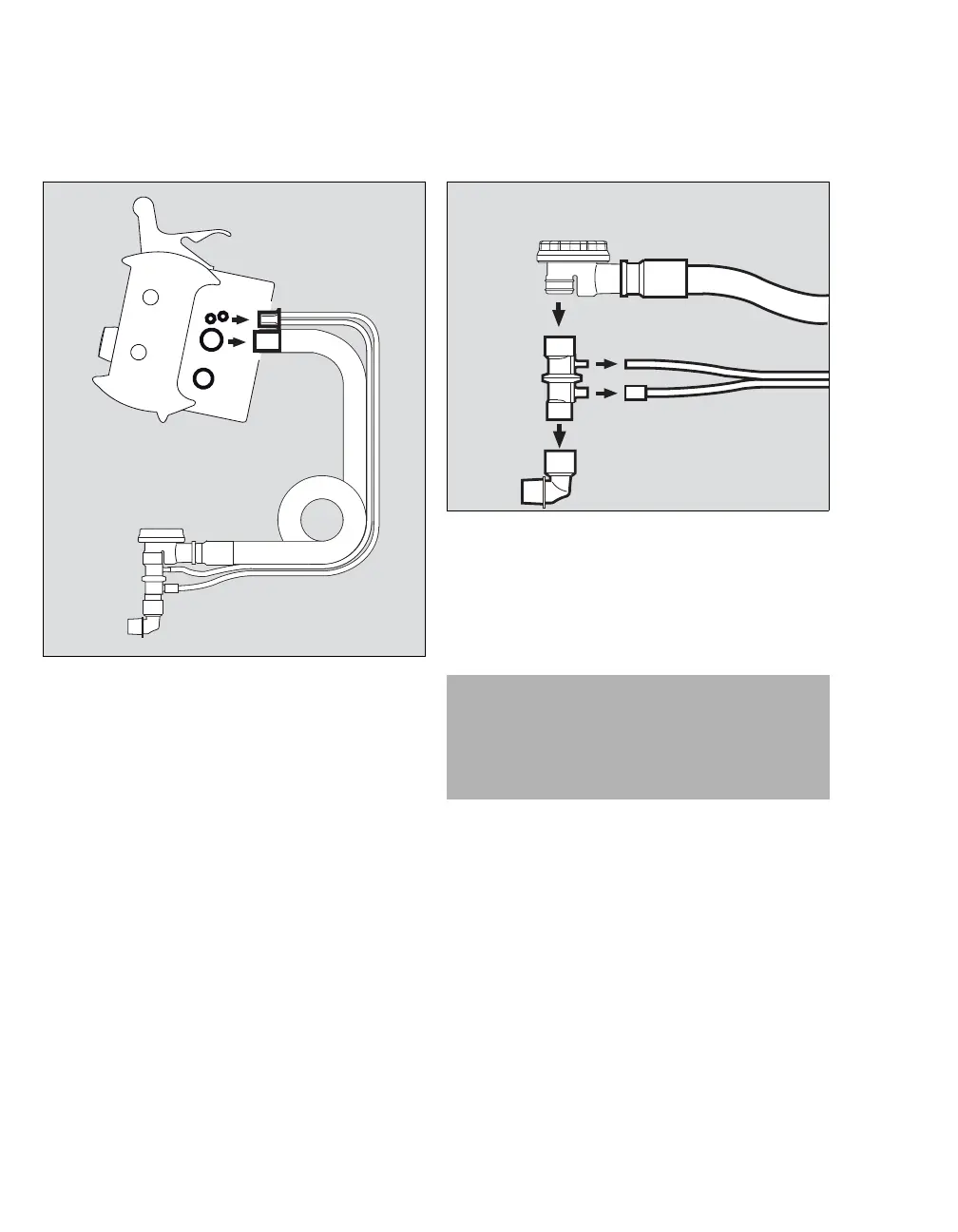

Removing the reusable breathing circuit for
adults
1 Disconnect the breathing hose (A) from the
expiratory port.
2 Detach the flow measuring lines (B) from the
connectors.
Disassembling the reusable breathing circuit
for adults
1 Disconnect the flow sensor (A) from the
breathing valve.
2 Carefully detach the flow measuring lines (B)
from the flow sensor.
Pull the flow measuring lines straight off the
connectors.
3 Detach the angled connector (C) from the flow
sensor.
4 Detach the breathing hose (D) from the
breathing valve.
046
044
CAUTION
Do not twist or use force when disconnecting the
flow measuring lines from the flow sensor noz-
zles.
Otherwise the flow sensor may be damaged.
