Instructions for use Oxylog 3000 plus SW 1.n 37
Assembly

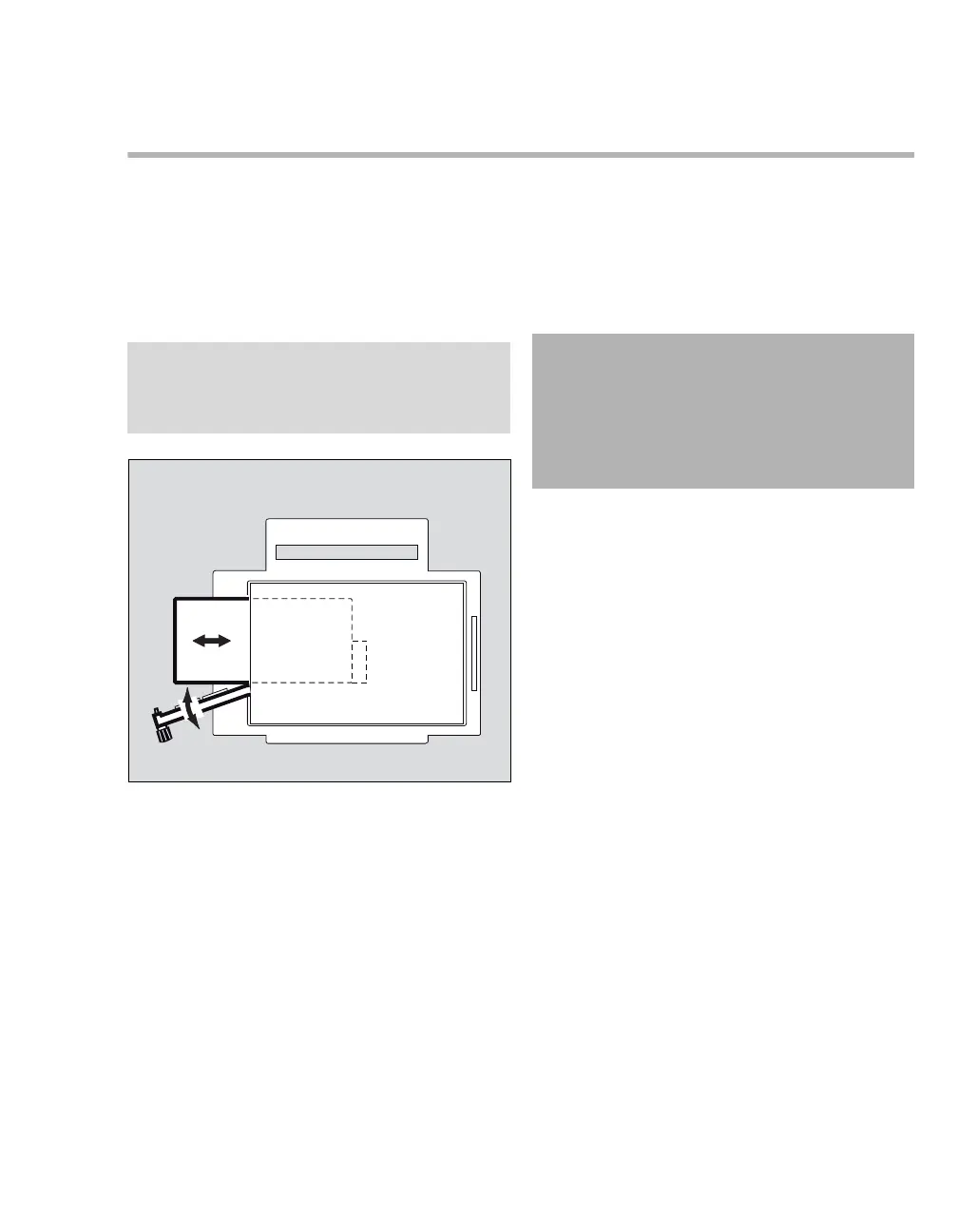

Internal rechargeable battery
Internal power is provided by means of a
removable rechargeable battery. For technical
information, refer to "Technical data" on page 139.
Removing the battery
1 Turn the knob (C) on the battery compartment
cover (B) counterclockwise to release the cover.
2 Open the battery cover.
3 Remove the battery (A) by pulling the
tab.
Checking the charge status of the
battery
 Press the button on the rechargeable battery.
The charge status is indicated by four LEDs.
Inserting the battery
1 Insert the battery into the battery compartment.
2 Close the battery cover.
3 Tighten the knob by turning it.
NOTE
Switch off Oxylog 3000 plus before inserting a new
battery. Otherwise, the battery may not be
detected and the LED indicator will light up red.
015
A
B
C
CAUTION
Oxylog 3000 plus will interrupt ventilation when
the battery is replaced while the device is
switched on and the external power supply is not
connected. Ventilation will resume with the last
set values approximately 3 seconds after insert-
ing a charged battery.
