Instructions for use Oxylog 3000 plus SW 1.n 43
Assembly
Connecting the reusable breathing circuit for adults
– Sterilize all reusable parts before every use.

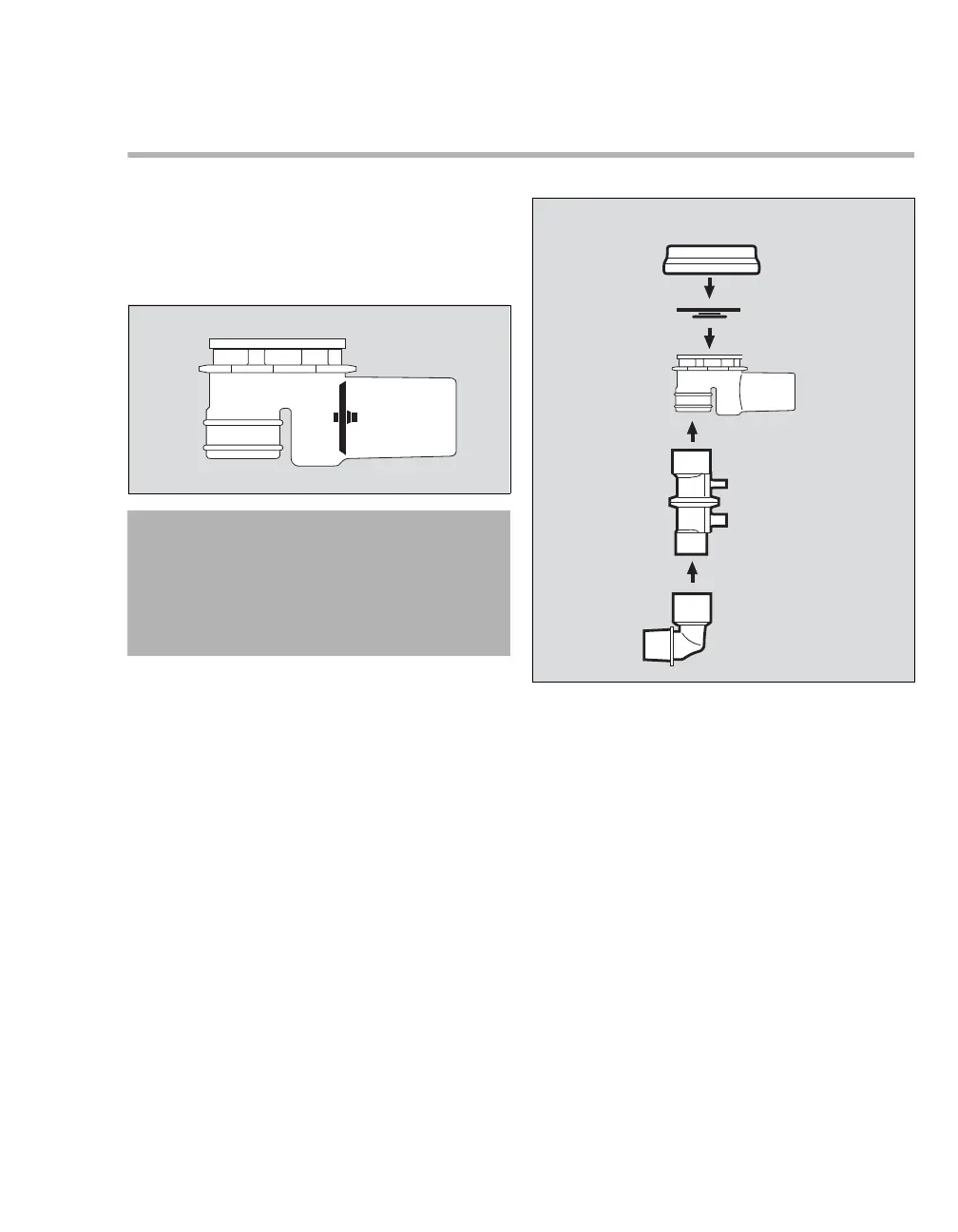

Assembling the breathing valve
1 Place the diaphragm (B) in the breathing valve
housing (C). Ensure that it is inserted correctly.
2 Fit the cover (A) and turn it approximately 60°
clockwise to secure into position (a click can be
felt).
3 Push the flow sensor (D) onto the breathing
valve (C). Note the correct alignment of the
parts by the groove in the flow sensor (D) and
the notch on the breathing valve (C).
4 Push the angled connector (E) onto the
flow sensor (D).
008
WARNING
Risk of CO2 rebreathing
The rubber disk (A) in the housing must not be
removed, damaged or bent, otherwise the
valve will work incorrectly and may endanger
the patient.
009
