Dynamic DX User Manual

MT
99

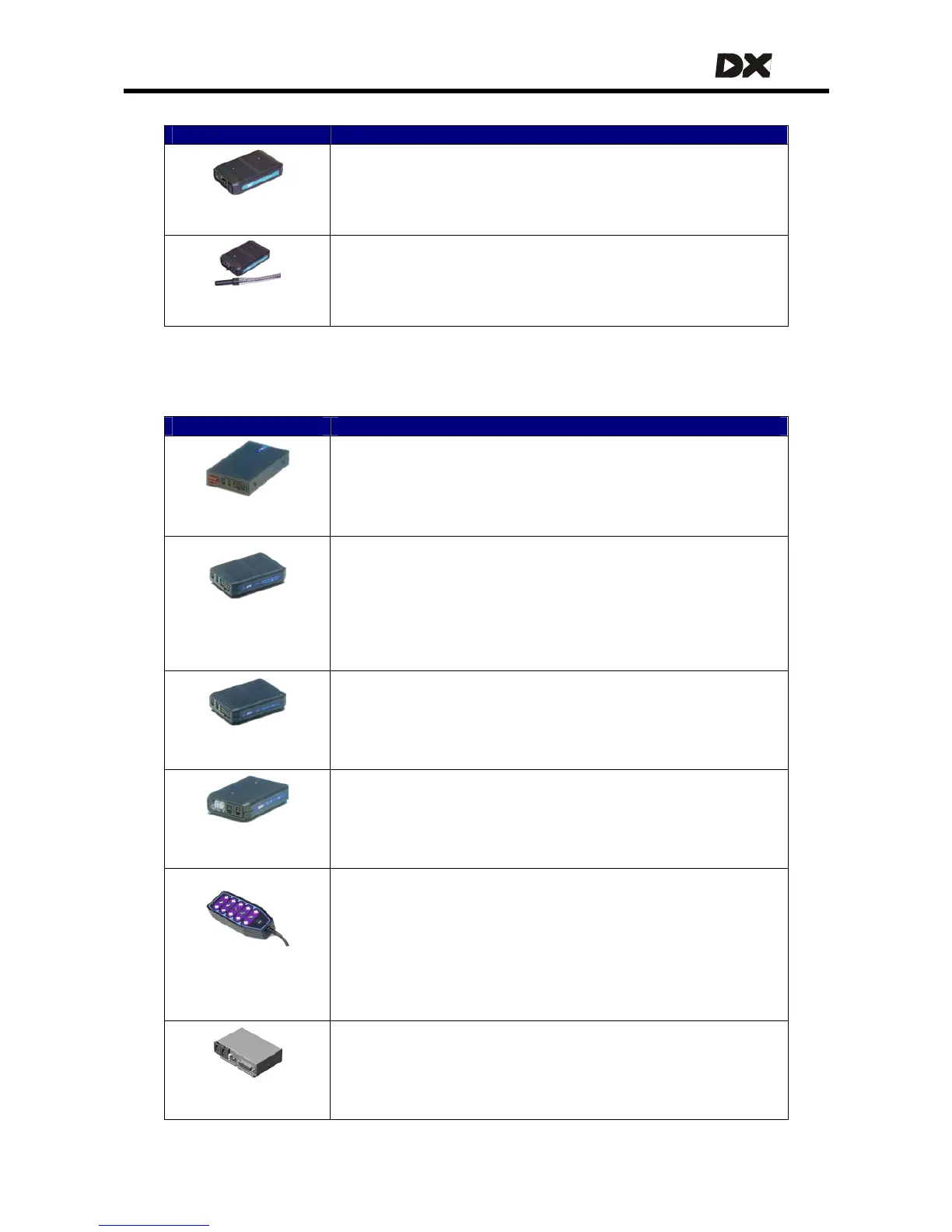

6.3 DX Steering/Actuator/Lighting Modules
DX Module Function / Applications
DX-SLM / DX-SLM-TUV
Servo Lighting Module
Drives a separate motor for steering castor wheels
Commonly used for high speed outdoor powerchairs
24V, 30A peak, 5A continuous Servo steering
24V lighting (DX-SLM) or 12V regulated lighting (DX-SLM-TUV)
DX-CLAMB
Combined Lighting
and Actuator Module
Compact module to connect all common functions:
• Five actuators
• Front lights, Rear lights
• Left and right turning indicators, Hazard lights
All power and control signals provided through the DX BUS
Soft Start feature provides smooth actuator control
Slow/Stop input (for actuator position switches)
DX-LM-Z / DX-LM-TUV
Lighting Module
24V lighting (DX-LM-Z)
12V regulated outputs for TÜV approved lighting (DX-LM-TUV)
• Front lights, Rear lights
• Left and right turning indicators, Hazard lights
Short-circuit and open-circuit detection
DX-TAM
Two Actuator Module
Simple and compact solution for two actuator control
All power and control signals provided through the DX BUS
Soft Start feature provides smooth actuator control
Slow/Stop input (for actuator position switches)
Programmable current limits and maximum operation time
DX-ARC5
Actuator Remote
Control
Separate handset for actuator control
Ideal for
• attendant use
• users who can not use the controls of the Master Remote
Controls up to 5 seat positioning actuators
Actuators can optionally be operated while driving
Can be programmed to control horn, lights and driving
Needs DX-CLAMB or DX-TAM to operate
DX-ARC-SWB
ARC Switchbox
Controls up to 5 seat positioning actuators
Can be programmed to control horn, lights and driving
Operates with external switches (DB15 connector)
Choose switch combinations and mounting positions freely
One extra 24V/1A power supply output
Secondary Remote Applications
Five switch inputs plus extra 'Emergency Stop' input
Accepts input devices terminated in a '9-pin D' connector
Analog Latch mode gives infinitely adjustable cruise speed
DX-5SW
3 momentary modes, 4 latched modes
5 Switch Module
Recognises soft and hard sips and puffs
Sip and puff pressures programmable
Analog Latch mode gives infinitely adjustable cruise speed
DX-SNP
3 momentary modes, 4 latched modes
Sip and Puff Module
