Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Repair Work Overview 220
Confidential
6.1 Repair Work Overview
6.1.1 Tools
The following tools and jigs are required for repairing the printer.
 Tools

Jigs
Note 1 : Some of the tools listed above are commercially available.
2 : EPSON provides the tools listed with EPSON part code
6.1.2 Definition of Orientation of the Printer
Throughout this manual, orientation descriptions shown below are used.

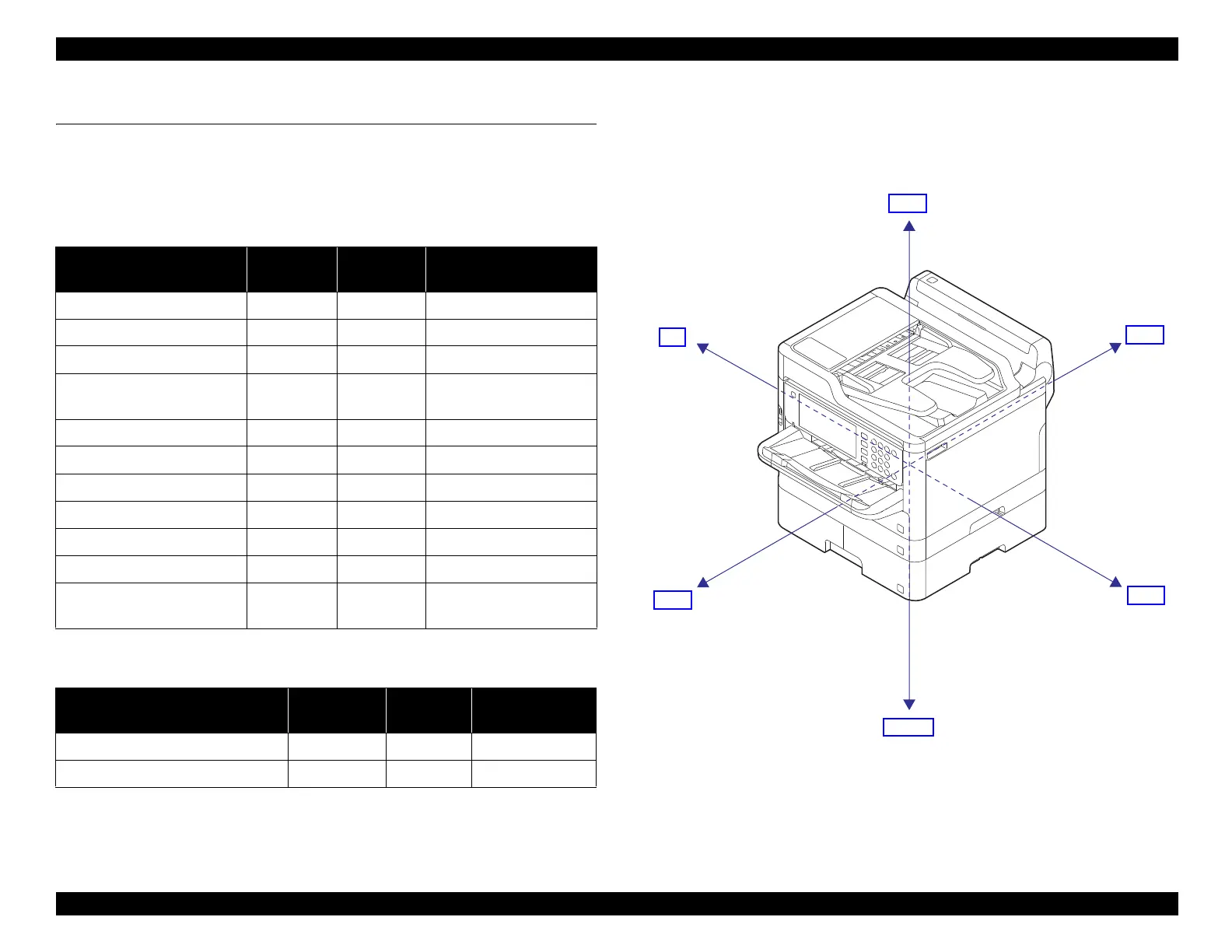

Figure 6-1. Definition of Orientation of the Printer
Name Availability
EPSON
Part Code
Remarks
(+) Phillips screwdriver #1 O 1080530
(+) Phillips screwdriver #2 O ---
Flathead screwdriver O ---
Flathead Precision
screwdriver
O---
Torque screwdriver O ---
Tweezers O ---
Longnose pliers O ---
Cleaning stick O 1709718
Acetate tape O 1003963
Tube Clip O 1716139
Tape O --- Secure the cover open
sensor (adjustment)
Name Availability
EPSON
Part Code
Remarks
LEAK TESTER SHEET FRONT --- 1684353
LEAK TESTER SHEET REAR --- 1684354
Right
Left
Top
Rear
Front
Bottom

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
